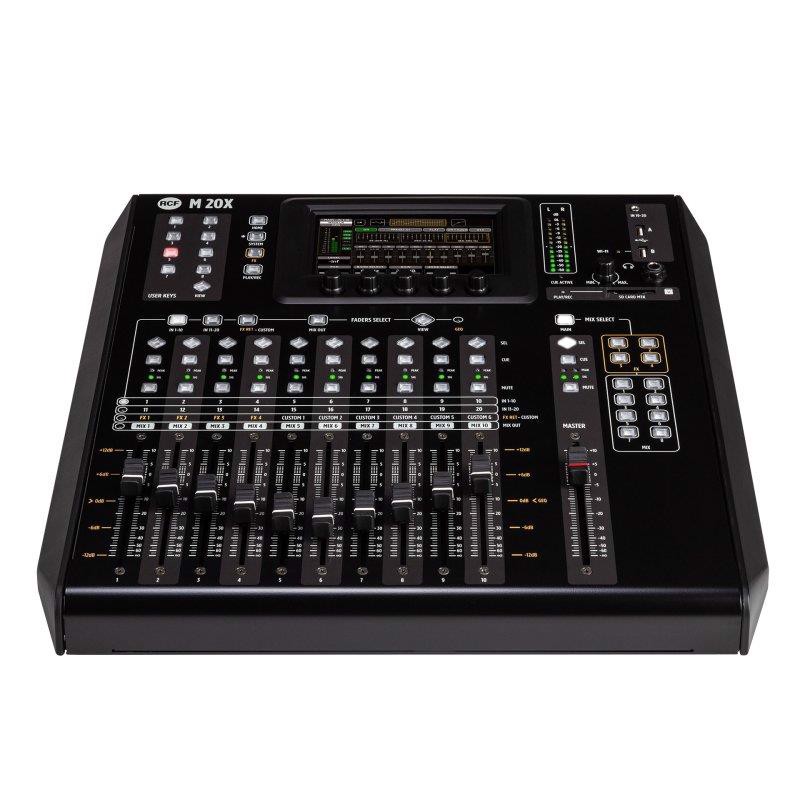

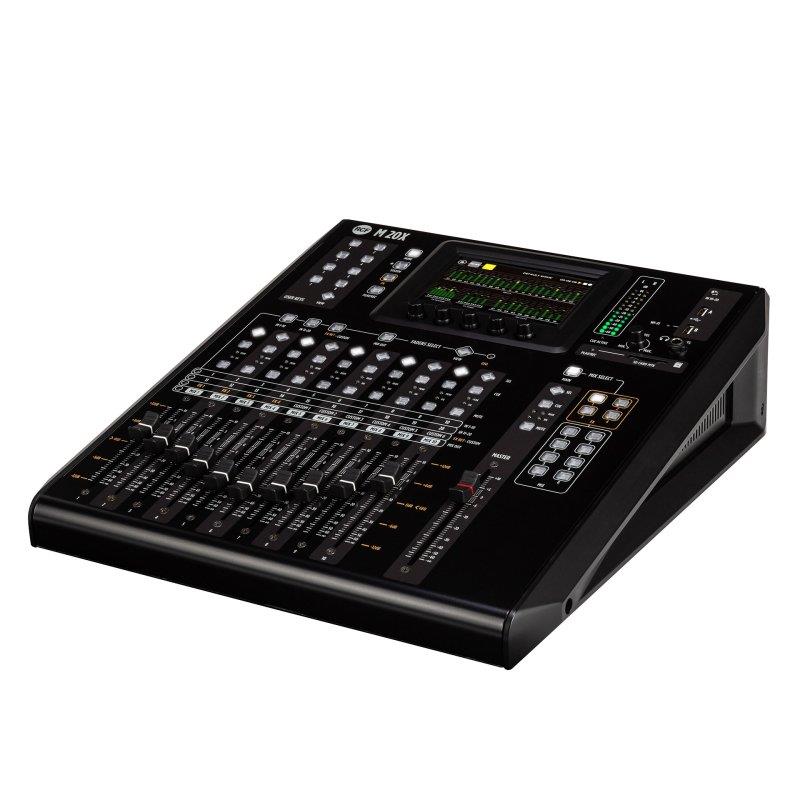

RCF M-20X Digital mixer
M 20X er en mixer med 16 fjernbetjente forforstærkere og 11 motoriserede fadere.
På trods af sine dimensioner indeholder M 20X en hel række funktioner, såsom højprofilerede forforstærkere, DSP i topklasse med behandling i studiekvalitet, WiFi-fjernbetjening og et omfattende sæt multitrack-optagelses- og afspilningsfunktioner.
Mixeren har i alt 20 analoge indgange og 14 udgangskanaler (balancerede analoge udgange og AES/EBU digitaludgange)
20 analog inputs, 16 mic preamps and 4 line inputs
12 balanced outputs + phones
20-tracks sd card play/rec
24 x 24 CH USB Audio Interface (24-bit/48 kHz)
11 motorized Faders
Smooth User Interface with 5” Touchscreen
AES Digital Output

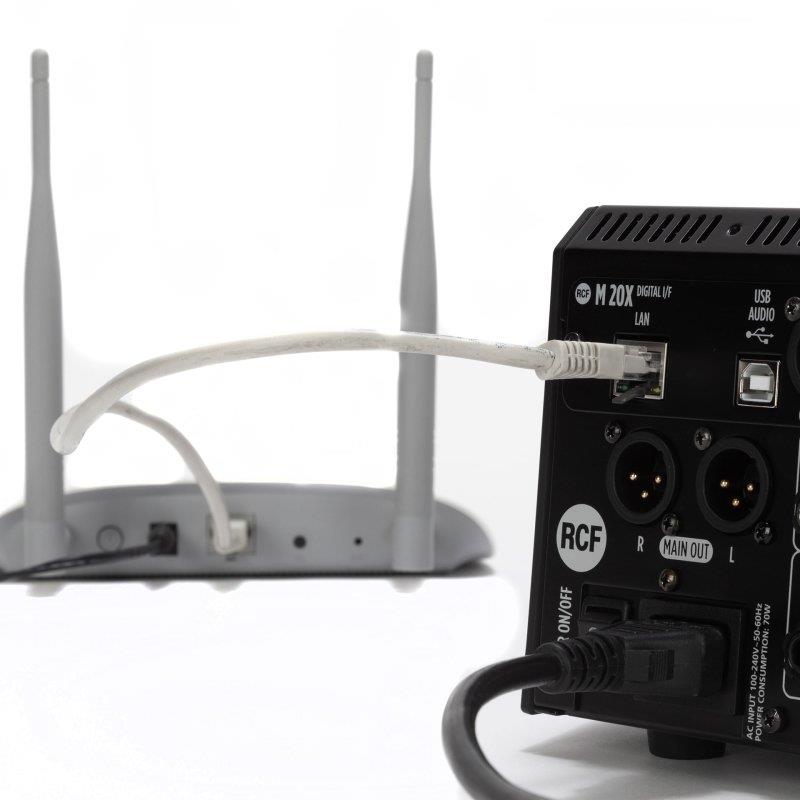

LAN / WiFi Remote Control
Electronic specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz
THD+N, 0DB GAIN, 0DBU OUT:
DYNAMC RANGE, ANALOG TO ANALOG:
109 dB A-Weighted
RESIDUAL NOISE LEVEL, MAIN OUT, MUTED:
-85 dBu A-Weighted
Inputs
MIC (BALANCED XLR):
8
REMOTE CONTROLLED STORABLE GAIN:
Yes
GAIN RANGE:
0 dB ÷ 60 dB
MIC INPUT IMPEDANCE:
3.3 kohm
MAXIMUM INPUT LEVEL:
18 dBu
PHANTOM POWER +48V:
Yes
MIC/LINE (XLR/TRS COMBO):
8
REMOTE CONTROLLED STORABLE GAIN:
Yes
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
GAIN RANGE:
0 dB ÷ 60 dB
MIC INPUTS IMPEDANCE (XLR):
3.3 kohm
LINE INPUTS IMPEDANCE (TRS):
12.8 kohm
MAXIMUM INPUT LEVEL (XLR):
18 dBu
MAXIMUM INPUT LEVEL (TRS):
29 dBu
PHANTOM POWER +48V:
Yes
BALANCED LINE (1/4 TRS):
2
GAIN RANGE:
0 dB ÷ dB
LINE INPUTS IMPEDANCE (TRS):
18 kohm
MAXIMUM INPUT LEVEL (TRS):
18 dBu
STEREO LINE (3,5MM JACK):
1
GAIN RANGE:
0 dB ÷ dB
LINE INPUTS IMPEDANCE (TRS):
15 kohm
MAXIMUM INPUT LEVEL (TRS):
18 dBu

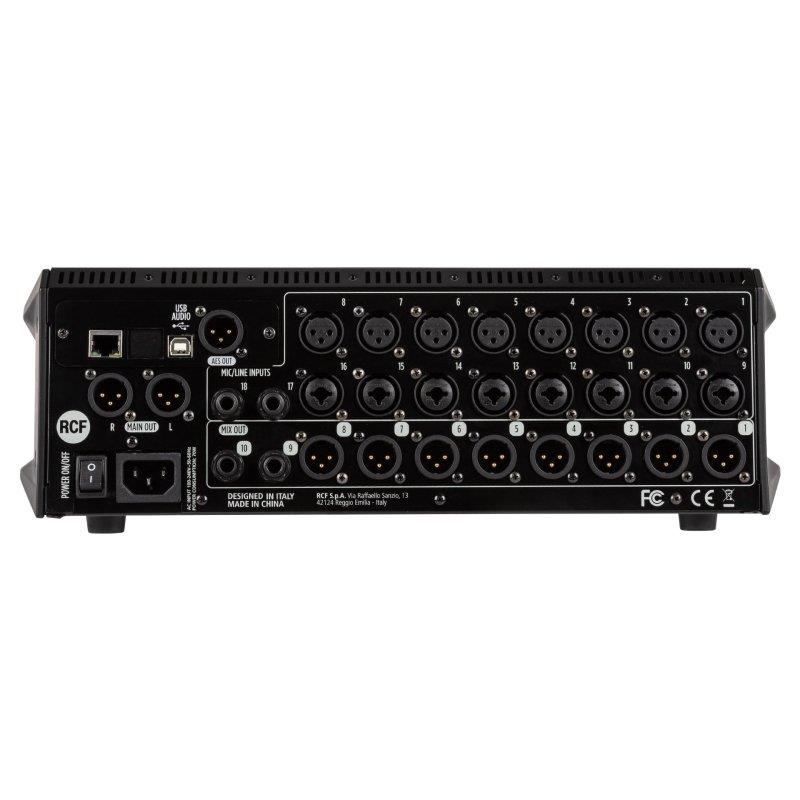

Outputs
MAIN OUT (BALANCED XLR):
2
OUTPUT IMPEDANCE:
50 ohm
MAXIMUM OUTPUT LEVEL:
24 dBu
MIX OUT (BALANCED XLR):
8
MIX OUT (1/4 TRS):
2
OUTPUT IMPEDANCE:
150 ohm
MAXIMUM OUTPUT LEVEL:
24 dBu
PHONES (6,8MM JACK STEREO LINE):
1
OUTPUT IMPEDANCE:
50 ohm
MAXIMUM OUTPUT LEVEL:
18 dBu
AES3 (XLR):
1
Processing
SIGNAL PROCESSING:
32 Bit Floating Point
HEADROOM:
20 dB
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
BUSS:
16
Input processing
SOURCE SELECTOR:
Yes
POLARITY:
Yes
HIGH PASS FILTER:
Yes
DELAY:
100 ms
GATE:
with Gain Reduction meter
PEQ:
4 Band
COMPRESSOR / DE-ESSER ON INPUTS:
1 ÷ 16 (with Gain Reduction meter)
Output processing
DELAY:
250 ms
GEQ:
30 Band
PEQ:
8 Band
COMPRESSOR / LIMITER:
with Gain Reduction meter
MIX OUT:
[1 ÷ 8]
DELAY:
250 ms
PEQ:
8 Band
COMPRESSOR / LIMITER:
with Gain Reduction meter
REAL TIME ANALYZER:
Yes
DELAY:
250 ms
Effects
INTERNAL FX:
4
FX1:
Reverb (Hall, Room, Plate, Ambience)
FX2:
Reverb (Hall, Room, Plate, Ambience)
FX3:
Delay (Stereo, Modern, Vintage, Dual, ER)
FX4:
Modulation (Chorus, Flanger, Tremolo)
Multitrack
SD MULTITRACK FORMAT:
WAV, 24Bit, 48.0kHz
NUMBER OF TRACKS:
20
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
RECORDING:
20 Channels
PLAYBACK:
20 Channels
USB AUDIO INTERFACE FORMAT:
WAV, 24Bit, 48.0kHz
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
UPSTREAM:
24 Channels
DOWNSTREAM:
24 Channels
USB drive play/rec
USB DRIVE RECORDING:
2 Channels @ WAV, 24Bit, 48.0kHz
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
A/D-D/A CONVERSION:
16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz
USB DRIVE PLAYBACK:
2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz
Control interfaces
LAN PORT:
1000-BaseTX for remote control
DESCRIPTION:
MIDI interface, WiFi dongle (must be en
USB PORTS:
2 Type A
Electrical specifications
POWER SUPPLY:
Internal
VOLTAGE REQUIREMENTS:
100 V - 240 V
POWER CONSUMPTION (MAX) (W):
70 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
Size
WEIGHT:
7.9 kg / 17.42 lbs
WIDTH:
388 mm / 15.28 inches
HEIGHT:
131 mm / 5.16 inches
DEPTH:
428 mm / 16.85 inches
Shipping informations
PACKAGE HEIGHT:
215 mm / 8.46 inches
PACKAGE WEIGHT:
9 kg / 19.84 lbs
PACKAGE DEPTH:
506 mm / 19.92 inches
PACKAGE WIDTH:
580 mm / 22.83 inches
