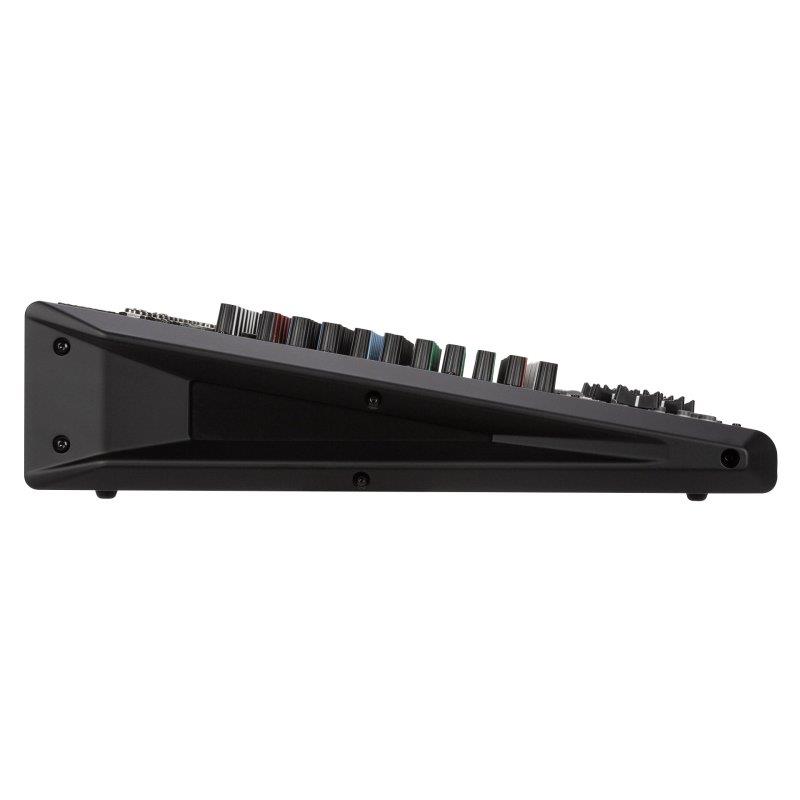

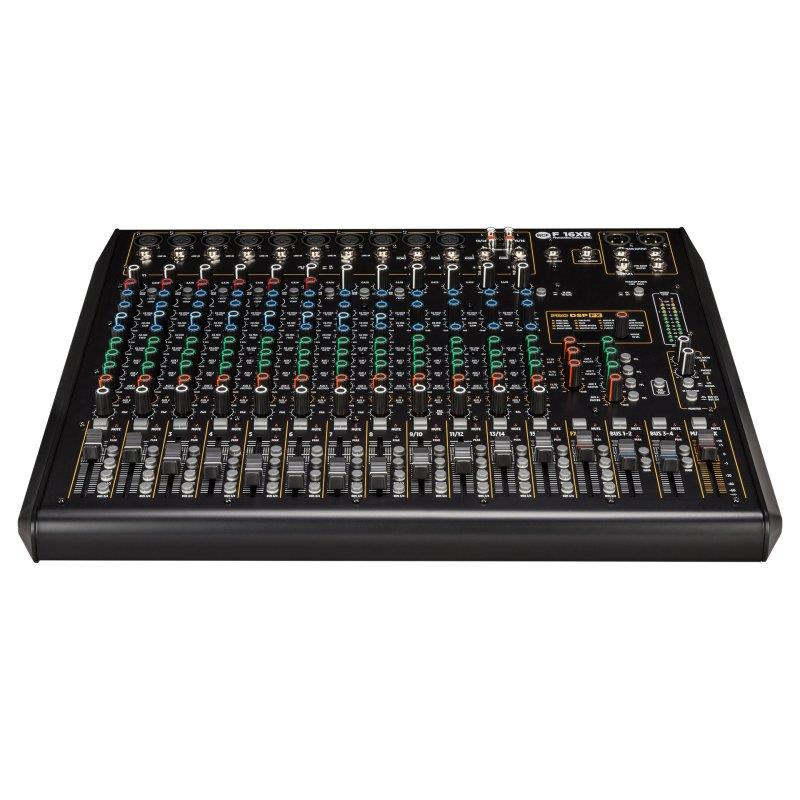

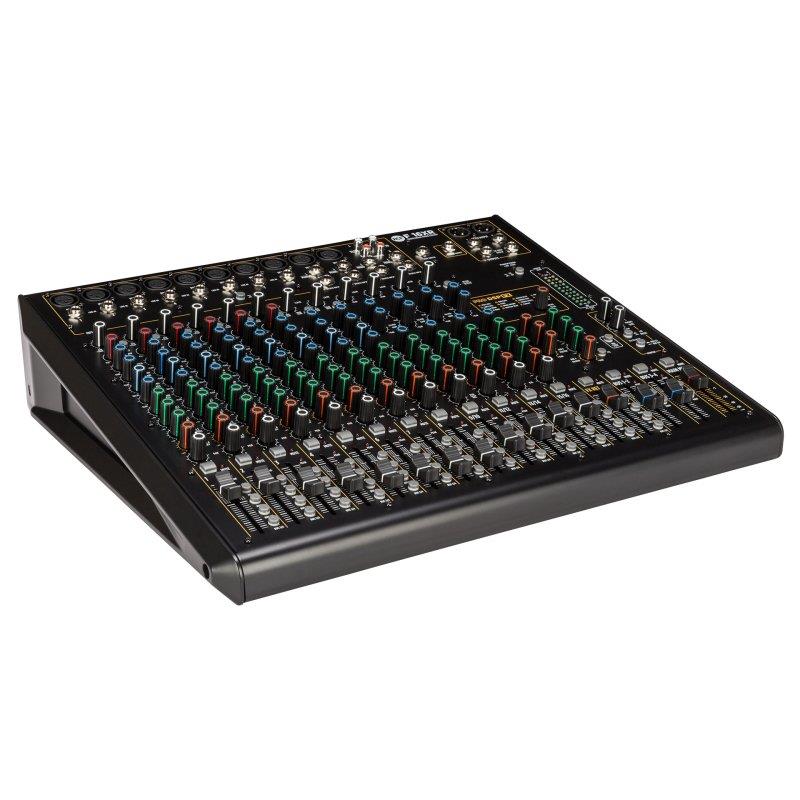

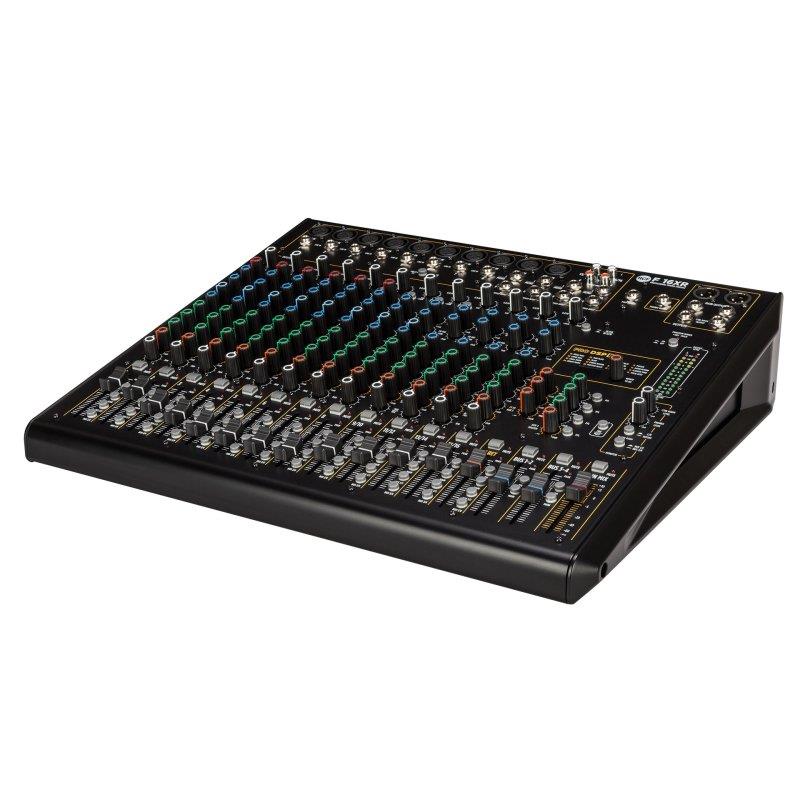

RCF F 16XR livemixer
F 16XR er en 16 kanals live mixer med 60 mm fader.
10 mikrofon pream-indgange, 4 mono line-indgange, samt 4 stereoinput-indgange.
Mulighed for optagelse eller afspilning via USB-port.
Balancerede udgange (Stereo XLR + TRS) og 6 enkeltkontrolkompressorer.
Monokanalerne er forsynet med 3-bånds EQ, med valgbar midfrekvens og 3-bånd til stereokanaler.
Mixeren har 16 PRO DSP interne forudindstillinger, to stereoudgangs-busser og 4 aux-sendinger (2 præ, 1 for / post, 1 indlæg).
-10 Mic preamp-indgange, 4 mono line-indgange
-4 Stereoledning-indgange
-PRO DSP FX om bord med 16 forudindstillinger
-Stereo-optagelse og afspilning via USB-port
-6 enkeltkontrolkompressorer
-Balanceret hovedudgang +28 dB (Stereo XLR + TRS)
-Two stereo output-busser og 4 aux sends (2 præ, 1 for / post, 1 indlæg)
-60 mm faders
-Intern strømforsyning
-Designet og konstrueret i Italien
TECHNICAL SPECIFICATIONS
Electronic specifications Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out Inputs Mic: 10
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 8
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 14 kohm

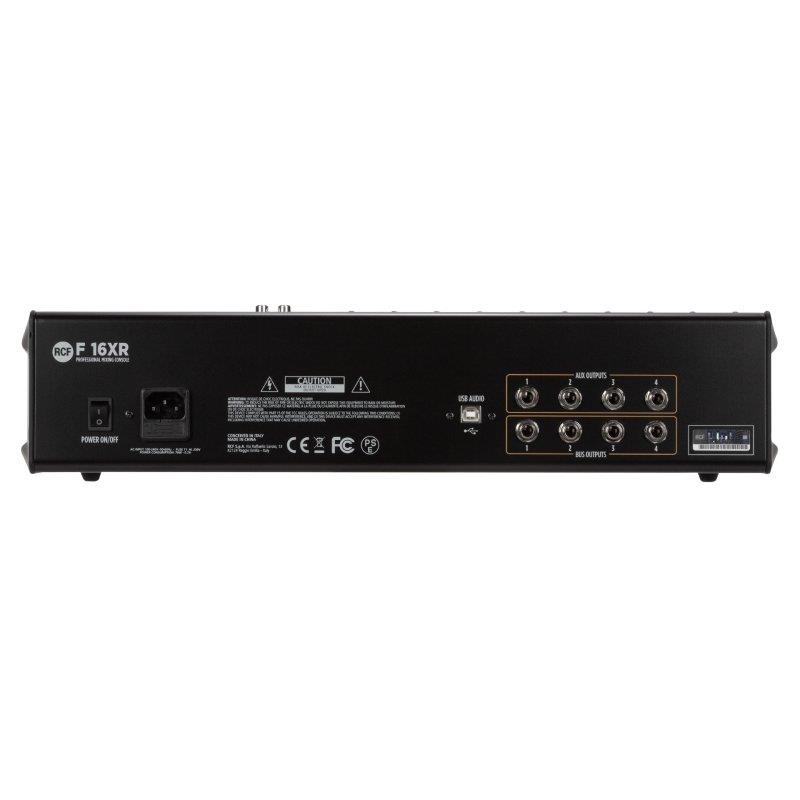

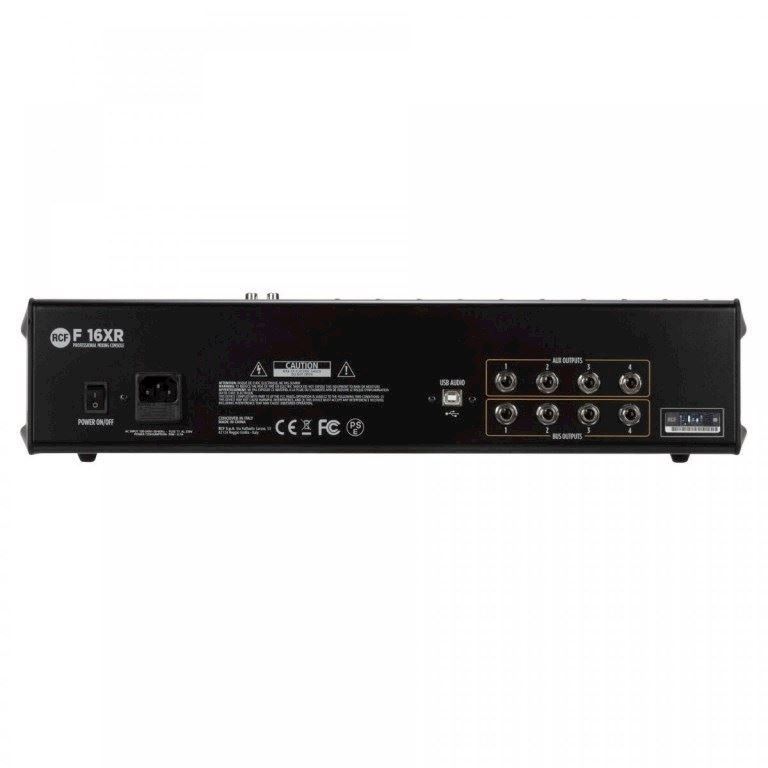

Outputs Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Send: 3
AUX Output: 4
Group Out: 4
Phones: 1
Outputs specifications Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Group Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Phones Out Level: 10 dBm
Compressors RCF Compressors: n°6 Single Control Compressors on
Channels 1 to 6
EQ Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description: High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ Freq. sel. from 100Hz to
8kHz - Bell
Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends AUX: 2 PRE / 1 PRE/POST
FX POST: 1
Internal Effects Send Effects: 1
USB audio Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0
Other features Footswitch: Yes
Electrical specifications Power supply: Internal
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 30 W
Standard compliance CE marking: Yes
Physical specifications Cabinet/Case Material: Metal
Color: Black
Size Height: 107 mm
Width: 479 mm
Depth: 406 mm
Weight: 6.4 kg
Shipping informations Package Height: 150 mm
Package Width: 453 mm
Package Depth: 523 mm
Package Weight: 7.4 kg
