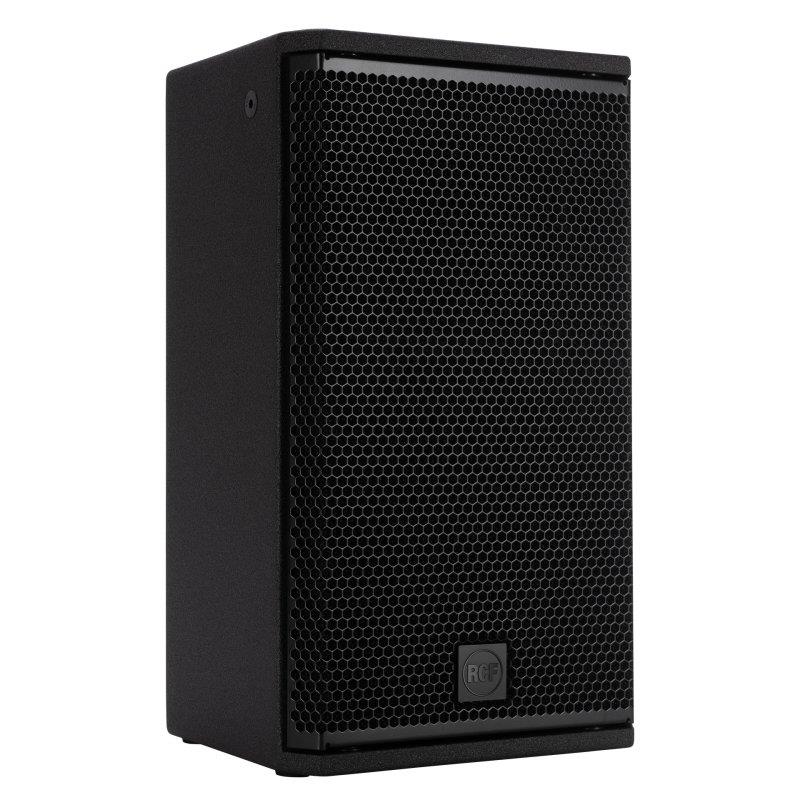

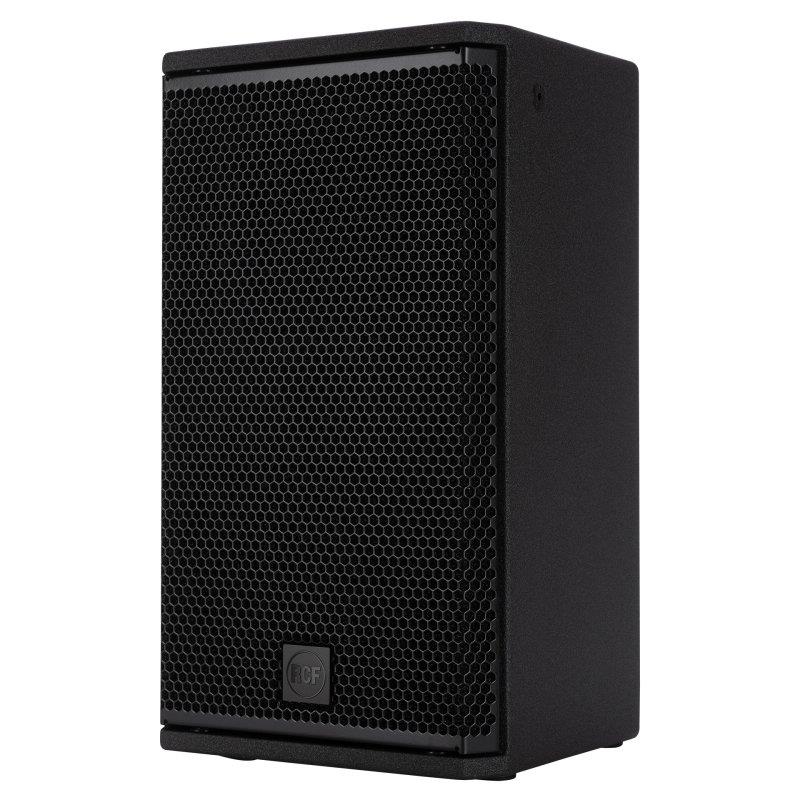

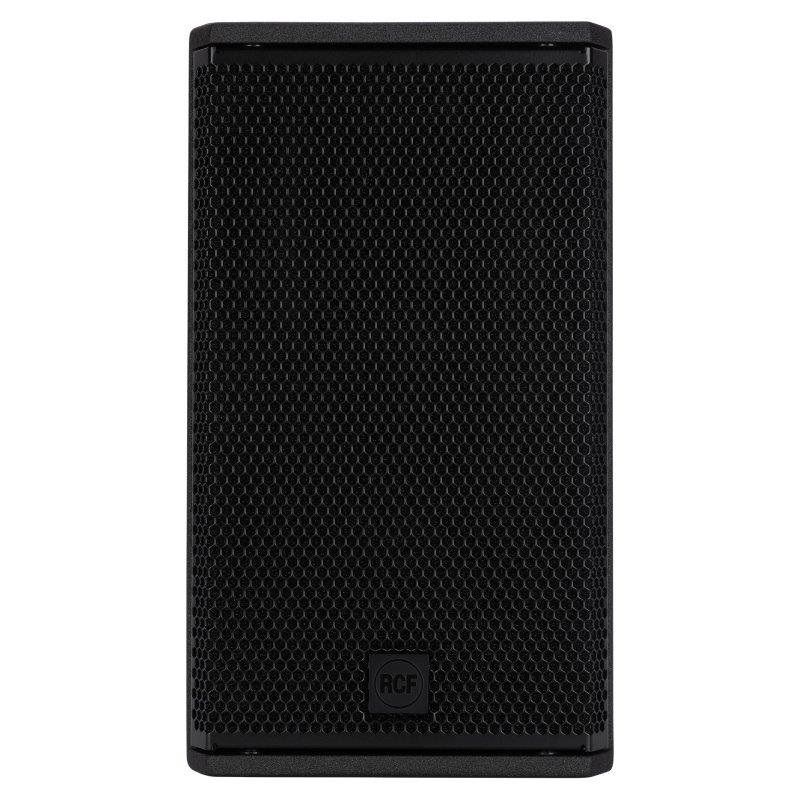

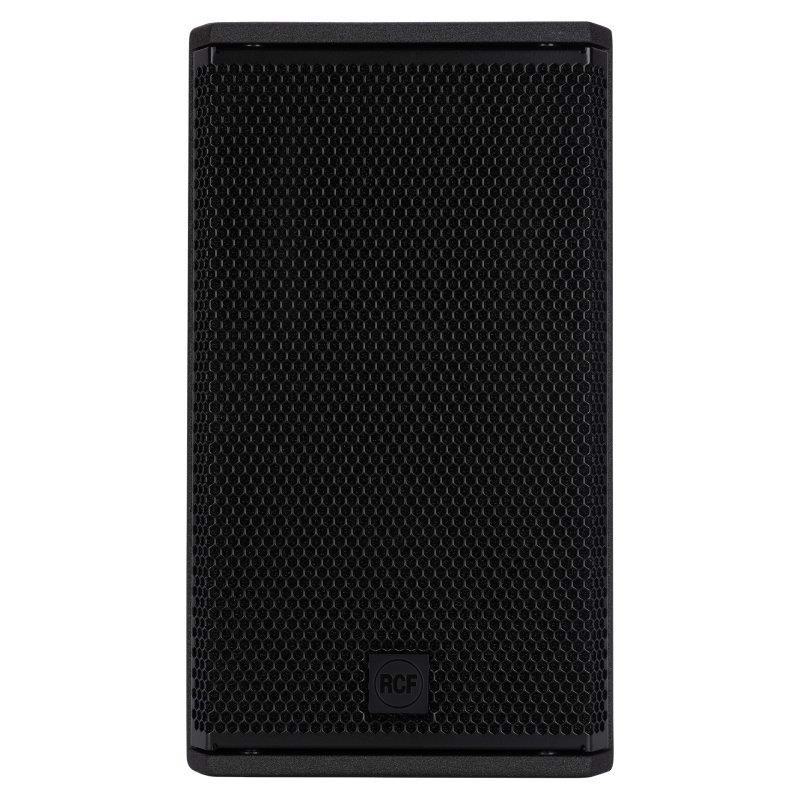

RCF NX910-A aktiv højttaler
NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Built specifically for demanding live sound applications, it also features multiple rigging points for fixed installation. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
50-20000 Hz linear frequency response
1.75" Compression Driver
10" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
Acoustical specifications
FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 130 dB
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 60°
Transducers
COMPRESSION DRIVER: 1 x 1.0'', 1.75'' v.c
WOOFER: 10'', 2.5'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 1600 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Linear, Boost, Stage, Volume
Power section
TOTAL POWER: 2100 W Peak
HIGH FREQUENCIES: 700 W Peak
LOW FREQUENCIES: 1400 W Peak
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: Plywood
HARDWARE: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rea
HANDLES: 1 Top
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 510 mm
WIDTH: 295 mm
DEPTH: 333 mm / 13.11 inches
WEIGHT: 16.4 kg
Shipping informations
PACKAGE HEIGHT: 556 mm
PACKAGE WIDTH: 388 mm
PACKAGE DEPTH: 348 mm
PACKAGE WEIGHT: 18.1 kg
