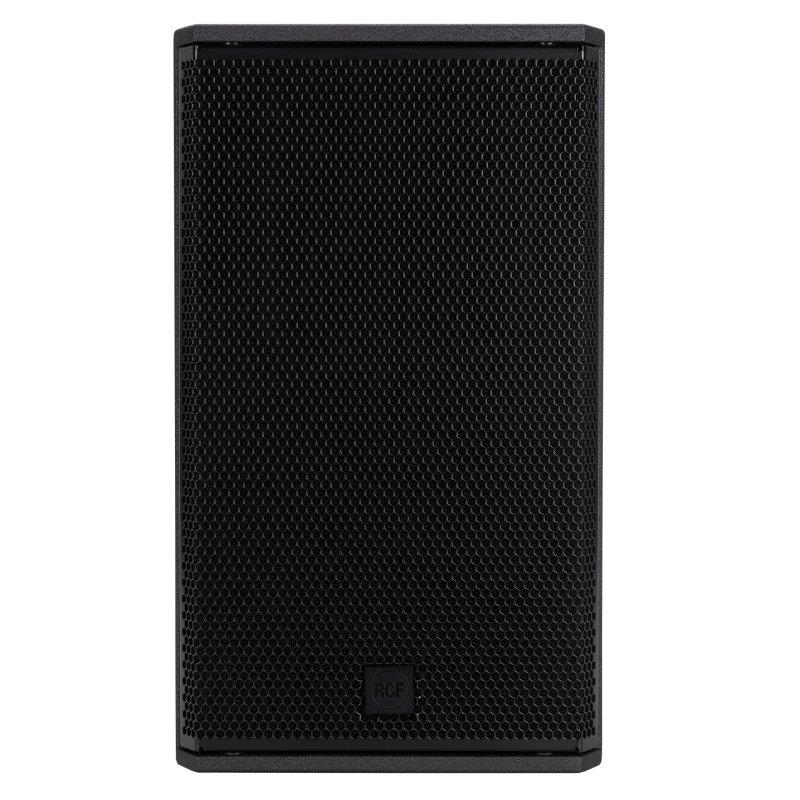

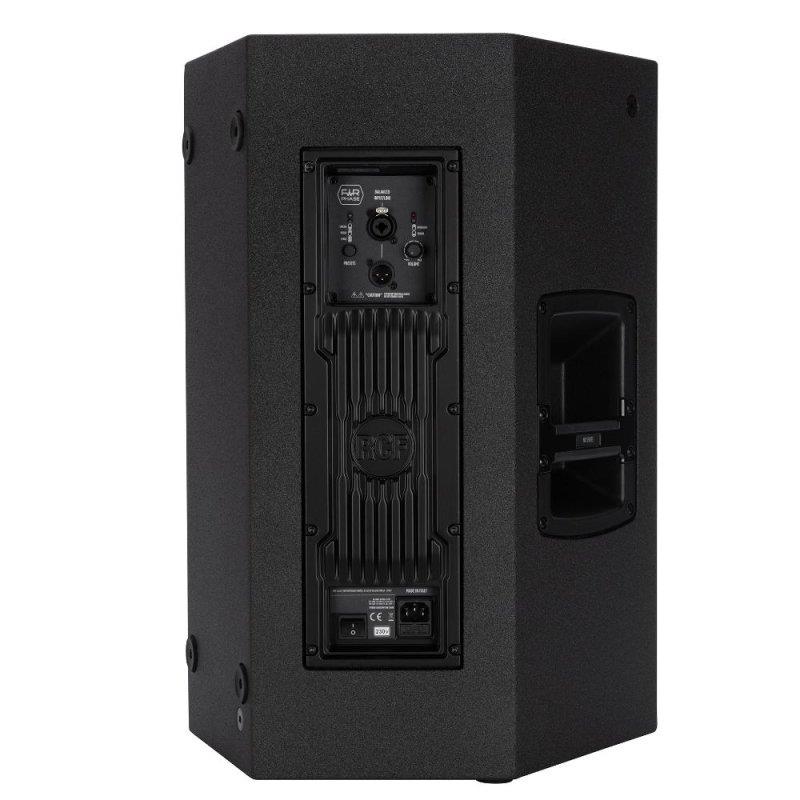

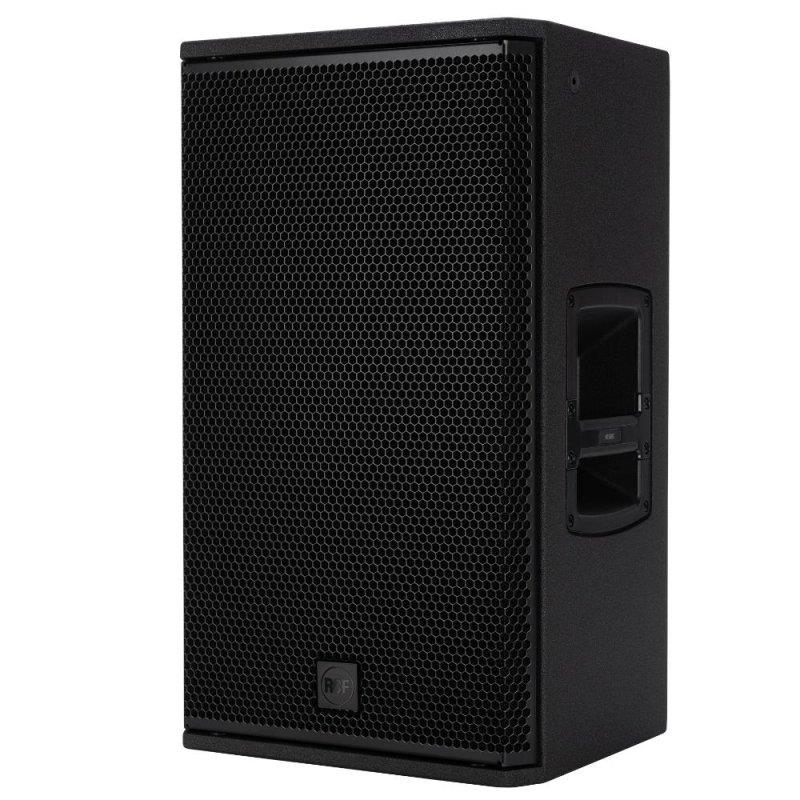

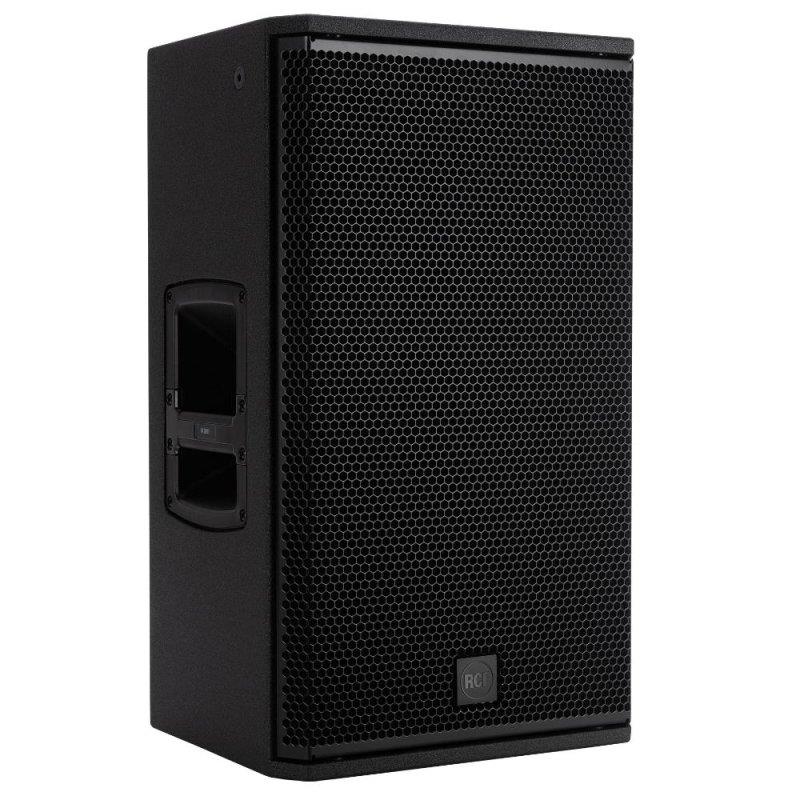

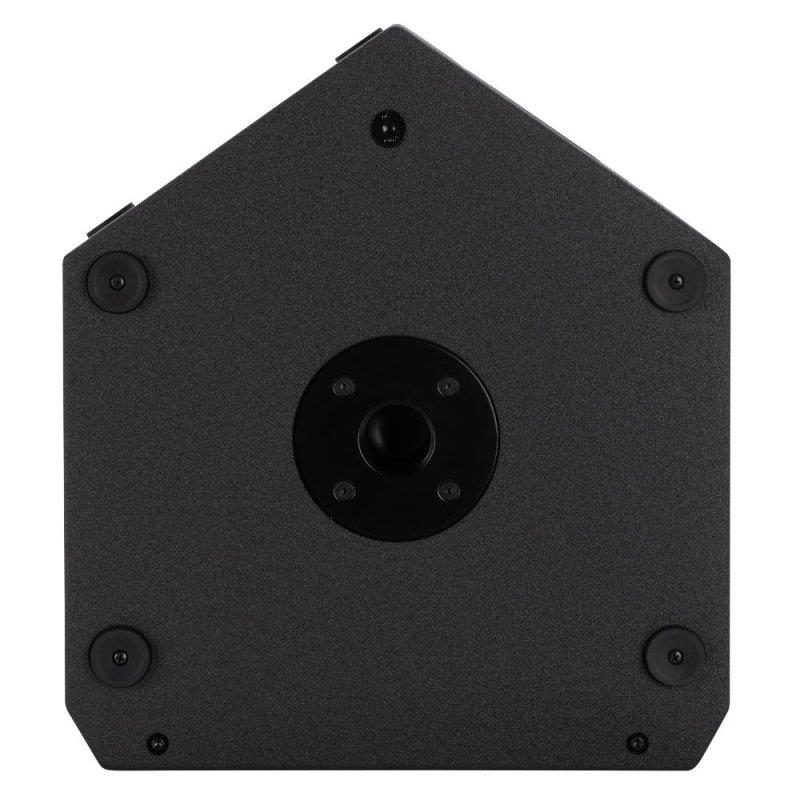

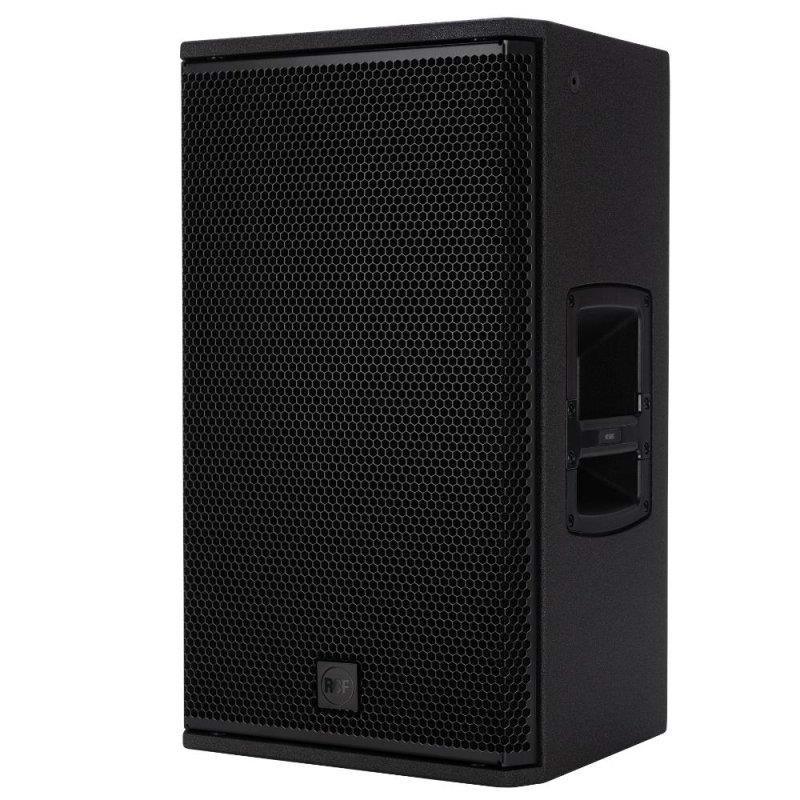

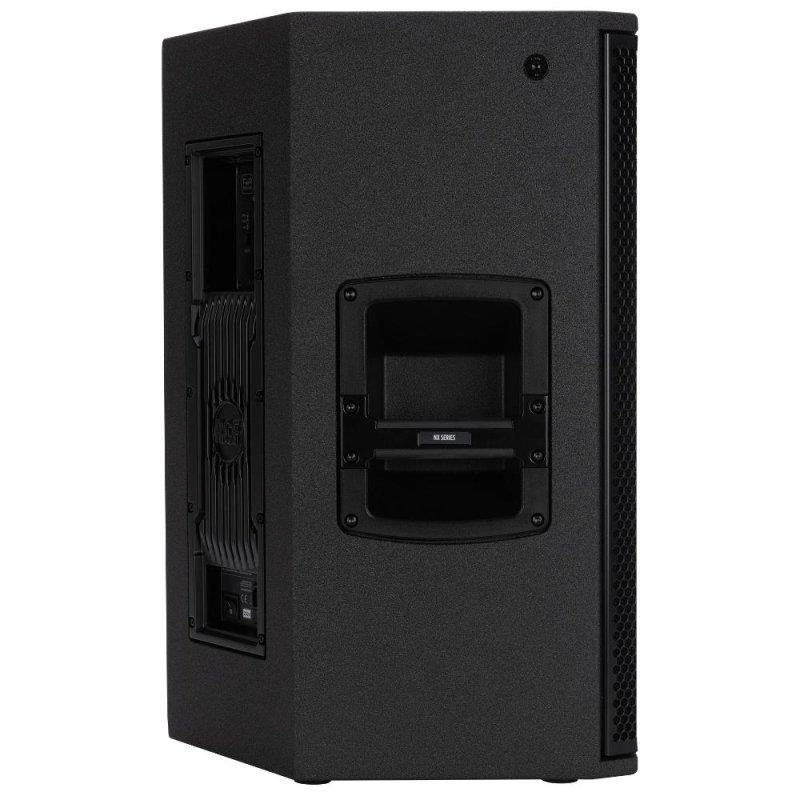

RCF NX912-A aktiv højttaler
NX 912-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 912-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.Up to 130 dB Sound Pressure Level
Up to 130 dB Sound Pressure Level
2100W Class-D Bi-Amplification
50-20000 Hz linear frequency response
1.75" Compression Driver
12" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management
Acoustical specifications
FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 130 dB
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 60°
Transducers
COMPRESSION DRIVER: 1 x 1.0'', 1.75'' v.c
WOOFER: 12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES: 1600 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Linear, Boost, Stage, Volume
Power section
TOTAL POWER: 2100 W Peak
HIGH FREQUENCIES: 700 W Peak
LOW FREQUENCIES: 1400 W Peak
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: Plywood
HARDWARE: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rea
HANDLES: 1 Top
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
Height: 620 mm / 24.41 inches
Width: 362 mm / 14.25 inches
Depth: 405 mm / 15.94 inches
Weight: 20.8 kg / 45.86 lbs
Shipping informations
Package Height: 666 mm / 26.22 inches
Package Width: 461 mm / 18.15 inches
Package Depth: 416 mm / 16.38 inches
Package Weight: 22.8 kg / 50.27 lbs
