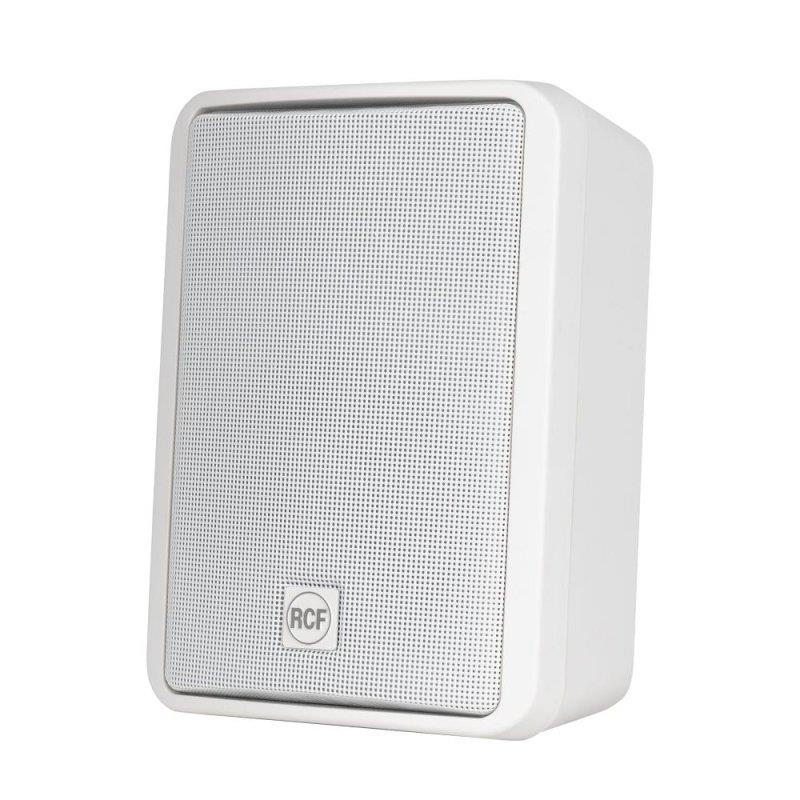

RCF MR40T væg højttaler til inden- og udendørs installation
MR 40T er en basrefleks 2-vejs højttaler designet til at levere kompromisløs lydydelse og høj pålidelighed i faste installationer.
Flot lydbillede i ethvert miljø og lever dyb bas, jævn mellemtone og fint detaljeret højfrekvensrespons.
Kvalitetskomponenter og omhyggeligt akustisk design gør MR 40T til den perfekte højttaler til at lytte i de mest krævende applikationer.
Velegnet til indendørs og udendørs installation IP55.
40 W (8 ohm) power handling
108 dB max SPL
70 ÷ 20000 Hz frequency range
110° x 100° coverage angles

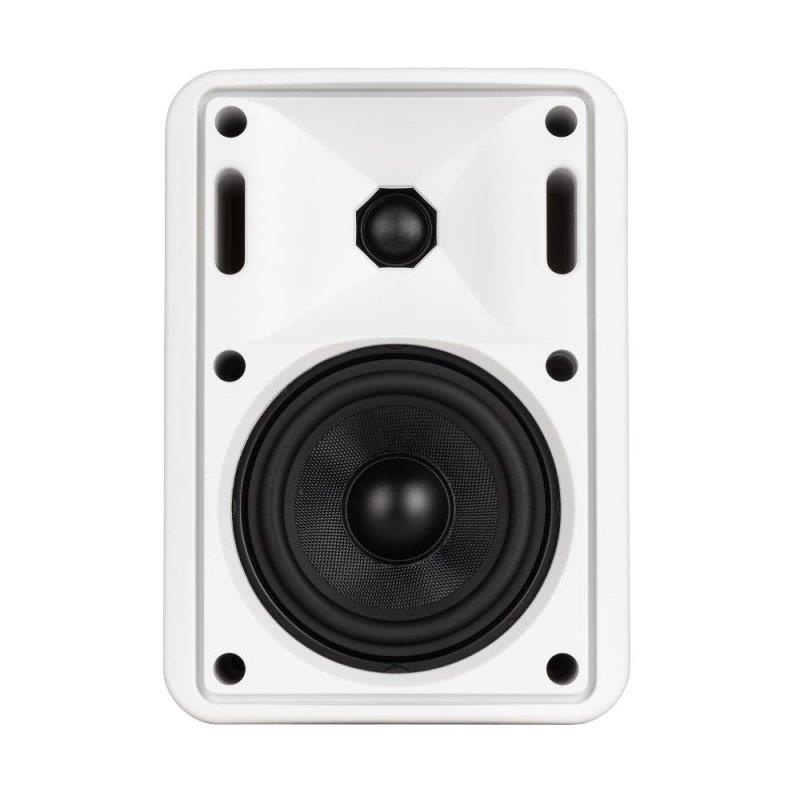

1 x 4" woofer (1’’ v.c.)
1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
Colour black RAL 9005 and white RAL 9003
IP 55 protection grade

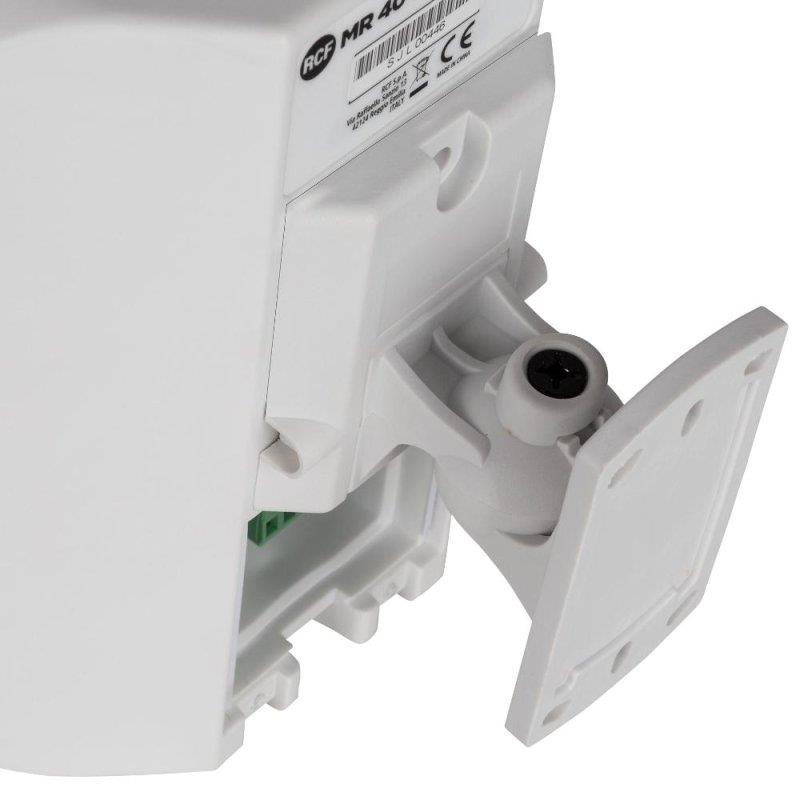

Swivel Wall mount accessory included

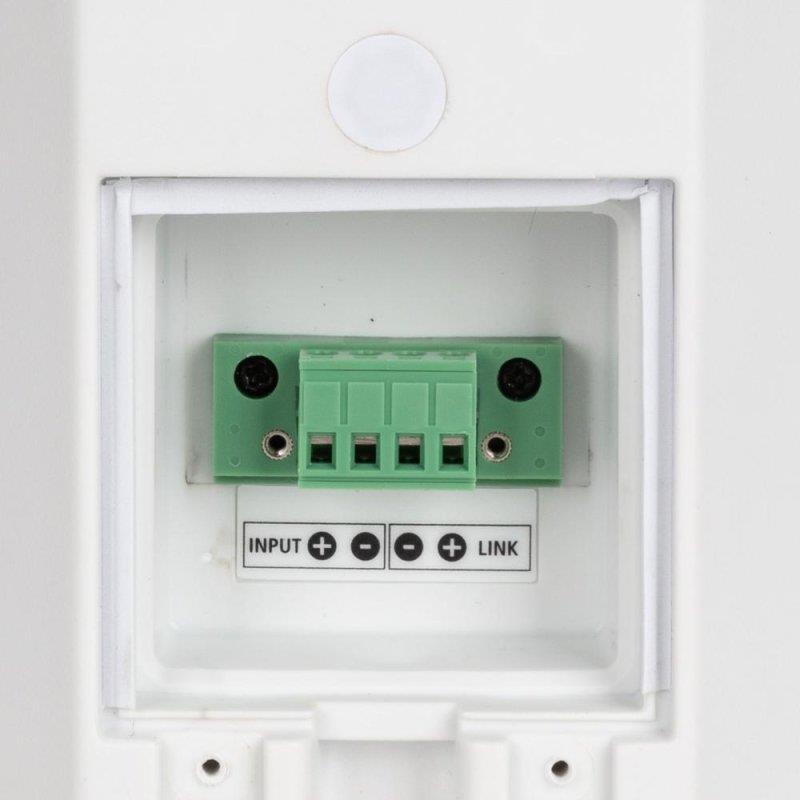

4 pole EUROBLOCK connector
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
Max SPL @ 1m: 108 dB
Horizontal coverage angle: 110°
Vertical coverage angle: 100°
Directivity index Q: 7
System Sensitivity: 86 dB
Power section Nominal Impedance: 8 ohm
Power Handling: 40 W
Peak Power Handling: 160 W PEAK
Recommended Amplifier: 80 W
Protections: Bulb lamp
Crossover Frequencies: 3000 Hz
Transducers Dome Tweeter: 1.0'' neo, 0.8'' v.c
Woofer: 4.0'', 1.0'' v.c
Input/Output section
Input connectors: Euroblock
Output connectors: Euroblock
Constant Voltage Transformer: 70/100 V
Power selection 1: 20 W - 500 ohm
Power selection 2: 10 W - 1000 ohm
Power selection 3: 5 W - 2000 ohm
Power selection 4: 2.5 W - 4000 ohm
Standard compliance IP protection grade: IP 55
Safety agency: CE compliant
Physical specifications Cabinet/Case Material: Plastic
Hardware:
Wall mount bracket
Grille: Steel
Color: Black - RAL 9005, White - RAL 9003
Size Height: 216 mm / 8.5 inches
Width: 154 mm / 6.06 inches
Depth: 135 mm / 5.31 inches
Weight: 2.3 kg / 5.07 lbs
Shipping informations Package
Height: 285 mm / 11.22 inches
Package Width: 400 mm / 15.75 inches
Package Depth: 235 mm / 9.25 inches
Package Weight: 5.5 kg / 12.13 lbs
