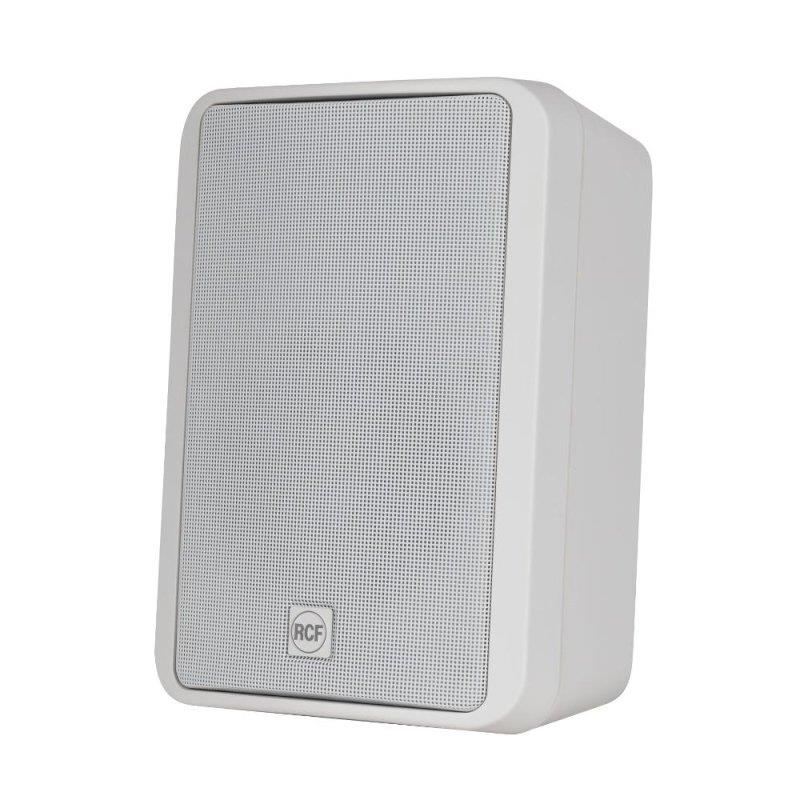

RCF MR50T væg højttaler til inden- og udendørs installation
MR 50T er en basrefleks 2-vejs højttaler designet til at levere kompromisløs lydydelse og høj pålidelighed i faste installationer.
Flot lydbillede i ethvert miljø og lever dyb bas, jævn mellemtone og fint detaljeret højfrekvensrespons.
Kvalitetskomponenter og omhyggeligt akustisk design gør MR 50T til den perfekte højttaler til at lytte i de mest krævende applikationer.
Velegnet til indendørs og udendørs installation IP55.
60 W (8 ohm) / 40 W - 20 W - 10 W - 5 W (70/100V) power handling
110 dB max SPL
60 ÷ 20000 Hz frequency range
110° x 100° coverage angles

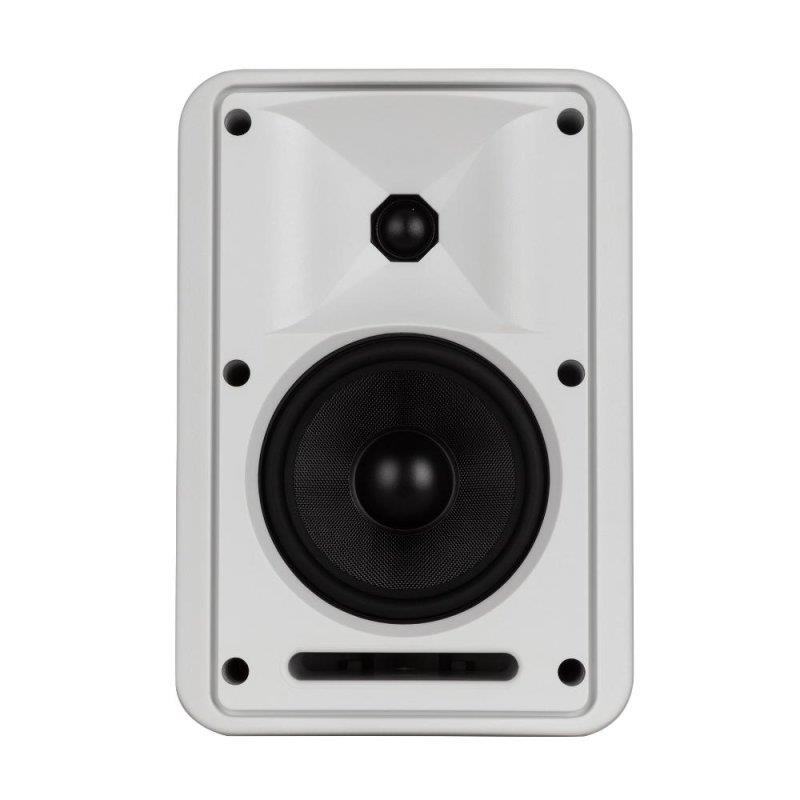

1 x 5" woofer (1’’ v.c.)
1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
Colour black RAL 9005 and white RAL 9003
IP 55 protection grade

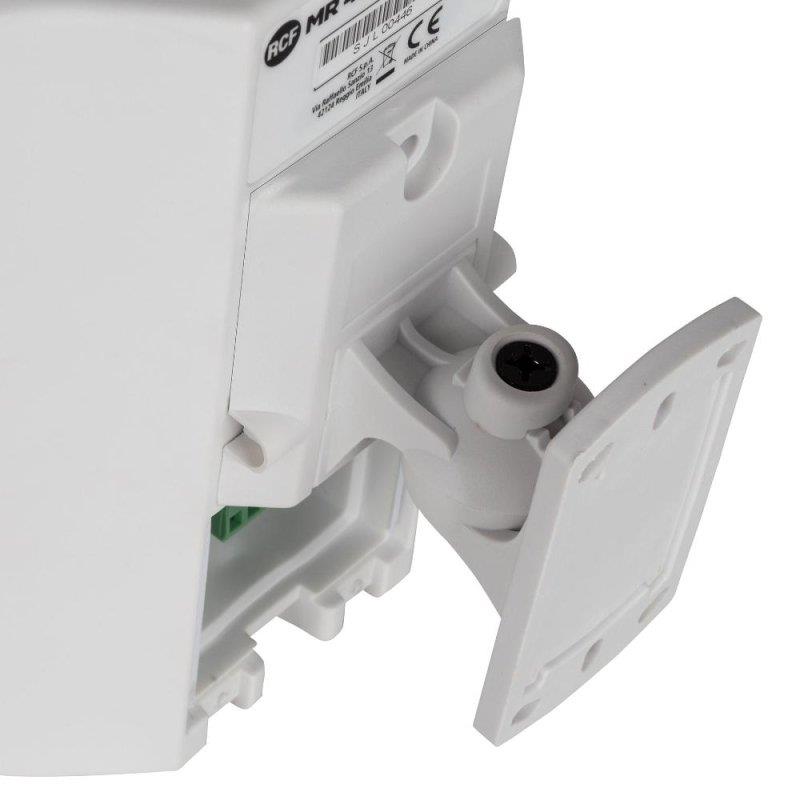

Swivel wall mount accessory included

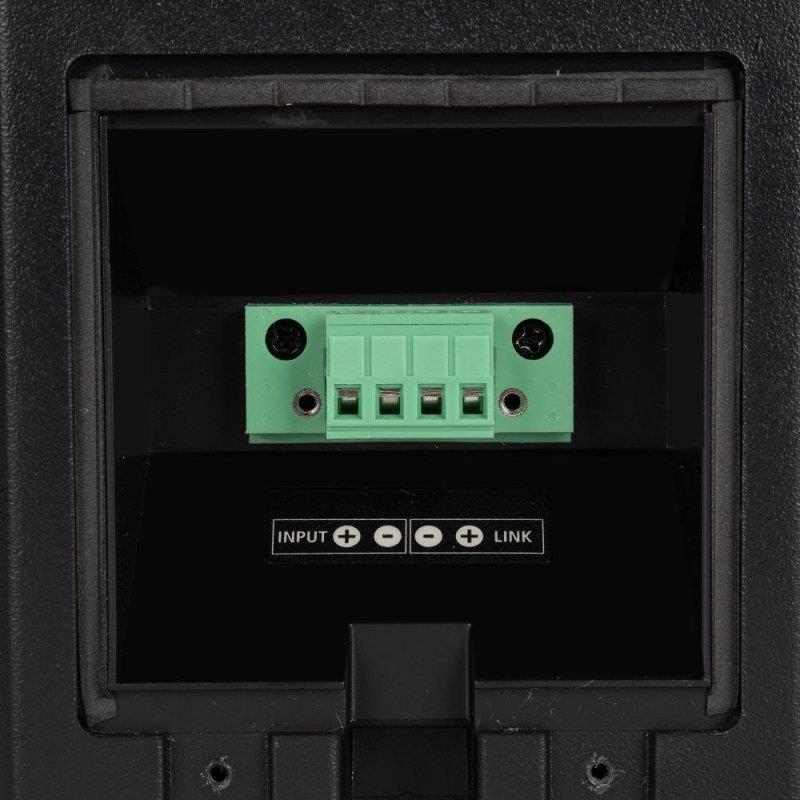

4 pole EUROBLOCK connector
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
Max SPL @ 1m: 110 dB
Horizontal coverage angle: 110°
Vertical coverage angle: 100°
Directivity index Q: 7
System Sensitivity: 87 dB
Power section Nominal Impedance: 8 ohm
Power Handling: 60 W
Peak Power Handling: 240 W PEAK
Recommended Amplifier: 120 W
Protections: Bulb lamp
Crossover Frequencies: 3000 Hz
Transducers Dome Tweeter: 1.0'' neo, 0.8'' v.c
Woofer: 5.0'', 1.0'' v.c
Input/Output section Input connectors: Euroblock
Output connectors: Euroblock
Constant Voltage Transformer: 70/100 V
Power selection 1: 40 W - 250 ohm
Power selection 2: 20 W - 500 ohm
Power selection 3: 10 W - 1000 ohm
Power selection 4: 5 W - 2000 ohm
Standard compliance IP protection grade: IP 55
Safety agency: CE compliant
Physical specifications Cabinet/Case Material: Plastic
Hardware: Wall mount bracket
Grille: Steel
Color: Black - RAL 9005, White - RAL 9003
Size Height: 270 mm / 10.63 inches
Width: 187 mm / 7.36 inches
Depth: 167 mm / 6.57 inches
Weight: 4 kg / 8.82 lbs
Shipping informations Package Height: 370 mm / 14.57 inches
Package Width: 510 mm / 20.08 inches
Package Depth: 250 mm / 9.84 inches
Package Weight: 8.9 kg / 19.62 lbs
PART NUMBER
• 13100041 MR 50T W White - RAL 9003
EAN 8024530017309
• 13100039 MR 50T Black - RAL 9005
EAN 8024530017286
