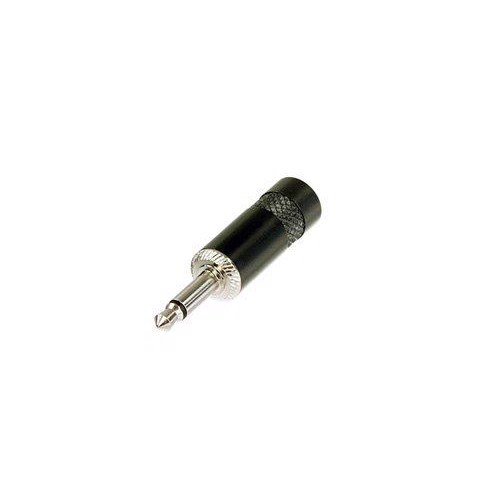

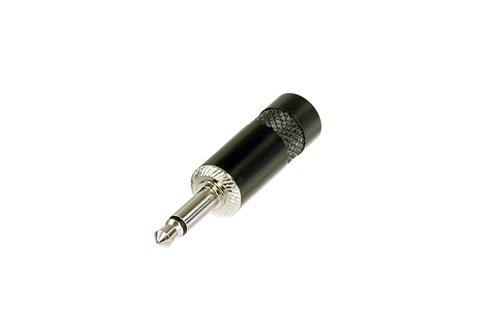

NYS226B Mini jackstik mono, sort hus
2 polet 3,5 mm jackstik, sort metalhus med crimp aflastning.
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Cable O.D.: 4 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Contact plating: Nickel
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black
Strain relief: SnCe plated, crimp type
Insulation: Thermoplastic
Solderability: Complies with IEC 68-2-20
Temperature range: -25 ?C to +70 ?C
