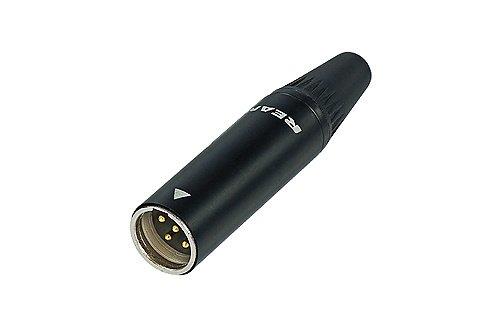

RT5MC-B Mini XLR stik REAN, 5-pol, sort hus
5 polet Mini han XLR kabelstik, sort metalhus, forgyldte kontakter.
Contact resistance: Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: Cable O.D.: 2.0 - 4.0 mm
Lifetime: > 1000 mating cycles
Wiresize: 0.22 mm?
Wiresize: 24 AWG
Wiring: Solder contacts
Bushing: ABS / TPU
Contact plating: Au
Contacts: Bronze (CuSn6)
Insert: PA 6.6 30 % GF
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black
Strain relief: POM
Solderability: Complies with IEC 68-2-20
Temperature range: -30 ?C to +85 ?C
