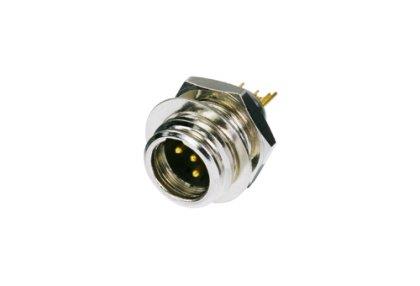

RT5MP Mini XLR chassis b?sning REAN, 5-pol (maks. 6mm panel)
5 polet Mini han XLR chassis-b?sning, nikkelhus, forgyldte kontakter, (maks. 6mm panel).
Contact resistance: Dielectric strength: > 0.5 kVdc
Insulation resistance: > 1 GΩ
Rated current per contact: Lifetime: > 5000 mating cycles
Panel thickness: max. 6 mm
Wiresize: 0.22 mm?
Wiresize: 24 AWG
Contact plating: Au
Contacts: Brass (CuZn39Pb3)
Insert: PA 6.6 30 % GF
Shell: ZuAl4Cu1
Shell plating: Nickel
Solderability: Complies with IEC 68-2-20
Temperature range: -30 ?C to +85 ?C
