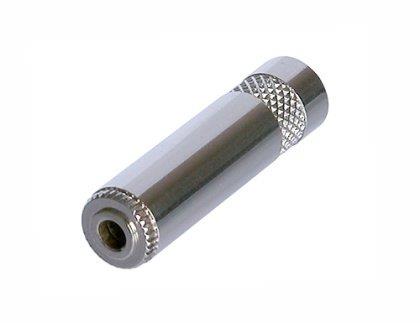

NYS240L Minijack kabelfatning hun, stereo, metalhus, 6 mm
3 polet 3,5 mm kabelfatning hun, metalhus, maks. kabel O.D. 6 mm.
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Cable O.D.: 6 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Contact plating: Nickel
Contacts: Brass (CuZn39Pb3)
Shell: Brass (CuZn39Pb3)
Shell plating: Nickel
Strain relief: SnCe plated, crimp type
Insulation: Thermoplastic
Solderability: Complies with IEC 68-2-20
Temperature range: -25 ?C to +70 ?C
