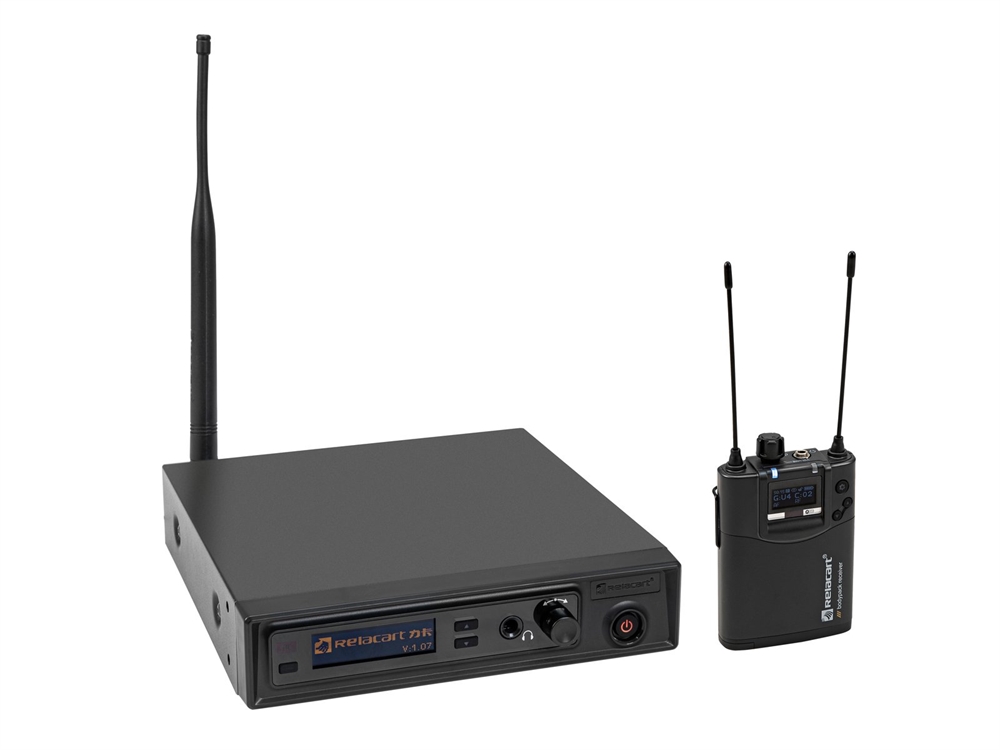

RELACART PM-320 In-Ear System 626-668 MHz

The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live performances, theater and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 100 g light and offers perfect wearing comfort.

In-ear stereo system with diversity technology, 626-668 MHz

• Diversity technology for high reception quality
• Switching bandwidth 32 MHz
• Transmitter with OLED display, 2 line inputs (XLR/6.3 mm jack) and 2 feed-through outputs (loop)
• Receiver in sturdy all-metal housing with 2 antennas, soft-touch controls and OLED display
• Applicable for touring
• Transmitter and receiver also available separately
• Can also be used as audio transmission system with extremely low latency

RELACART PM-320T In Ear Stereo Transmitter 626-668 MHz

In-ear stereo wireless transmitter with pilot tone technology (PLL)

• Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
• Pilot frequency squelch technology delete wireless RF interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Stereo or mono/mix mode
• Lock function for prevents undesired changes to settings
• RF output power Hi/Low adjustable
• 2 line inputs via balanced combo mounting jacks XLR/6.3 mm
• 2 feed-through outputs (loop)
• Adjustable headphones output
• OLED display
• Operating range up to 100m with line-of-sight
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U

Package contents

• 1 x transmitter, 1 x antenna, 1 x external mains adapter, 3 x mounting bracket, 8 x screw, 2 x jack cable, 3 x user manual, 1 x declaration of conformity

RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz

In-ear stereo wireless receiver with diversity technology

• Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
• Sturdy all-metal housing with soft-touch controls, applicable for touring
• Diversity technology for high reception quality
• Pilot frequency squelch technology delete wireless RF interference
• Parallel operation of up to 5 systems is possible without any interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LEDs for antenna A/B
• Stereo or mono/mix mode
• Balance (left, right) adjustable
• Limiter and high frequency boost
• Lock function for prevents undesired changes to settings
• OLED display
• Operating range up to 100m with line-of-sight

Package contents

• 1 x receiver, 1 x user manual, 1 x declaration of conformity
