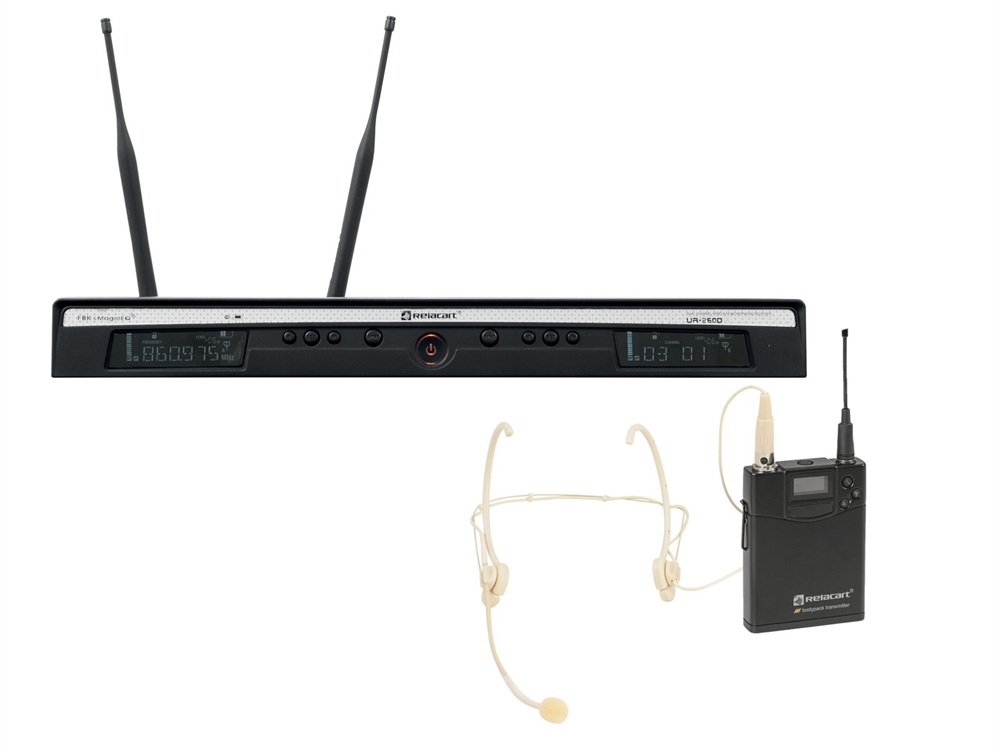

RELACART Set UR-260D Bodypack with HM-600S Headset

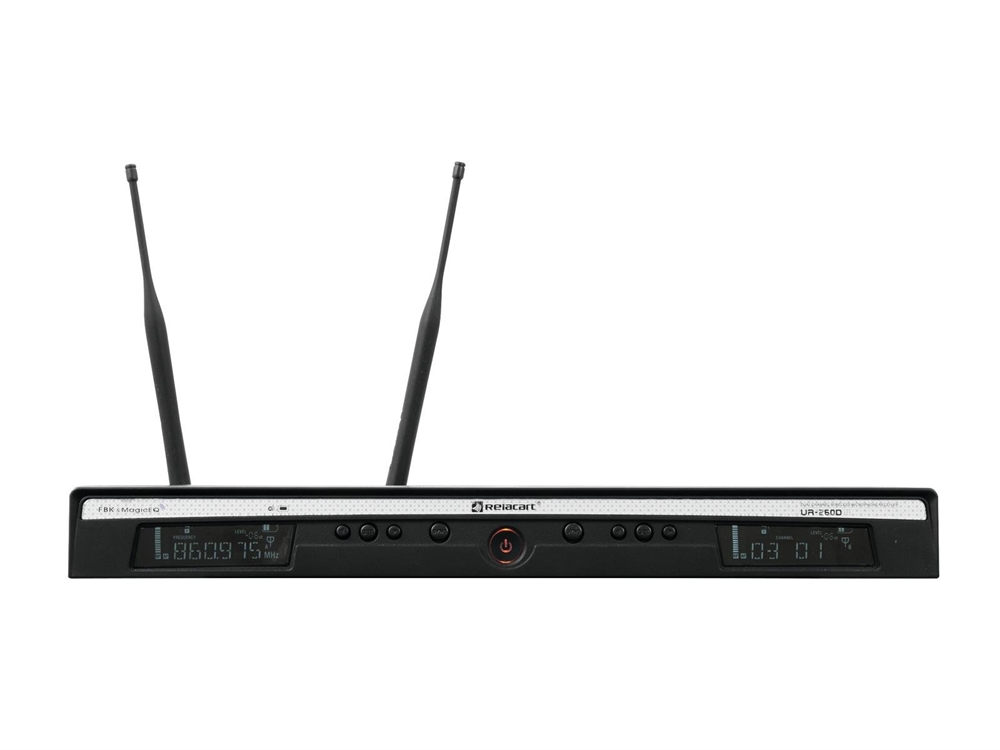

RELACART UR-260D 2-channel UHF Receiver

True diversity wireless receiver with DSP for microphone modeling and PC software

• 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
• Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
• Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
• Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
• DSP programming and management via Ethernet port and intuitively operated PC software
• High-quality antenna diversity reception
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 wireless channels is possible without any interference
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• Multiple units can be linked with network cables
• Lock function for prevents undesired changes to settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Delivery includes jack cable and power unit
• Rugged metal housing
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Digital signal processor 96kHz, 24 bit
• Multicolor LCD display
• Operating range up to 80m
• The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U

Package contents

• 1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x mounting bracket, 6 x screw, 1 x user manual, 1 x declaration of conformity

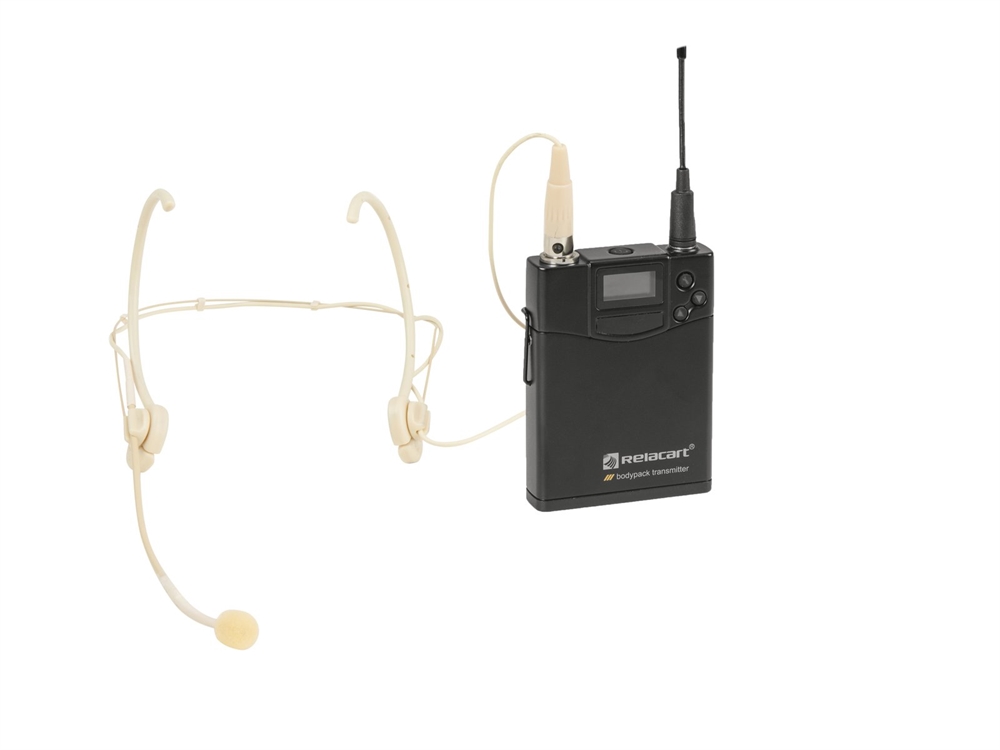

RELACART UT-222 Bodypack with HM-600S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

• Durable aluminum alloy housing, applicable for touring
• Lavalier microphone optional
• Pilot frequency squelch technology delete wireless RF interference
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• Mute mode
• Adjustable input gain
• RF output power Hi/Low adjustable
• Lock function for prevents undesired changes to settings
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

transmitter

• OLED display
• Operating range up to 80m

Microphone

• Polar pattern: Omnidirectional
• For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

• 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity
