Teknisk specifikationer Contact resistance< 10 mΩ (inner) Dielectric strength1 kVdc Frequencyrange1 - 100 MHz Insulation resistance> 0.5 GΩ Rated current per contact1,5 A Rated voltage50 V Transmission performance CAT 5e Standard compliance TIA/EIA 586B, IEC11801 Insertion force≤ 20 N With drawal force≤ 20 N Lifetime> 1000 mating cycles Panel thicknessmax. 4 mm 0.16'' Wiring Feedthrough Locking device Latch lock Mounting direction front & rear Chassis shape D Contact plating 0.2 µm Au over Ni plating Contacts Bronze (CuSn8) Insert PBTP 15 % GR Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Flammability UL 94 V-0 Temperature range-30 °C to +80 °C The

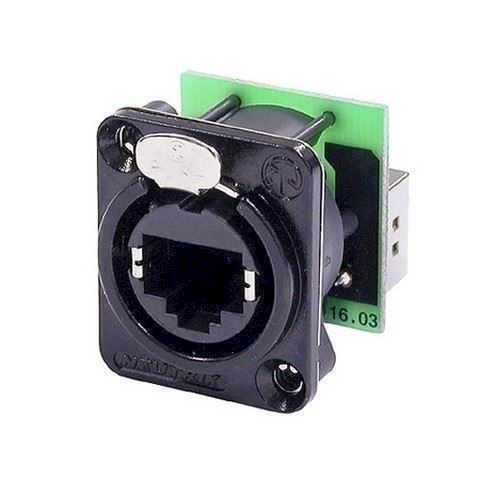

etherCON Series is a ruggadized and lockable RJ45 connector system,
optimized for proaudio, video and lightning network applications. The
chassis connectors are shaped to fit into standardized panels out of
the entertainment industry. The D-Series offers the most rugged
design of the etherCON series and is perfectly suitable for panel mount
and the installer market
