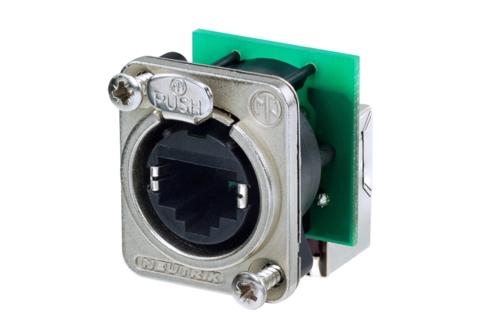

NE8FDP-R RJ45 etherCON hun chassis (gennemføring)
Har 90 grader vinklet tilslutning på bagsiden og fylder derfor mindre i dybden. Kan ikke bruges med CAT6 kabelstik NE8MC6-MO og NKE6S*-kabler.
Contact resistance: < 10 mO
Dielectric strength: 1 kVdc
Frequencyrange: 1 - 100 MHz
Insulation resistance: > 0.5 GO
Rated current per contact: 1,5 A
Rated voltage: < 50 V
Transmission performance: CAT 5e
Standard compliance: TIA/EIA 586B, IEC11801
Insertion force: = 20 N
Withdrawal force: = 20 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 4 mm 0.16'
Wiring: Feedthrough
Locking device: Latch lock
Chassis shape: D
Contact plating: 0.2 µm Au over Ni plating
Contacts: Bronze (CuSn8)
Insert: PBTP 15 % GR
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Flammability: UL 94 V-0
Temperature range: -30 °C to +80 °C
