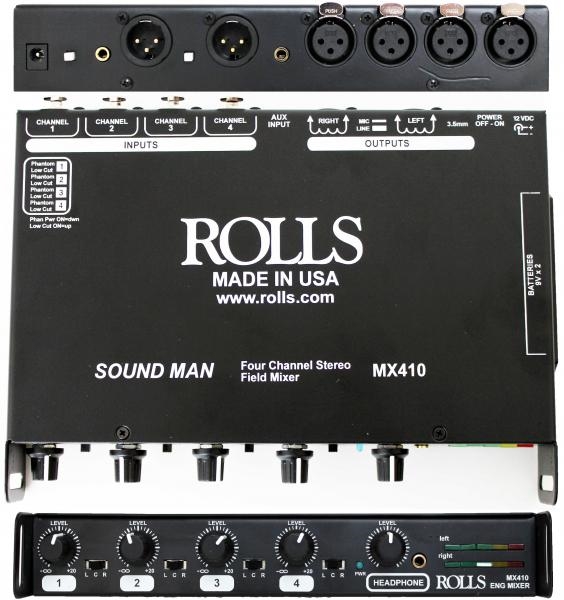

The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price. Applications include: * DV Field Production. * Electronic News Gathering. * Location Recording (Dialogue and Music). * Digital Recording. * Broadcast Remotes. * Desktop Mixing for Video Post Production.
- Input Impedance: 600 Ohm bal. /10K Ohm Aux.
- Output Attn. Switch: 0/-30 dB
- Self Noise: -65 dB maximum, -90 dB typical
- Max Gain: +55 db
- S/N Ratio: 115 dB
- Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
- Max Input: -20 dBV
- Current Draw: 30 mA with no Phantom Power or Signal.
- Phantom Power: +18 VDC
- Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
- Power: 12-15VDC / < 300-500 mA
- Size: 9" W x 6.75" D x 1.5" H
- Weight: 2.45 lbs
- Four balanced XLR Inputs.
- Two transformer-balanced XLR Outputs
- Switchable Output Level ( Line level, or mic)
- Switchable Phantom Power for each input.
- Level controls for each channel.
- 3.5mm Headphone Output and Level control.
- Rolls PS27s external power supply included.
- Powered by two 9 volt batteries or the included power supply
