The RTI NANO 150 stretches the physical boundaries of current show laser light technology: With 150 W and professional scanners with 38kpps @ 8° ILDA; 25kpps @ max. deflection of 48° it claims a class for its own.
The 150 W full color laser system is powered by three ultra precise laser modules built with the latest generation of the maintenance free RTI Semiconductor Laser (RSL) technology with individual powers of 33.000 mW / 637 nm (red), 60.000 mW / 525 nm (green) and 90.000 mW / 455 nm (blue). With these high powers per color channel it is no problem to create colored beams that are visible from many kilometers away. But the RTI NANO 150 is also graphics capable: Projections to far distance surfaces, like mountains or tall buildings, can be done as well as astonishing aerial effects that cover a huge area.
Typical applications for this unit are sky laser or landmark laser use, long distance and large scale projections towards big surfaces, but it can also be THE special effect for any type of large scale event. Multimedia projects can integrate these lasers to make sure that the beams can definitely be seen without the requirement of artificial fog or haze.
The RTI NANO 150 comes with its own active cooling system to make sure that the output and performance of the laser system can always be kept on a top professional level. The integrated AC keeps the temperature of all critical parts at a constant level, independently of the environmental conditions, which allows for operation of the laser system between -20° and +60° C. The AC unit is integrated to the housing, so no additional external devices are required, which makes transport, handling and mounting quite easy for the power level of this unit.
The interior of the RTI NANO 150 laser system is built with special shock absorbing technology that extends the shock-proof design of the laser modules, so misalignment of the ultra-precise laser modules is prevented, which is essential for long-range use.
Even though the RTI NANO 150 creates such extreme laser powers, the size of the laser beam as well as the divergence is kept extremely low, so it is possible to use small scanner mirrors for fast, professional graphics display. It also maintains a very low widening of the beam over distance (divergence), which makes the laser beam travel over longer distances and keeps up visibility: With a divergence of only <0.9 mrad the RTI NANO 150 is truly outstanding at the power it provides.

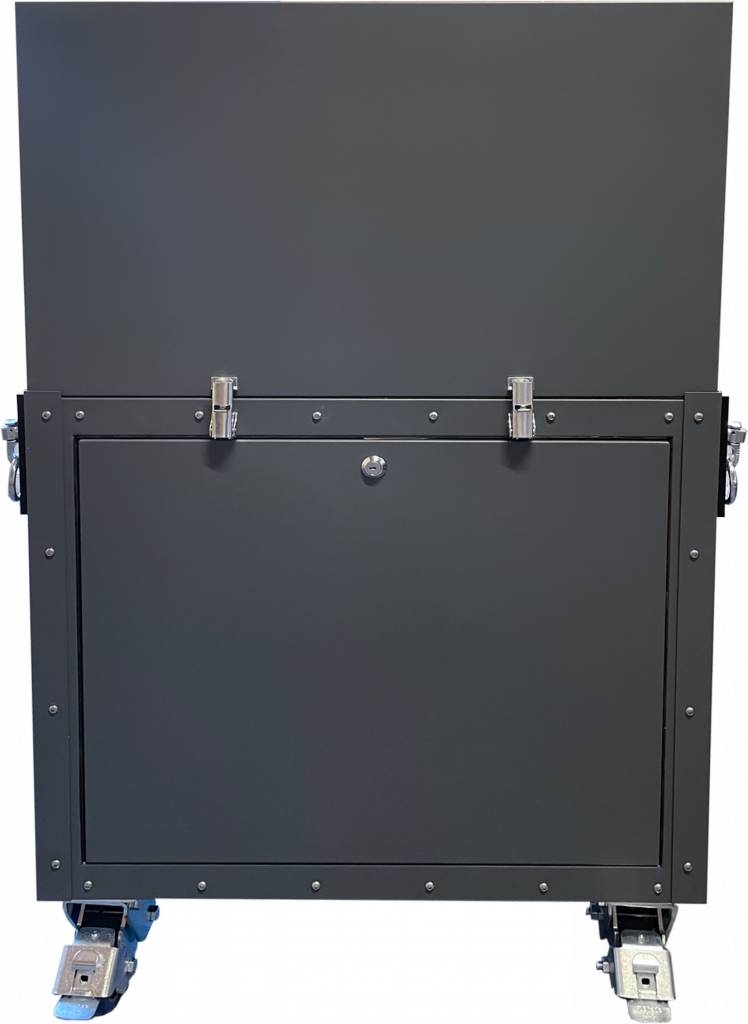

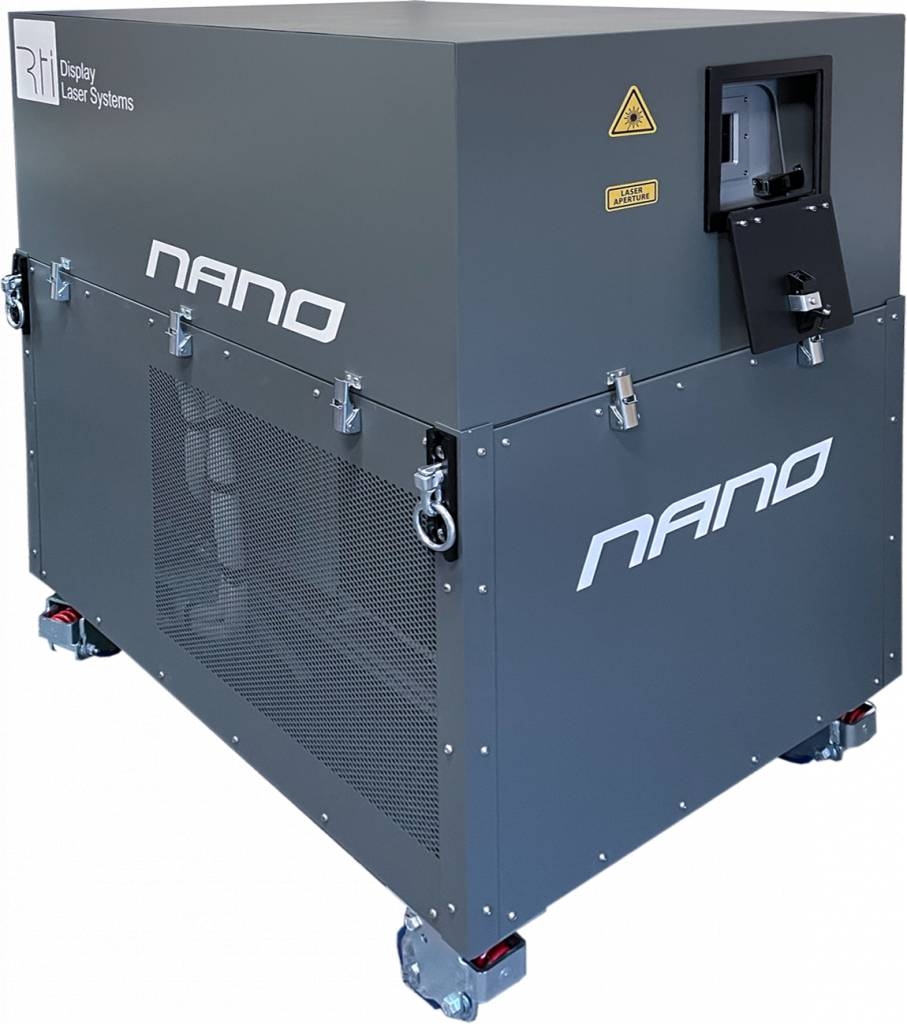

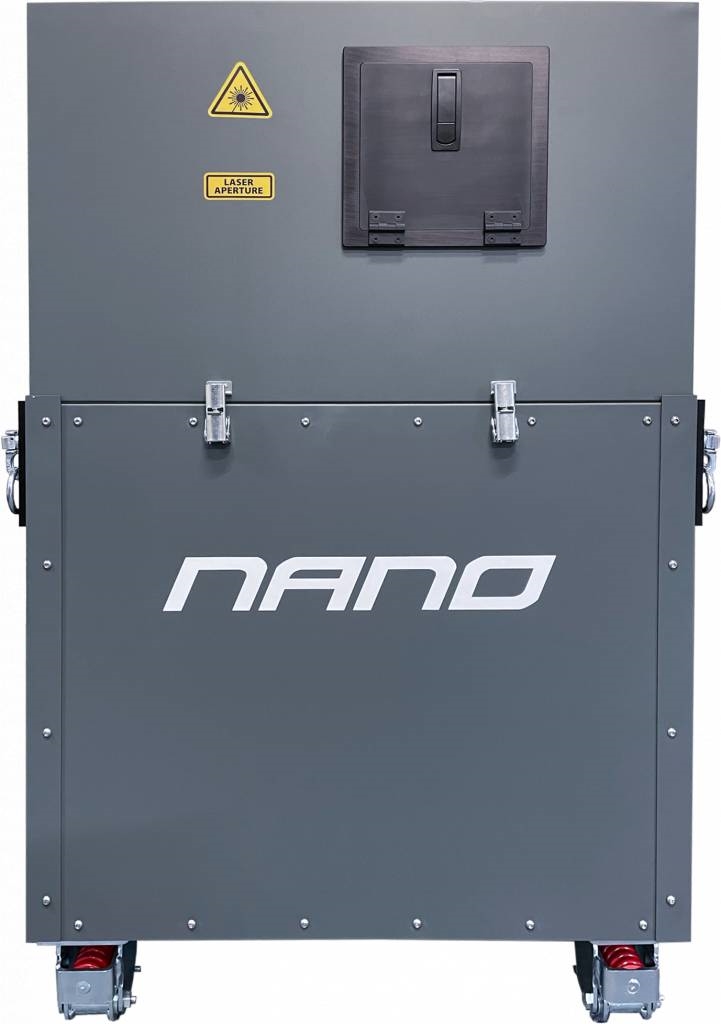

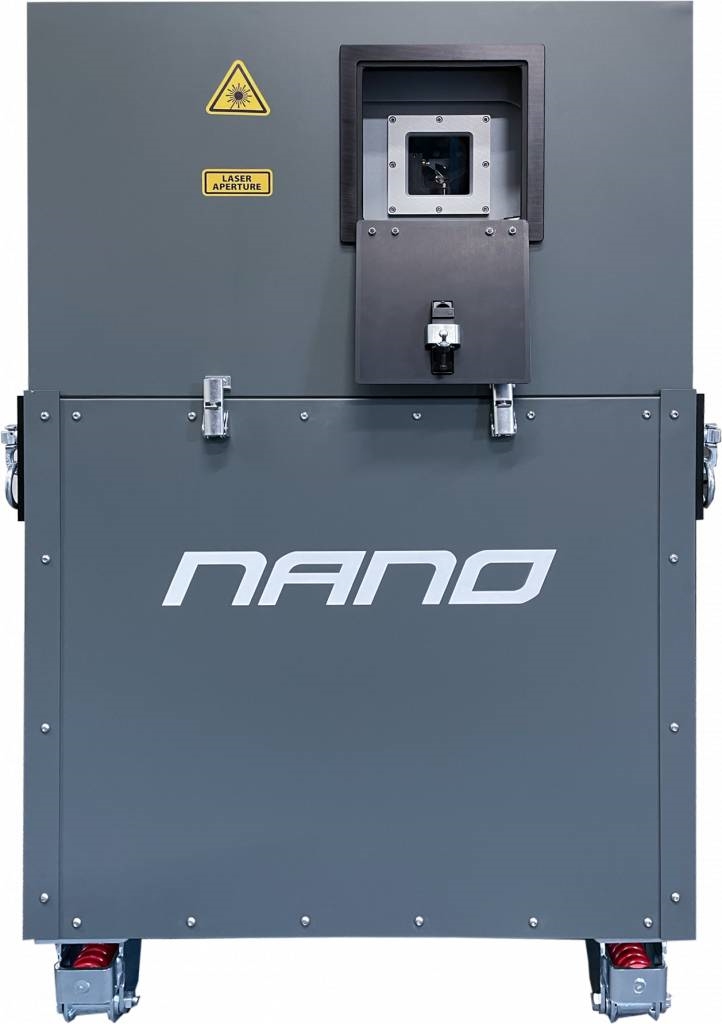

The laser system comes in a case housing that can be operated standing on a surface, hung from a truss construction or ceiling, or flown like a line array. It comes on heavy duty castor wheels with a special suspension technology. Of course the laser system is perfectly suitable for outdoor use, even in the rain.
The
intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI NANO 150, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.
Creating such extreme laser powers of course requires a proper power supply of the unit. Due to its energy efficient design, the RTI NANO 150 only requires a 3 phase 16A CEE power connection with an overall maximum power consumption of only 6 kW.
The whole laser system, including the built-in air conditioning, has the dimensions of 110 x 80 x 130 cm and weights 120 kg.
