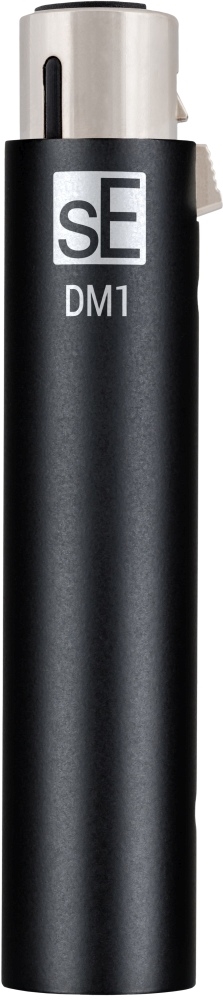

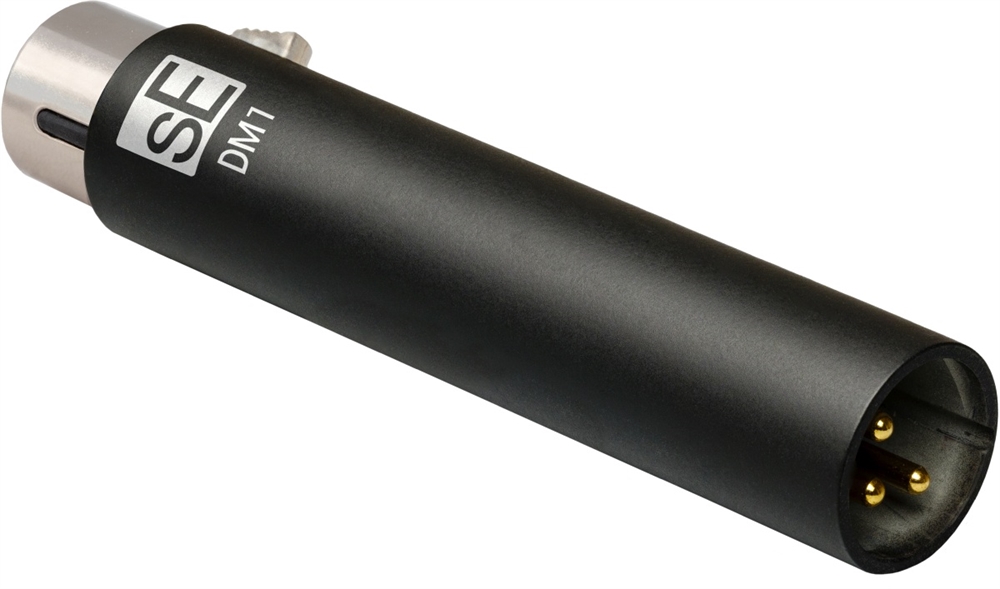

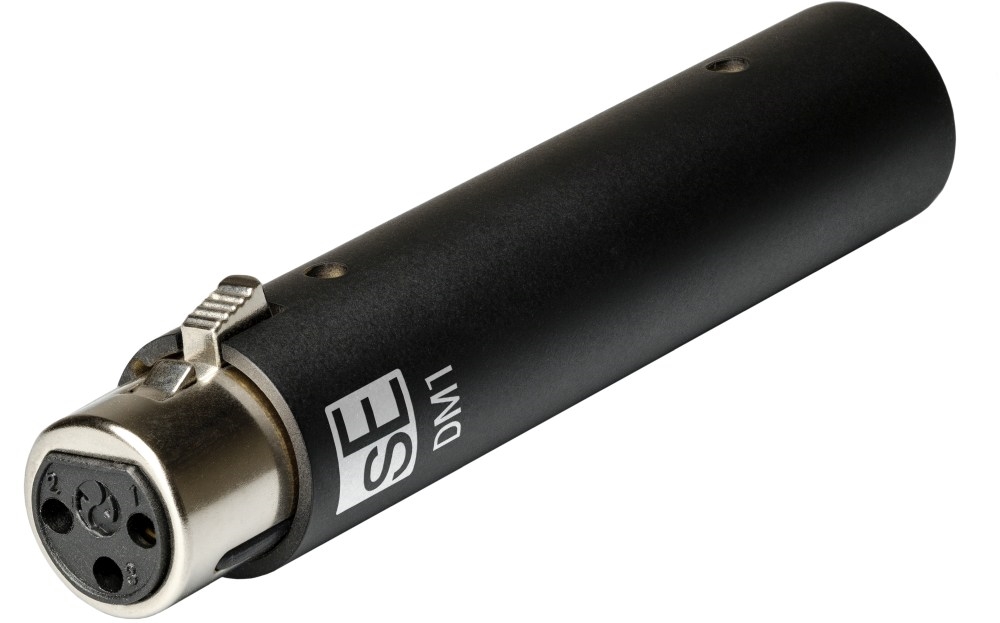

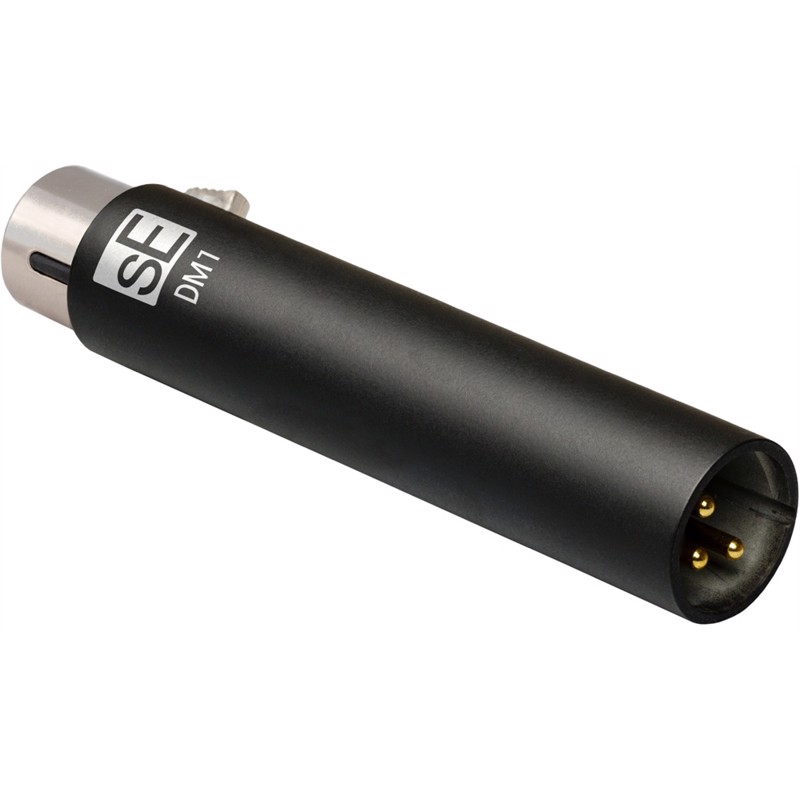

sE Electronics DM1 Black
An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your passive microphones.
LOT of gain
Some mics need a LOT of gain - and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.
With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.
+28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD
- designed for neutral, balanced sound quality
- the perfect way to boost the signal of a passive microphone
- gain stays consistent regardless of connected load
- provides significantly improved level to your mic preamp for proper gain staging
SOPHISTICATED CLASS-A ELECTRONICS
- state of the art electronics and high-grade FETs provide supremely low noise
- transformerless design for pristine sound quality
- provides the lowest noise in its class
DEDICATED OUTPUT BUFFER AMPLIFIER
- provides +28dB output independent of load impedance or cable length
- extremely low output impedance
- drives long cable runs and can reduce susceptibility to RF interference, buzz & hum
SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH
- efficient rejection of any electrical interference and noise
- high-quality finish ensures a great look for many years
- slim design allows for easy placement in the studio or on stage
GOLD-PLATED XLR CONNECTOR
- for loss-free and reliable signal connection
SPECIFICATIONS
- Black version
- Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
- Gain: 28 dB (load 1kOhms)
- Max output level (0.5% THD): 8.3 dBV (2.6 V)
- Output noise level: 9 μV (JIS-A)
- Powering: 48 Volts according toIEC 61938
- Electrical impedance: 135 Ohms
- Recommended load impedance: >1k Ohms
- Current consumption: 3.0 mA
- Connectivity: 3-pin male/female XLR connector
- Dimensions: Diameter: 19 mm Length: 95.5 mm
- Weight: 80 g
