OLITE Quick Link Type A-90
EUROLITE quick linksThe EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.

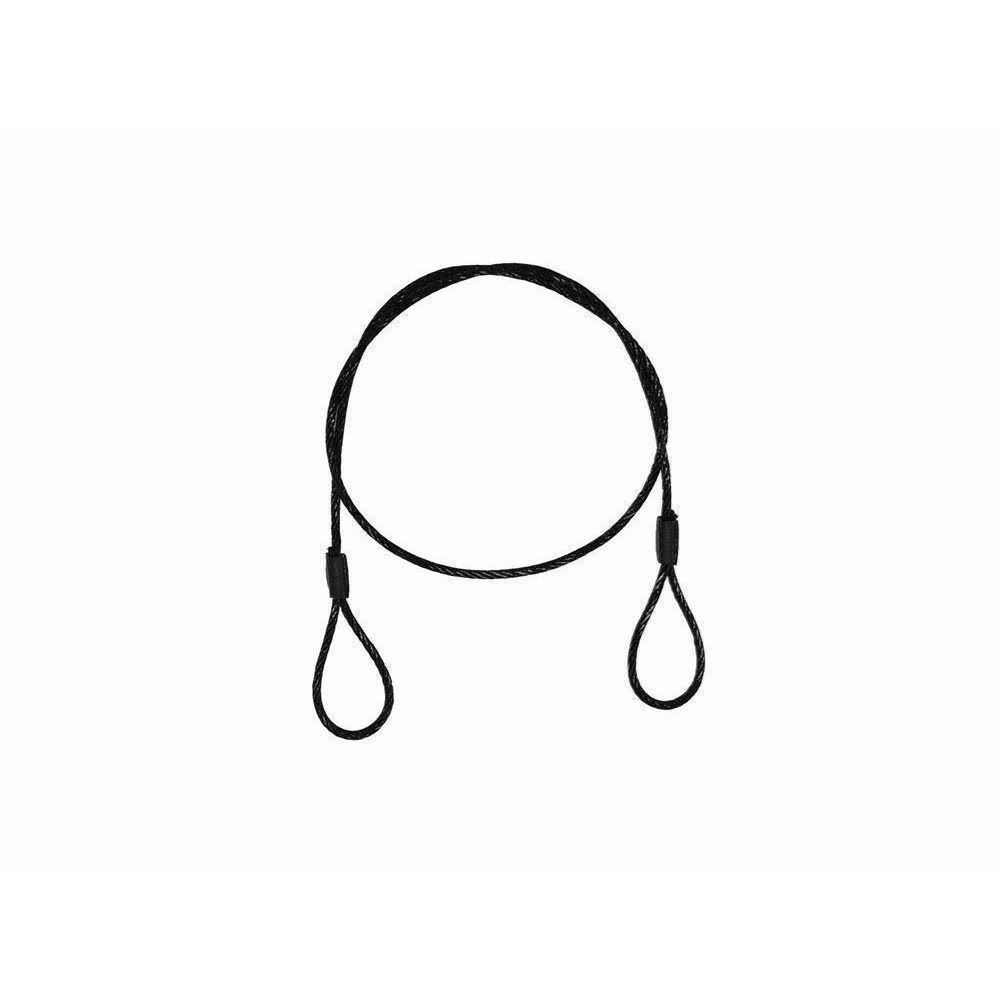

OLITE Steel Rope (SC) 900x4mm black without quick link
Steel rope with loops, grouted without grummet thimbles
- With steel core
- Black
- Stopping rope for general lifting purposes
OLITE Quick Link Type A-90
Official quick link
- Complies with DIN 56927:2009-03
- Nominal size: 4 mm
- Form A (short)
- Galvanized
- Identification number: 90
- Stamp: DIN 56926 A 90
- Test report according to DIN EN 10204 as download
OLITE Steel Rope (SC) 900x4mm black without quick link
Length: 900 mm
Diameter: 4 mm
Rope grade: 1770
Surface finish of wires: A
Type of lay and direction of lay: sZ
Maximum load WLL (5-fold): 175 kg
Safety factor: 5
Temperature range: -40°C to +150°C
Maximum load WLL (5-fold): 175 kg
Color: Black
Nominal tensile strenght of rope: 1770 N/mm²
Design of the core: 6 x 19 FC
Wire surface: Zinc-plated
Length: 90 cm
OLITE Quick Link Type A-90
Maximum load WLL (5-fold): 180 kg
Maximum load BGV C1 (10-fold): 90 kg
Identification: DIN 56926-A-90
Temperature range: -40° C to +100° C
Diameter: 4 mm
Form: A - small
Spanner opening: 5.5 mm
Dimensions: 41 x 22 mm
Maximum load WLL (5-fold): 180 kg
Spanner opening: 0-5,5 mm
Weight: 0,012 kg
Standard: DIN 56927:2009-03,
