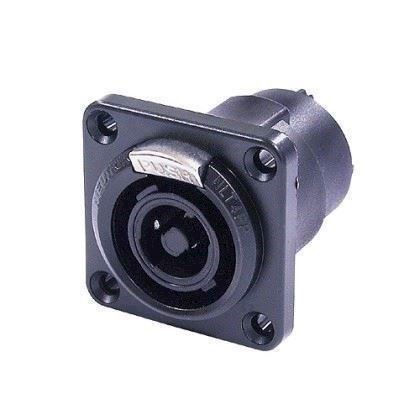

4 pole female chassis connector, metal housing, solder contacts.The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal b
Teknisk specifikationer Contact resistance< 2 mΩ Dielectric strength4 kVdc Insulation resistance> 10 GΩ Rated current per contact 40 A rms continuous Rated current per contact50 A audiosignal, duty cycle 50 % Rated voltage250 V (AttentionspeakON is NOT to be used as an AC mains or power supply connector) Lifetime> 5000 mating cycles Wire size 6 mm²'' Wire size10 AWG Locking device Quick Lock Chassis shapesquare G-size flangeLayoutfour thru holes Contact plating 4 µm Ag Contacts Spring Copper (CuSn0.2) Insert Polyamide (PA 6 30 % GR) Locking element Zinc diecast (ZnAl4Cu1) Shell Zinc diecast (ZnAl4Cu1) Ni Flammability UL 94 HB Protection classIP 54 SolderabilityComplies with IEC 68-2-20 Temperature range-30 °C to +80 °C
