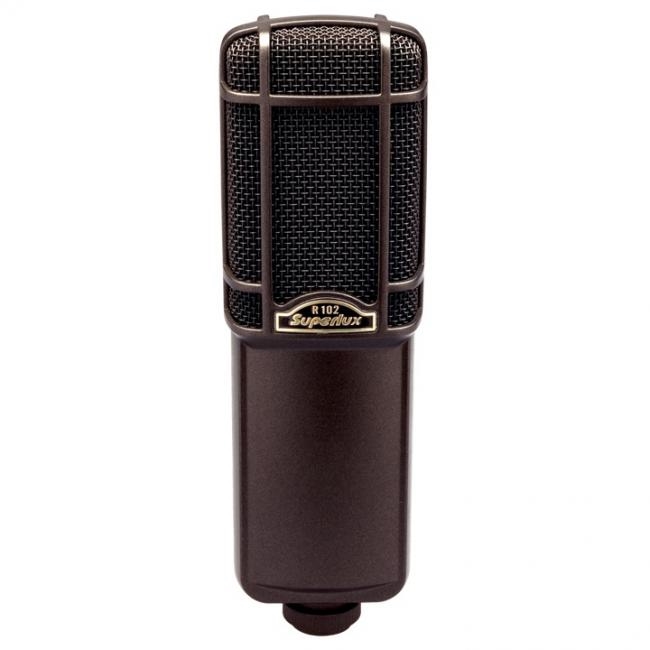

Superlux R102 er en aktiv aluminiumsbåndmikrofon designet til optagestudiet og professionel livepræstation. Det har en høje følsomhed, men udviser alligevel den jævnt frekvensrespons og den fremragende kortvarige respons fra en båndmikrofon.
Superlux
R102 er en aktiv aluminiumsbåndmikrofon designet til optagestudiet og
professionel livepræstation. Det har en høje følsomhed, men
udviser alligevel den jævnt frekvensrespons og den fremragende
kortvarige respons fra en båndmikrofon.
Black grille
Classical standard ribbon microphone
+48 V Phantom powered
Wide and extended frequency response
High sensitivity, wide dynamic range, low distortion
Min. noise, Stable performance
Unaffected by the surrounding temperature and humidity
Figure 8 polar pattern with identical sensitivity at the front and back
Low output impedance
Modular capsule design
Applications
Recording
Broadcast
Live performance
Frequency
Response: 25~15,000 Hz
Rated Impedance: 2 5 0O
Sensitivity ( Hz open circuit voltage) : -40dBV/Pa (10
mV/Pa) 1Pa=94dB SPL
Polar Pattern: Figure 8
Acoustic Theory: Pressure gradient
Type: Ribbon microphone
Max. Sound Pressure
Level: 1kO load) 138dB SPL (THD?0.5% 1kHz)
Equivalent Noise
Level: (A weighted) 18 dB
Minimum Load Impedance:
1000 O
Finish: Black grille
Connector:
3 pin XLR- male
Polarity: Positive pressure on diaphragm
produces positive voltage on pin 2 with respect to pin 3.
Current
Consumption: 4mA
Power Supply: 48V phantom
power
Dynamic Range: ( 1 kO load) 120dB
RoHs
Net Weight: 500g(17.6oz.)
Dimensions: WxHxD: 60mm(2.36in.) x 196mm (7.71in.) x
44mm(1.73 in.)
Environmental Conditions: The R102 operate
between-10°C~50°C (14°F~122°F) with relative humidity between 0 to 95%.
