The tarm 6 show laser projector is a
pure diode solution with
analog color modulation and a guaranteed output power of 6'000 mW.
The tarm 6 units have a built-in network DAC for Showcontroller and Showeditor, but also
can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a
built-in memory with pre-set patterns, that can be easily triggered through
DMX,
automatic mode.
The tarm 6 comes with
integrated ShowNET network interface and free laser show software. Details in the box below.
The benefits include:
- 6'000 mW guaranteed output power
- a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
- high-precision diode arrays provide an excellent beam divergence of less than <0.6 mrad for a low beam diameter
- pure diode laser
- novel method for increasing the beam precision of the single-mode diodes
- beautiful colors and great color fading
- the tarm 6 impresses with a very bright 637 nm single mode red
- MANUFACTURED IN GERMANY, with high precision diodes array modules
The tarm 6 has good specifications with a beam diameter of ca. 4.5 mm and a beam divergence of less than <0.6 mrad.
It is equipped with a red (2'000 mW / 637 nm), a green (2'000 mW / 520 nm), and a blue (2'500 mW / 450 nm) diode laser source.
The tarm 6 devices have very fast scanners, running at 45kpps @ 8° ILDA and scanning a maximum scan angle of 50°, upgrades to CT-6210 scanners with 60 kpps@8° ILDA and a deflection angle of up to 60° are available on request. These specifications definitely make the units perfectly suitable for professional applications and ideal for graphics projections.
The housing of the tarm 6 is built very
rugged and in a
dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum. The mounting bracket allows for hanging and for upright mounting of the laser system.
The tarm 6 is suitable for
demanding show laser applications and graphics projections in
clubs, bars and on small stages and can be used by
beginners as well as professionals.
+ Integrated ShowNET incl. free laser show software
The tarm 6 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 6 for free. The Showcontroller software is supported as well and can be purchased additionally.

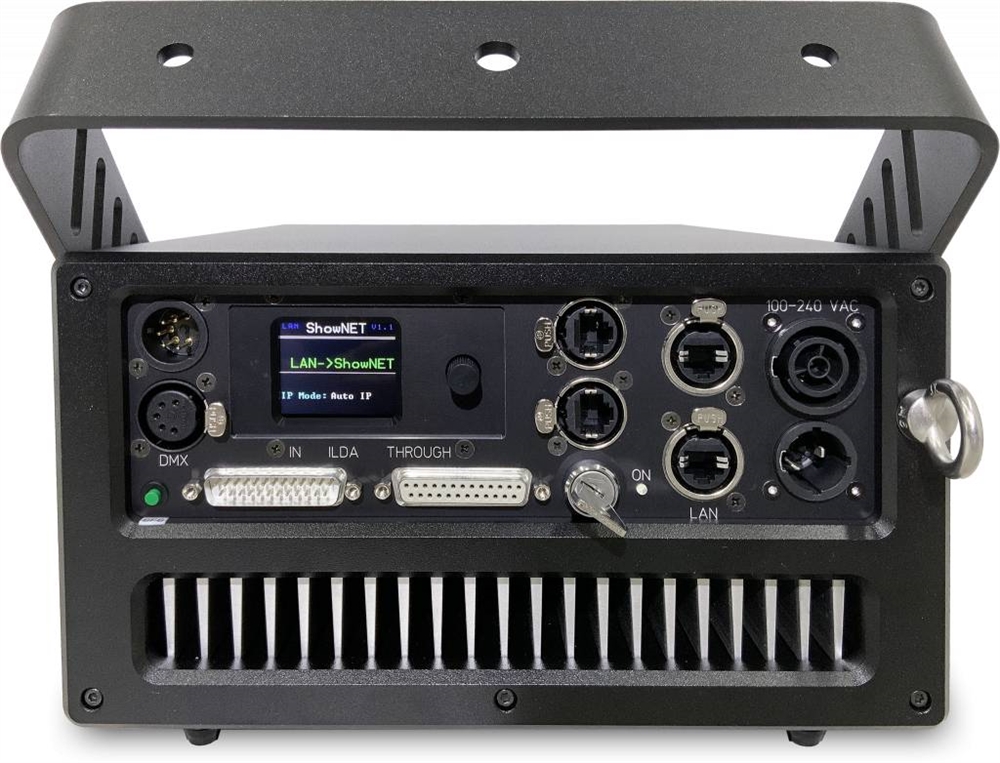

The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.
