Tascam BD-MP1 Blu Ray afspiller
BD-MP1 er en robust, multimedie-videoafspiller med én rack-plads til professionelle applikationer som permanent installation på entreprenørmarkedet og touring. Baseret på succes med Tascam BD-01U, kan denne high-definition afspilningsenhed styres via LAN, RS-232C og en trådløs fjernbetjening og er derfor en ideel komponent i integrerede mediesystemer. Ikke desto mindre kan al menubetjening også styres med taster på frontpanelet. BD-MP1 kan bortset fra Blu-ray-diske, DVD og CD-medier afspille flere formater af lydfiler og stillbilleder, der er gemt på SD-kort eller USB-flashmedier.
BD-MP1 tilbyder otte lydudgange til 7,1 surround sound, et par afbalancerede XLR og RCA ubalancerede stereoutgange, en koaksial digital lydudgang til SPDIF, Dolby og DTS signaler og en HDMI lyd / videooutput. De analoge og digitale udgangsniveauer kan dæmpes op til 40 dB. Andre professionelle funktioner inkluderer systemstyring over HDMI (HDMI CEC), NTSC / PAL-konvertering, nederlagbar information på skærmen til det tilsluttede display, en tændt-play-funktion, kapitel / titel / A – B gentagelse, øjeblikkelig gentagelse og genoptag efter strøm på.
Tascam kanaliserer års erfaring med DV-D01U og BD-01U forgængerne til at skabe en pålidelig videospiller til kommerciel AV, uddannelse, hus for tilbedelse, bestyrelseslokale og andre højspændingsinstallationer eller live turné.
Single-rackspace Blu-ray, DVD, CD and solid-state player
Controllable via Ethernet network (Telnet), RS-232C or wireless remote control
Plays video and audio material stored on following media: BD25, BD50, BD-ROM, BD-R, BD-RE
DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
CD, CD-R, CD-RW
SD cards (up to 32 GB)
USB flash media
Support for a wide range of file formats
NTSC/PAL conversion
BD-Live function
HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order
Separate 7.1 surround sound outputs
XLR balanced and RCA unbalanced stereo outputs
Up to 40 dB attenuation for analogue and digital stereo outputs
Coaxial digital audio output (SPDIF, Dolby, DTS)
Power-on play (start playback when power comes up)
Resume (continue after power cycle)
Repeat (chapter, title, A–B)
Instant replay (10 seconds)
Lock function (panel, tray, or IR remote)
On-screen information switchable on or off
Dimmable front-panel display
Firmware update via disc or USB memory

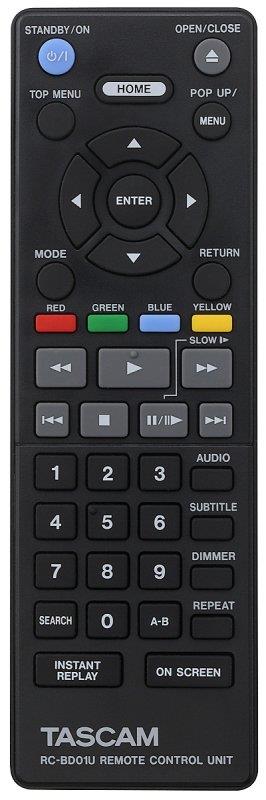

Infrared remote control included as standard
Media
Blu-ray BD25, BD50, BD-ROM, BD-R, BD-RE
Disc formats BDMV, BDAV
DVD DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
Disc formats DVD-Video, DVD-VR, AVCHD
CD CD-DA, CD-R, CD-RW
SD SD card with up to 32 GB total capacity
Supported file systems FAT16, FAT32, exFAT, NTFS
USB USB flash drive (mass storage class) with up to 2 TB total capacity
Supported file systems FAT16, FAT32, NTFS
Supported file formats
Video 3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV
Audio AAC, APE, FLAC, MP3, WAV, WMA
Still image JPEG, GIF, PNG
Audio resolution
BD/DVD/USB/SD Sampling frequency:
44.1/48/64/88.2/96/176.4/192 kHz
Bit width: 16/24 bit
CD Sampling frequency: 44.1/48 kHz
Bit width: 16/24 bit
MP3/WMA Sampling frequency: 32/44.1/48 kHz
Bit width: 16/24 bit
MP3 bit rate: 112–320 kbit/s
WMA bit rate: 48–192 kbit/s
Video
Resolutions Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p
Aspect ratios 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
Colour systems NTSC, PAL, Multi (if supported by TV)
HDMI colour space RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)
Analogue audio outputs
Balanced XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level +4 dBu (1.23 Vrms)
Maximum output level +20 dBu (7.75 Vrms)
Output impedance 200 Ω
Unbalanced RCA pin jacks
Nominal output level –10 dBV (0.316 Vrms)
Maximum output level +6 dBV (2.0 Vrms)
Output impedance 200 Ω
7.1 8 × RCA pin jacks
Nominal output level –10 dBV (0.316 Vrms)
Maximum output level +6 dBV (2.0 Vrms)
Output impedance 200 Ω
Audio performance
Frequency response 20 Hz – 20 kHz, ±0.5 dB
Signal-to-noise ratio > 96 dB (JEITA)
Total harmonic distortion Dynamic range > 96 dB (JEITA)
Channel separation > 89 dB
Digital outputs
HDMI output 19-pin HDMI, Type A
Coaxial audio output RCA pin jack
Format IEC 60958-3 (SPDIF)
Output impedance 75 Ω
Other inputs and outputs
RS-232C D-sub 9-pin
Mode Full duplex
Baud rate 9600, 38400 bits/s (selectable)
Ethernet RJ45
Supported standards 10BASE-T, 100BASE-TX
USB USB A-type (1 × front, 1 × rear)
Protocol USB 2.0 compliant
Rated supply voltage DC 5 V, 1 A
Power supply and other specifications
Power connector IEC receptacle
Power requirements AC 100–240 V, 50/60 Hz
Power consumption 30 W (typical)
Dimensions (W × H × D) 483 mm × 44 mm × 281 mm
Weight 3 kg
Permissible operating temperature 5–35 °C
Permissible operating humidity 25–85 %, no condensation
Included accessories IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner’s manual
