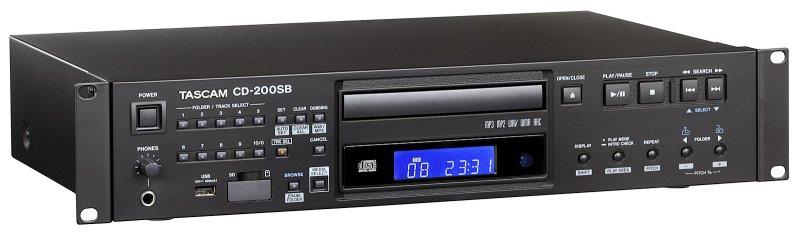

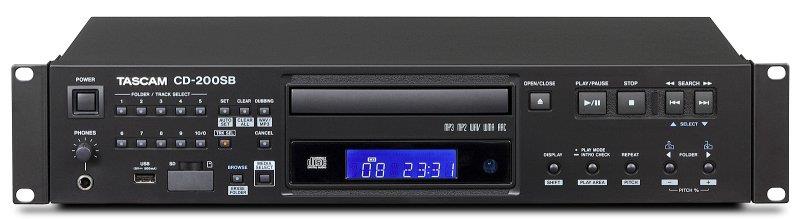

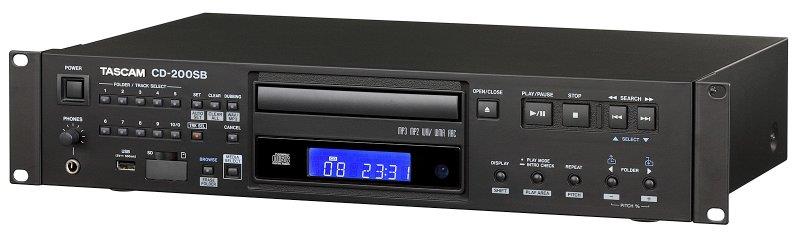

Tascam CD-200SB CD og harddisk afspiller

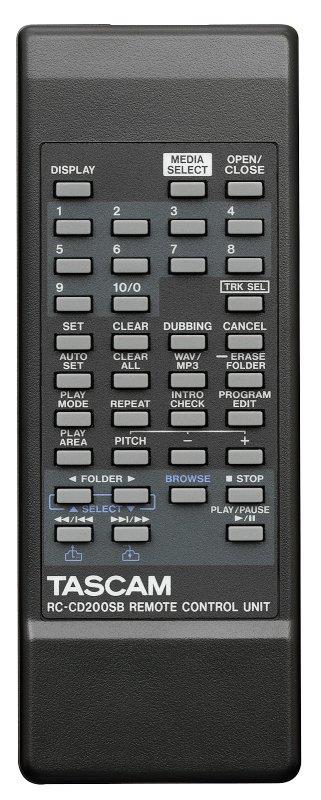

CD-200SB er en robust, universel playback-enhed til lydmateriale på media såsom SD/SDHC-hukommelseskort og USB-stik, eller på CD'er (CD-DA, CD-R, CD-RW). Den understøtter filformater som WAV, MP3, MP2, WMA og AAC og tilbyder ti knapper til direkte adgang til valgbare mapper på solid media. Enheden kan også uddrage spor fra CD'er til SD/SDHC/USB-media i enten WAV eller MP3-format. CD-200SB tilbyder funktioner som Single, Shuffle, Program og Repeat-playback, Intro-Check og Pitch-kontrol (±14 %). CD-Tekst og ID3/WMA/AAC-tags vises på enhedens display. Den har anti-shock-memory (10 sekunder) som beskytter imod dropouts. CD-200SB tilbyder både balancerede og ubalancerede analog-outputs, et hovedtelefon-output med level-kontrol. Koaksiale, optiske digital-outputs sikrer integration i næsten alle omgivelser. En trådløs fjernbetjening er inkluderet.
Supported disc types: CD, CD-R and CD-RW discs (including 12cm, 8cm and multisession discs and discs with CD text) The following types of media must be formatted in FAT16 or FAT32 format: USB: (4–64 GB) SD: (2 GB) SDHC: (4–32GB)
CD-DA: 44.1kHz, 16-bit stereo
MP2: 32/44.1/48 kHz, 32–320 kbps (data CDs/SD cards/USB flash drives)
MP3: 32/44.1/48 kHz, 32–320 kbps, VBR (data CDs/SD cards/USB flash drives)
WAV: 8/16/32/11.025/22.05/44.1/12/24/48 kHz, 16-bit (data CDs/SD cards/USB flash drives)
ACC*: 32/44.1/48 kHz, 32–320 kbps, VBR (SD cards/USB flash drives)
WMA**: 32/44.1/48 kHz, 32–384 kbps, VBR (SD cards/USB flash drives)
*AAC DRM not supported
**WMA files must be compliant with Ver. 9 Standard; DRM is not supported.
Formats of dubbed files: WAV: 44.1 kHz, 16-bit stereo MP3: 44.1 kHz, 64/128/256 kbps

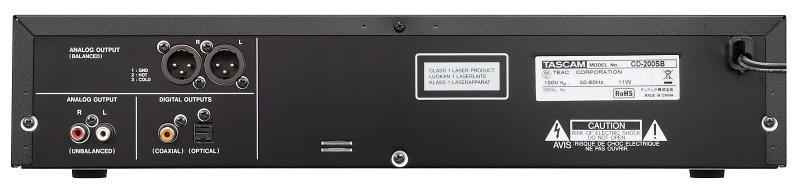

ANALOG OUTPUT (BALANCED): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Output Impedance: 200 Ω
Reference output level: +4 dBu (1.23 Vrms)
Maximum output level: +20dBu (7.75 Vrms)
ANALOG OUTPUT (UNBALANCED): RCA pin jack
Output impedance: 200 Ω
Reference output level: -10 dBV (0.32 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
PHONES output: 6.3 mm stereo phone jack
Maximum output power: 20 mW + 20 mW (THD+N 0.1%, 32 Ω )
DIGITAL OUTPUT (COAXIAL): RCA pin jack
Compatible signal format: IEC-60958-3 (S/PDIF)
DIGITAL OUTPUT (OPTICAL): Optical connector
Compatible signal format: IEC-60958-3 (S/PDIF)
Frequency response: 20 Hz - 20 kHz ±1.5 dB (playback, JEITA)
Signal-to-Noise Ratio (S/N): >90 dB (playback, JEITA)
Total Harmonic Distortion: Dynamic Range: >90 dB (playback, JEITA)
Channel Separation: >90 dB (playback, JEITA)
Power Requirement: AC 120 V, 60 Hz (U.S.A./Canada) AC 230 V, 50 Hz (U.K./Europe) AC 240 V, 50 Hz (Australia)
Power consumption: 11 W
Dimensions (W x H x D): 481 x 95 x 298 mm
Weight: 4.7 kg
Operating temperature: 5 to 35 ºC
Inclination of installation: 5º or less
