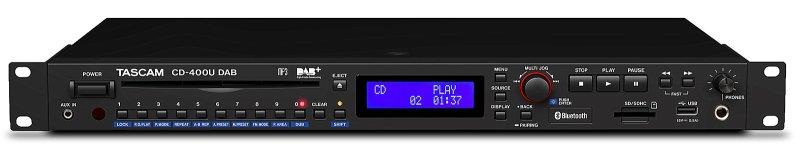

Tascam CD-400U DAB
CD-400UDAB er en kompakt rackmonterbar medieafspiller, der kan afspille tracks fra cd, USB-hukommelses-enheder, SD-kort og Bluetooth-enheder. Den indeholder også en FM/DAB + tuner med 20 forudindstillinger til at afspille musik fra radiostationer og en mini-jack-indgang på frontpanelet til at forbinde enheder som bærbare musikafspillere. Tuneren har sin egen udgang, så det er muligt at få forskellig lyd/musik i to lokaler.
Fjernbetjening er mulig med den medfølgende trådløse RC-CD400 og ved seriel kontrol via den indbyggede RS-232C-port.
Denne all-in-one cd-afspiller er egnet til en bred vifte af applikationer, fra baggrundsmusik i restauranter eller små butikker til brug i offentlige faciliteter.
Ultra-compact, rack-mountable media player with DAB+/FM tuner and Bluetooth receiver
Various playback options: Audio CD playback
MP3 and WMA file playback from CD
Audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)
DAB+/FM radio playback (can be output from the main or separate output connectors)
Playback via Bluetooth connection with a smartphone or computer
Playback from other audio sources via AUX IN connector
CD standards supported: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
Slot-loading CD drive mechanism
Numeric keys for direct track selection
Playback modes include Continuous, Single, Random
Repeat playback (All, Single, A–B)
Incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)
Resume function (start playback from the track where the unit was last stopped)
Folder playback with SD and USB memory
Dubbing from CD or tuner to SD or USB memory (MP3 format)
Time display (track elapsed / track remain / total elapsed / total remain)
Power-on play (timer function)
Lock function to avoid accidental operation
Anti-shock memory
XLR balanced analogue output (main)
RCA unbalanced analogue output (main)
RCA unbalanced analogue output (tuner)
Remote control via RS-232C serial connector (D-sub 9-pin)
Optional Ethernet interface card (IF-100E) available for external control over a network (Telnet protocol)
Headphones output with dedicated volume control
Backlit LC display
Wireless remote control included
Included accessory: Removable mains power cable, RC-CD400 wireless remote control, rack-mounting screw kit, FM antenna, owner’s manual with warranty
General
Supported media
USB memory 512 MB – 64 GB
SD card 512 MB – 2 GB
SDHC card 4–32 GB
CD CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
Supported file systems FAT16, FAT32
Supported file formats
CD-DA 44.1 kHz, 16 bit
MP3 44.1 / 48 kHz, 32–320 kbit/s and VBR (MPEG1/2 Audio Layer 3)
WAV (USB/SD only) 44.1/48 kHz, 16 bit
WMA 44.1/48 kHz, 32–320 kbit/s and VBR (WMA v9 standard, DRM not supported)
AAC (USB/SD only) 44.1/48 kHz, 8–320 kbit/s and VBR (MPEG4 AAC-LC audio stream)
Number of audio channels 2 channels (stereo), 1 channel (mono)
Recording file format MP3 (44.1 kHz, 96/128/192/320 kbit/s)
Bluetooth receiver
Bluetooth version v4.2
Output class Class 2
Supported profiles A2DP, AVRCP
Supported A2DP codecs SBC, AAC, aptX
Supported A2DP content protection SCMS-T
Tuner
Frequency range FM: 87.5–108 MHz
DAB: Band III, 174–240 MHz
Antenna connector F-type (female), 50 Ω, unbalanced
Analogue audio inputs and outputs
AUX analogue audio input (unbalanced) 3.5-mm TRS mini-jack
Nominal input level –20 dBV (0.1 Vrms)
Maximum input level –4 dBV (0.63 Vrms)
Input impedance ≥10 kΩ
Main analogue audio outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level +4 dBu (1.23 Vrms, Output Attenuation: 0 dB)
Maximum output level +20 dBu (7.75 Vrms, Output Attenuation: 0 dB)
Output impedance 100 Ω
Main analogue audio outputs (unbalanced) RCA
Nominal output level –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
Output impedance 200 Ω
Tuner analogue audio outputs (unbalanced) RCA
Nominal output level –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
Output impedance 200 Ω
Headphones output 6.3 mm stereo jack
Maximum output power ≥20 mW + 20 mW (THD+N ≤0.1 %, 32 Ω load)
Control I/O
RS-232C D-sub 9 pin
Audio performance
Frequency response 20 Hz – 20 kHz, ±1 dB (Fs: 44.1 kHz, 48 kHz, JEITA)
Total harmonic distortion ≤0.005 % (JEITA)
S/N ratio ≥95 dB (JEITA)
Dynamic range ≥90 dB (JEITA)
Channel crosstalk ≥90 dB (JEITA)
Power supply and other specifications
Mains power AC 100–240 V, 50/60 Hz
Power consumption 20 W
Overall dimensions (W × H × D) 483 mm × 47 mm × 296 mm
Weight 3.3 kg
Operating temperature range 5–35 °C
Included accessories Removable mains power cord, wireless remote control (RC-CD400), rack-mounting screw kit, FM antenna, owner’s manual/warranty
Optional accessory IF-E100 Ethernet option card, allows the unit to be controlled over a network (Telnet protocol)
