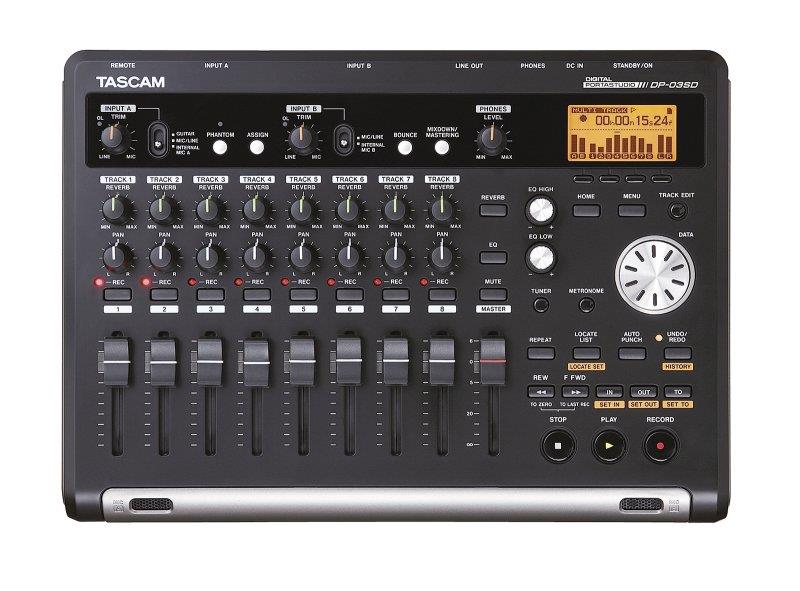

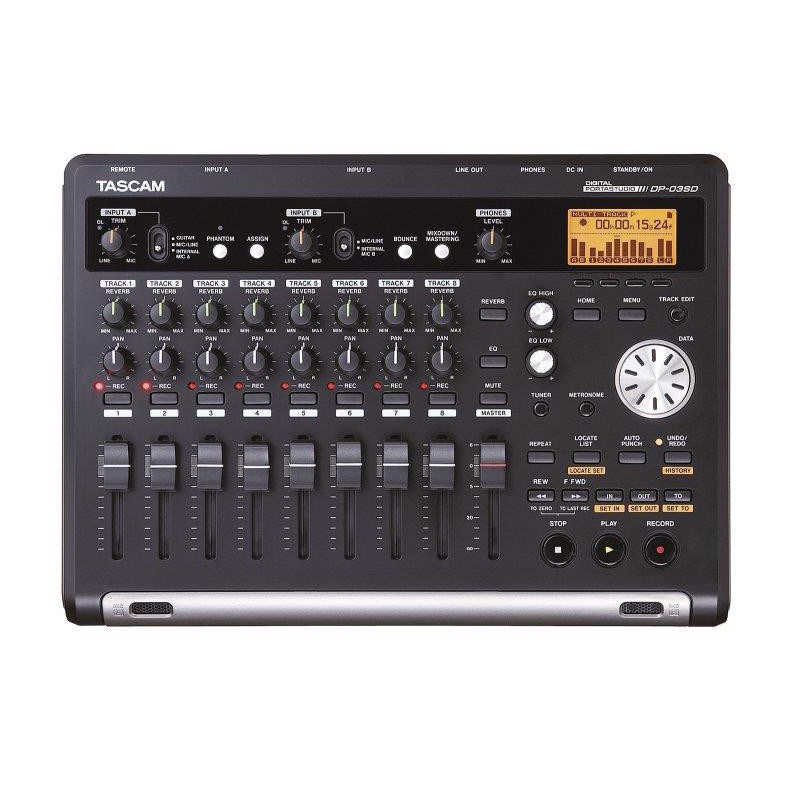

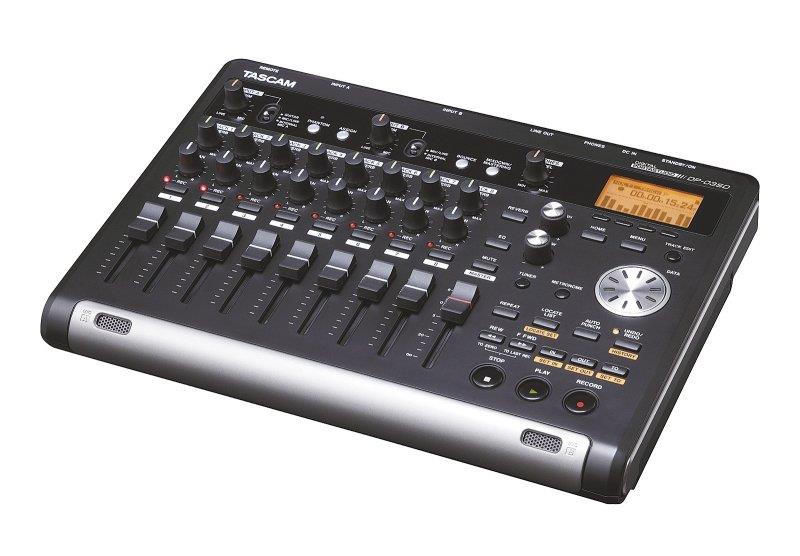

Tascam DP-03SD Digital 8 track recorder
DP-03SD er en 8-spors digital Portastudio med recording/playback på 44,1 kHz, 16 bit og SD/SDHC-hukommelseskort. Den kan optage på to spor på en gang, enten et i stereo, eller to i mono. Enheden tilbyder samtidig playback af alle otte spor og en indbygget kondensatormikrofon. Den tilbyder også to XLR-mikrofon-inputs med phantom-power, indbygget tuner og metronom, en USB 2.0 port til overførsel af wave-filer til/fra en computer.
Recording media: SD card (512 MB – 2 GB) or SDHC card (4–32 GB)
File system: MTR partition: TASCAM original, FAT partition: FAT32
Microphones: 2 x Omni-directional condenser microphone
Inputs A and B, balanced: XLR
Nominal input impedance: 2.4 kΩ
Nominal input level: -16 dBu
Maximum input level: 0 dBu
Input A, balanced: 6.3 mm TRS jack
When INPUT A switch is set to MIC/LINE
Nominal input impedance: ≥10 kΩ
Nominal input level: +4 dBu
Maximum input level: +24 dBu
When INPUT A switch is set to GUITAR
Nominal input impedance: ≥1 MΩ
Nominal input level: -2 dBV
Maximum input level: +14 dBV
Input B, balanced: 6.3-mm TRS jack
Nominal input impedance: ≥10 kΩ
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Line Output: RCA (unbalanced)
Nominal output impedance: 1 kΩ
Nominal output level: -10 dBV
Maximum output level: +6 dBV
Phones Output: 6.3-mm stereo jack
Maximum output power: 40 mW + 40 mW (THD+N: ≤0.1 %, into 32 Ω)
USB port: Mini-B type USB connector
Format: USB 2.0 HIGH SPEED, mass storage class
REMOTE port: 2.5-mm jack (for RC-3F footswitch)
Frequency response: 20 Hz – 20 kHz, +1 dB/–3 dB
Signal-to-noise ratio: ≥90 dB
Total harmonic distortion: ≤0.01 %
Windows: Pentium 300 MHz or faster, 128 MB or more memory, USB port (USB 2.0 recommended)
Mac: Power PC, iMac, G3, G4 266 MHz or faster, 64 MB or more memory, USB port (USB 2.0 recommended)
Recommended USB host controller: Intel chipset
Supported operating systems: Windows XP, Windows Vista, Windows 7, Windows 8 (including 8.1), Mac OS X 10.2 or later
External power adapter: TASCAM PS-1225L (included)
AC input: 100–240 V AC, 50/60 Hz, 1 A
DC output: 12 V, 2.5 A
Power consumption: 5 W
Dimensions (W x H x D): 290 x 54 x 207 mm
Weight: 1.4 kg
Operating temperature range: 5–35 °C
