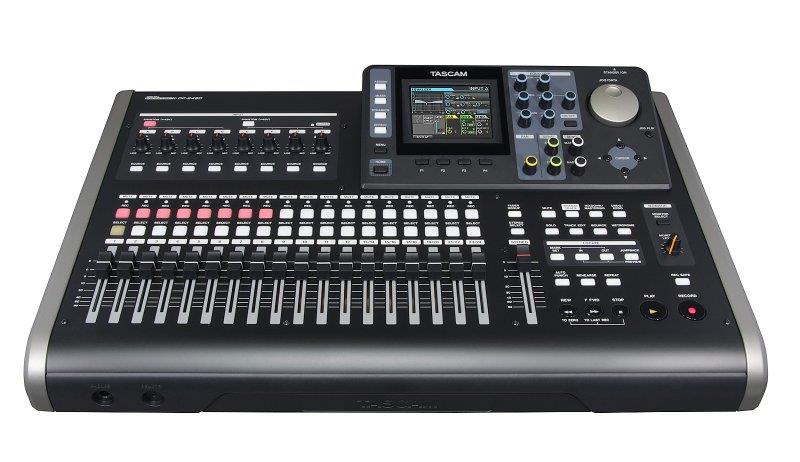

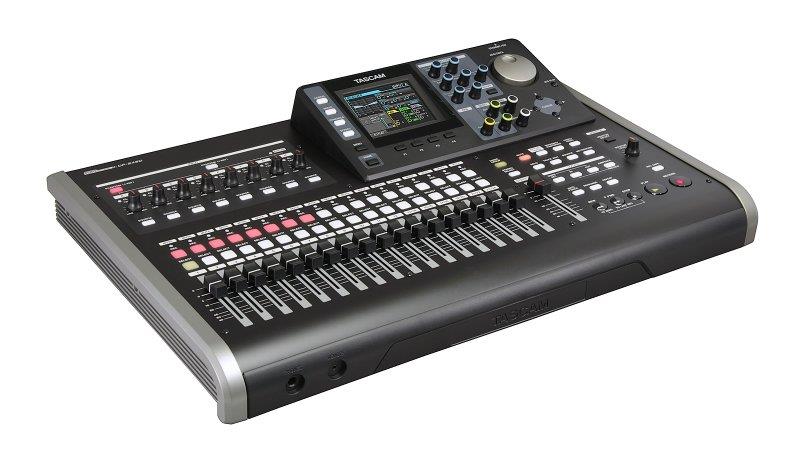

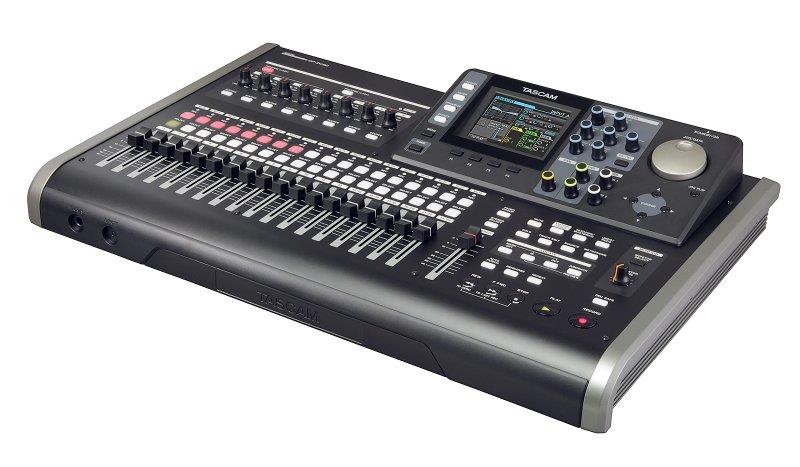

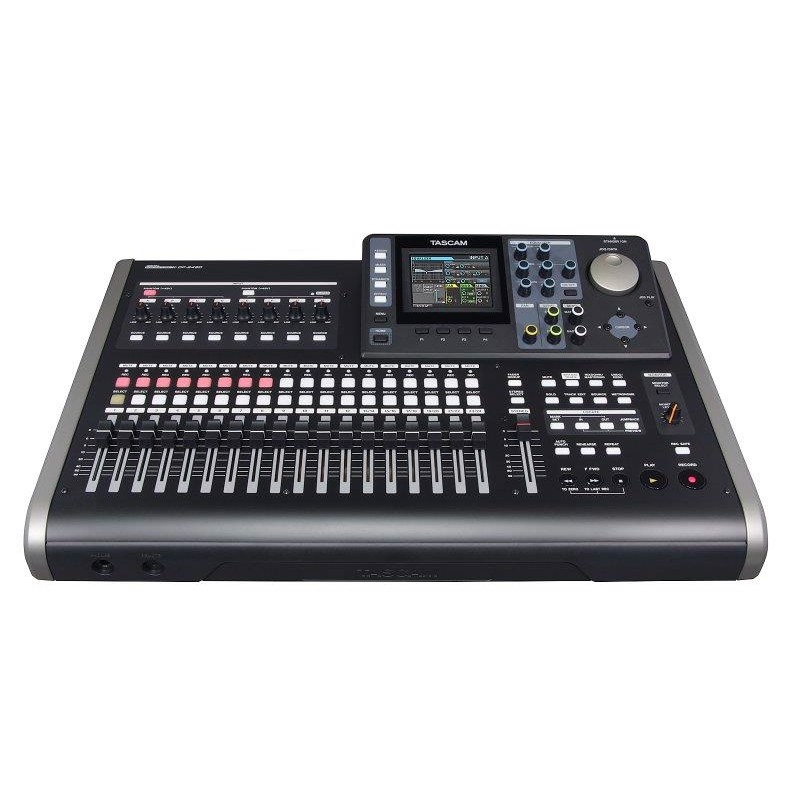

Tascam DP-24SD Digital 24 track recorder
DP-24SD er en 24-spors Digital Portastudio med et SD-hukommelseskort, et farve-LCD og channel-strip-kontrol. Den kan optage op til otte spor samtidigt. Input-processering som kompression og limiting er tilgængelig under optagelse, såvel som guitar-amp-simulation og multi-effekter som bruges sammen med instrument-level-input. Optagede spor kan ses på det store display og mixes. Det færdige spor kan overføres til en computer via USB.
Recording media: SD card (512 MB to 2 GB), SDHC card (4–32 GB)

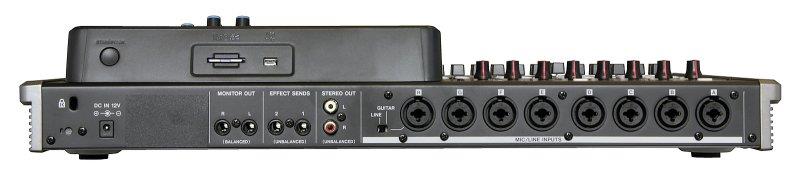

MIC/LINE INPUTS A to H
XLR connector (balanced): XLR-3-31 (1: GND, 2: HOT, 3:COLD)
Input impedance: 2.4 kΩ
Nominal input level: -14 dBu
Maximum input level: +2 dBu
Phone connector (balanced): 6.3-mm TRS phone jack
Input impedance. >22 kΩ, INPUT H, when LINE-GUITAR switch is set to GUITAR: 1 MΩ
Nominal input level: +4 dBu
Maximum input level: +20 dBu
Stereo output (L/R): RCA pin jack
Nominal output level: -10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ω
Effect sends 1/2: 6.3-mm TS phone jack
Nominal output level: -10 dBV
Maximum output level: +6 dBV
Output impedance: 200 Ω
Monitor output L/R: 6.3-mm TRS phone jack
Nominal output level: -2 dBu
Maximum output level: +14 dBu
Output impedance: 200 Ω
Headphones output: 6.3-mm TRS phone jack
Maximum output power: 70 mW + 70 mW or more (THD + N 0.1% or less, 32 Ω load)
USB port: USB 4-pin mini-B type
Format: Mass Storage Class USB 2.0 High Speed
Remote connector: 2.5-mm TRS jack
Frequency response: 20 Hz to 20 kHz, +1 dB/–1 dB, INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Distortion: ≤0.01%, INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
S/N ratio: >90 dB, INPUT (MIC/LINE) to STEREO OUT/EFFECT SENDS/MONITOR OUT
Windows: Pentium 300 MHz or faster, 128 MB or more memory
Mac: Power PC, iMac, G3, G4 266 MHz or faster, 64 MB or more memory
Recommended USB port: USB 2.0
Recommended USB host controller: Intel chipset
Supported operating systems: Windows 8 (including 8.1), Windows 7, Windows Vista, Windows XP, Mac OS X 10.2 or later
Power requirements: AC adapter (GPE248-120200-Z)
Power consumption: 12 W (Phantom power on)
Dimensions (W x H x D): 104 x 514 x 340 mm
Weight: 5.8 kg
Operating temperature range: 5–35 °
