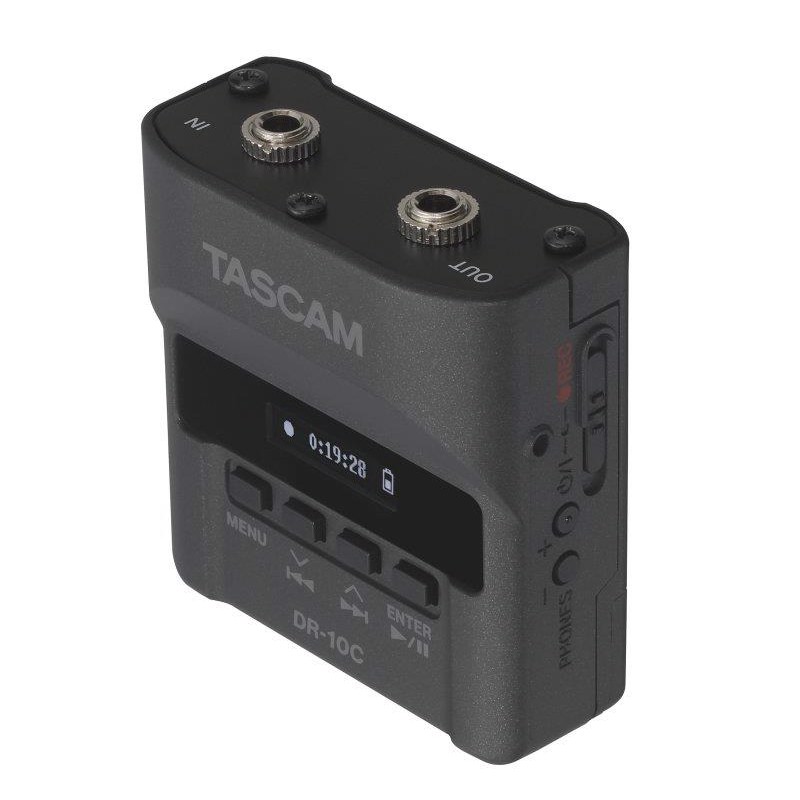

Tascam DR-10CH recorder til Shure lavalier
DR-10C-seriens optagere kan forbindes til lavalier-mikrofoner for at skabe et kompakt optagelsessystem. Enhederne har både inputs og outputs så de kan bruges alene, eller sammen med en trådløs transmitter. Når de bruges med en transmitter opfører de sig som en backup som beskytter imod trådløse dropouts under optagelser. Den letvægtige DR-10C kan benyttes i timevis på bare et AAA-batteri. Den optager til microSD media. Optagelsesegenskaberne inkluderer auto-gain og et low-cut filter. Enhedens Dual-Recording-egenskab optager et sikkerhedsspor på et lavere niveau i tilfælde af forvrængning.
Recording media: microSD card (64 MB – 2 GB), microSDHC card (4–32 GB)
Recording and playback formats: Mono WAV files (BWF format), 48 kHz, 24 bit
Analogue input (microphone): DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock), DR-10CH (for Shure): Mini XLR 4-pin male
Maximum input level: -12 dBV
Minimum input level: -53 dBV
Mic input gain: 10 dB to 35 dB (according to MODEL SELECT setting)
Input impedance: 33 kΩ or higher
Analogue output (passed to the transmitter): DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock), DR-10CH (for Shure): Mini XLR 4-pin male
Analogue output (Headphones jack): 3.5-mm mini stereo jack (dual mono audio output)
Frequency response: 20 Hz – 22 kHz, +1/-3 dB
Distortion: 0.05 % (1 kHz sine wave, maximum input level)
S/N ratio: 88 dB or higher (PHONES level max., MIC GAIN set to LO)
Supported operating systems: Windows 7, Windows 8 (including 8.1), OS X Mavericks (10.9), OS X Mountain Lion (10.8)
Power supply: 1 AAA battery (alkaline, NiMH or lithium), USB bus power from a computer
Power consumption: 0.45 W (maximum)
Current consumption （USB bus power): 0.25A (maximum)
Date and time data retention: Secondary lithium battery (built-in)
Dimensions (W x H x D): 52 x 56 x 25 mm (excluding protrusions)
Weight: 63 g (with battery), 51 g (without battery)
Permissible operating temperature range: 0-40 °C
