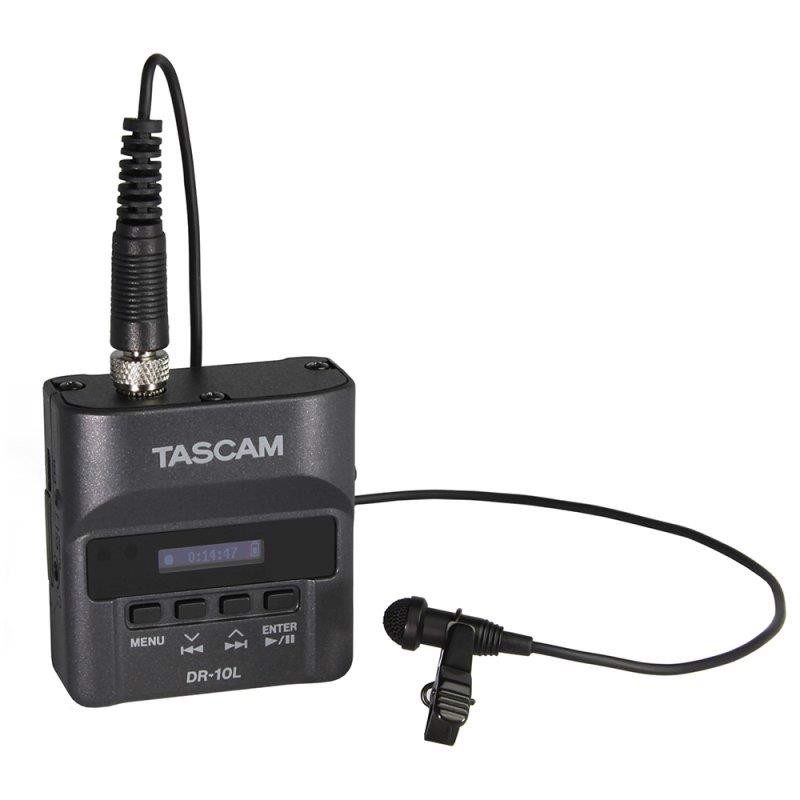

Tascam DR-10L recorder med lavalier mikrofon
DR-10L er en kombination af audio-recorder og en high performance lavalier-mikrofon i et handy ultrakompakt system, der giver professionelle lydoptagelser – hvilket gør booms og dyre trådløse systemer overflødige. Lavalier-mikrofon er monteret med mini-Jack-stik med omløber og dermed kompatibelt med de fleste Sennheiser lavalier-mikrofoner ogandre mikrofoner med samme stik.
DR-10L har flere funktioner til at forhindre forvrænget lyd:
Dual Recording – to samtidige optagelser på forskellige niveauer, på den måde har man et sikkerhedsspor i tilfælde af forvrængning på den ene lydspor. Autolevel og Limiter: Hvis lydstyrken for indgangssignalet er for lav eller for høj, øges eller formindskes optagelsesniveauet til en passende værdi. Limiteren forhindrer forvrængning forårsaget af pludselige input overloads.Med disse funktioner høver du ikke bekymre dig omindspilningsniveauindstillinger.
Auto-save funktion: Du kan altid overvåge batteriniveauet på den OLED-skærmen, men er batteriet ved at løbe tør, gemmer DR-10L en kopi af dine data/optagelser før systemet slukker. På Alkaline AAA batteri kan DR-10L køre i op til 10 timer kontinuerligt. Du kan også bruge éngangs lithium-batterier eller genopladelige NiMH-batterier.

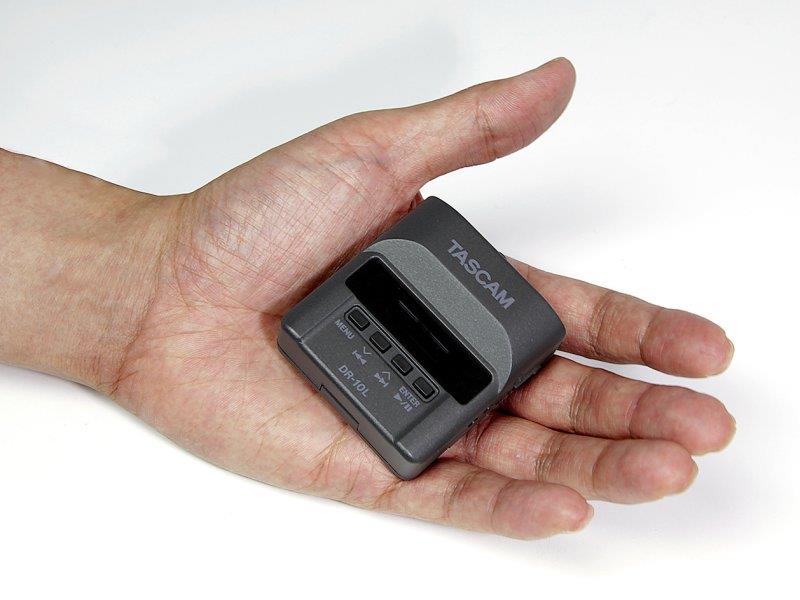

DR-10L er lille og vejer kun 63 gram inklusiv batteri.
Optager på microSD-/microSDHC-kort. (Op til 32 GB)
Leveres med mikrofon-clip, pop-filter. Kabellængde: 160 cm.
Se anmeldelse fra AVM her: http://www.avm.dk/artikel/visartikel.php?artikelnummer=7344
Linear PCM mono/poly recording at 44.1/48 kHz, 16/24 bits
Records to microSD/microSDHC card (up to 32 GBytes)
Recording format: WAV (compatible with BWF format)
Switchable limiter to prevent clipping
Switchable low-cut filter to reduce low-frequency noise
Low/Mid/High/High+ recording level settings
Automatic level control available
Dual recording function allows two files to be recorded simultaneously at different levels to provide a safety track in case of distortion

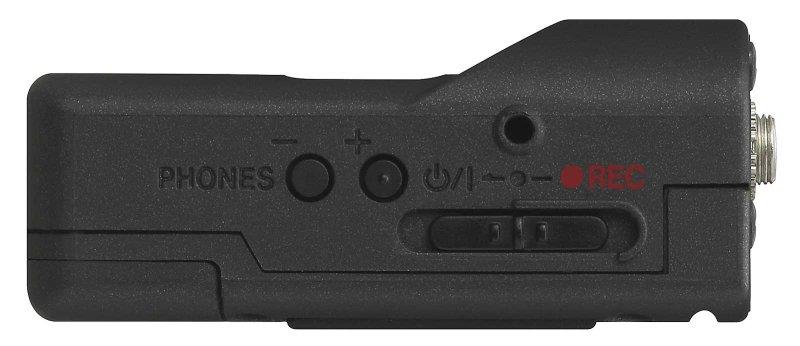

Sliding record switch and hold function to prevent misoperation during recording
Automatic file closing function to prevent the loss of already recorded data
Built-in clock function, supports BWF files with included time information – convenient for editing and searching
Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
Playback function allows recorded data to be checked immediately
Headphones output

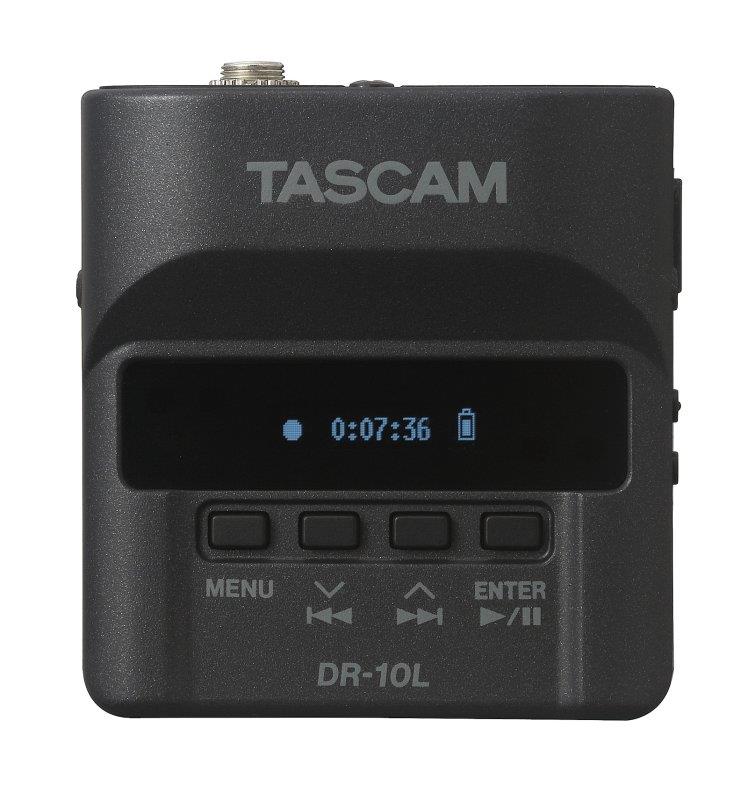

High-contrast, easy-to-read OLED display
Micro USB-B connector for easy data transfer with a computer
Records at least 10 hours on a single AAA battery using alkaline batteries (Evolta)
Settings can be created as a text file on a computer and transferred to the recorder via USB
Firmware can be updated using a microSD card

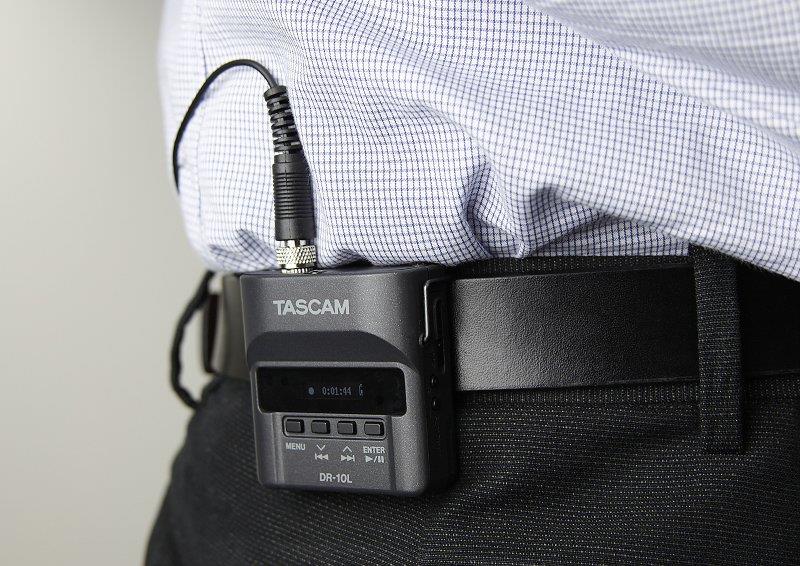

Belt clip included
Custom case for storing the unit and accessories included
General
Recording media microSD card (64 MB – 2 GB) microSDHC card (4–32 GB)
Recording and playback formats Mono/poly WAV files (BWF format), 44.1/48 kHz, 16/24 bits
Analogue audio inputs and outputs
Microphone input 3.5-mm mini TRS jack (with screw lock)
Maximum sound pressure level (mic) 115 dB SPL
Minimum input level –55 dBu (Gain H+)
Maximum input level –15 dBu (Gain L)
Gain range 14–38 dB
Nominal input impedance 33 kΩ (Mic bias off)
2 kΩ (Mic bias on)
Analogue output (Headphones jack) 3.5-mm mini stereo jack (dual mono audio output)
Audio performance
Frequency response (input to phones output, 10 kΩ load) 20 Hz – 22 kHz, +1/–2 dB
Distortion 0.05 % (1 kHz sine wave, maximum input level)
S/N ratio 88 dB or higher (phones level max., MIC GAIN set to L)
Power supply and other specifications

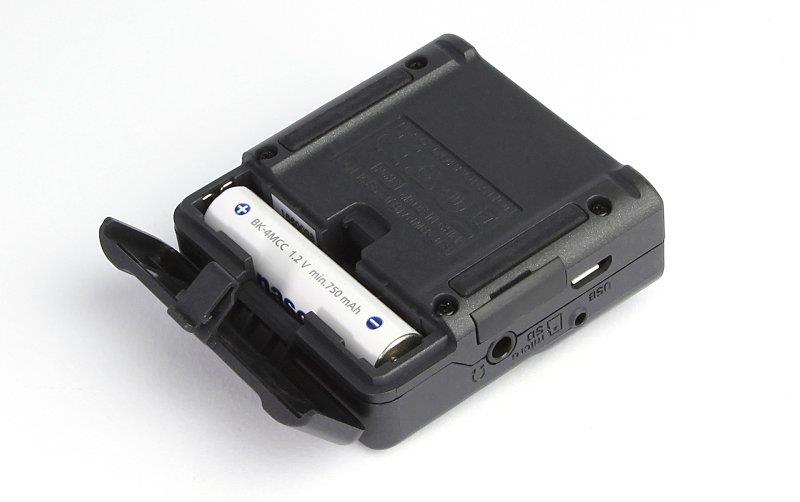

Power supply 1 AAA battery (alkaline, NiMH or lithium)
USB bus power from a computer
Power consumption 0.45 W (maximum)
Current consumption (USB bus power) 0.25 A (maximum)
Date and time data retention Secondary lithium battery (built-in)
Dimensions (W × H × D) 52 mm × 56 mm × 25 mm (excluding protrusions)
Weight 63 g (with battery)
51 g (without battery)
Permissible operating temperature range 0-40 °C
