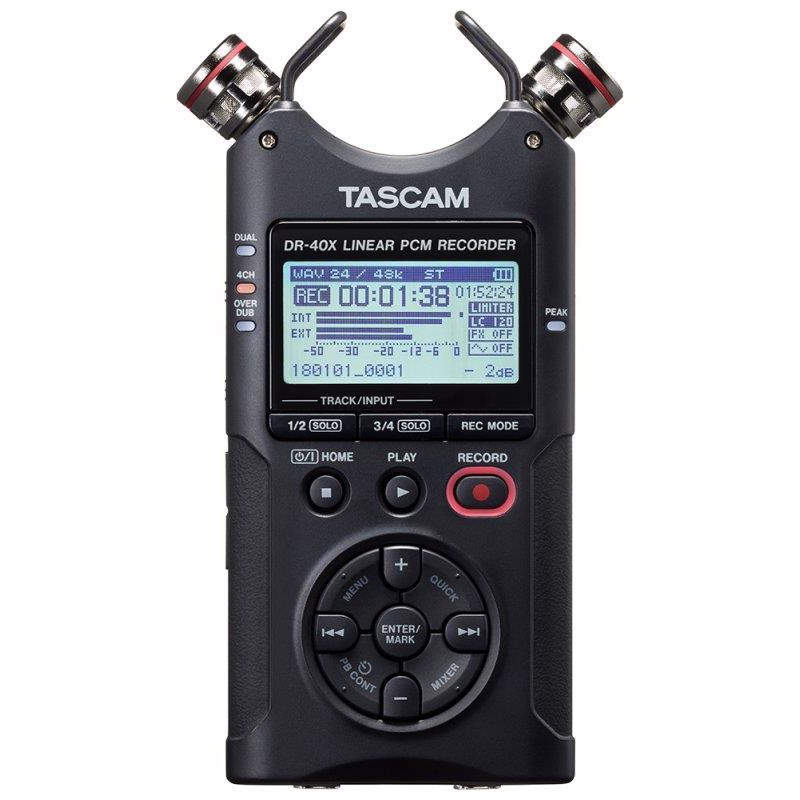

Tascam DR-40X håndholdt stereo optager
DR-40X er en alsidig fire-spors lydoptager til musik, podcasting, film og alle andre projekter, der kræver lyd af høj kvalitet. Baseret på den meget succesfulde Tascam DR-40, tilføjer denne nye model flere nye funktioner til det allerede omfattende funktionssæt.

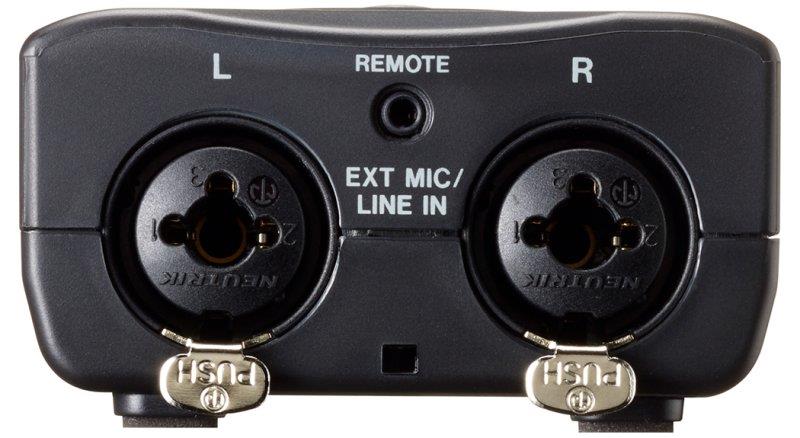

Et par cardioide kondensatormikrofoner håndterer selv høje lydtryks-niveauer og kan indstilles i AB eller XY retning til et bredt stereofelt eller ekstra klar gengivelse med reduceret faseforskydning mellem begge kanaler. Brugere kan også bruge deres egen mikrofon eller line-level kilde via dual Neutrik XLR / TRS combo jacks, der understøtter både mic niveau og +4 dBu linjeniveau fra mixere eller FOH konsollen.
Mikrofon preamps omfatter 48 volt phantom power og masser af gain for at fange alt fra hvisken til høje lyde.
Ved hjælp af indbyggede stereo-mikrofoner kan du indspille omgivende lyd fra publikum, mens du optager direkte fra en ekstern konsol, hvilket er ideelt til live forestillinger. Som sin forgænger tilbyder DR-40X også optagelse på to niveauer, en funktion, der hjælper med at undgå forvrængning ved at lave en anden optagelsesfil, oprettet med en lavere indstilling.
Designet på DR-40X er blevet opdateret for at være hurtig og nem at arbejde med. Funktioner som optagelse, justering af niveauer, sletning af optagelser og tilføjelse af markører er blot et tryk på knap. Menuer er tilgængelige på engelsk, spansk, portugisisk, fransk, italiensk, tysk, russisk, kinesisk, koreansk, japansk. Tre forskellige automatiske niveau-indstillinger (Limiter, Peak Reduction, Auto Level) kan bidrage til at forhindre utilsigtetforvrængning under optagelse. Du kan anvende en ud af seks rumklangseffekter til indgangseller udgangssignalet, og en Overdub-funktion tillader stemmer eller instrumenter at blive tilføjet til eksisterende lydfiler. Der er også en Level Align-funktion, der gør det muligt at udjævne eventuelle pludselige udsving i volume under afspilning, og der er indbygget en indbygget højttaler til hurtig tilbagekald (check-back).
Andre funktioner som variabel audition med lav hastighed, lavfiltrering, kromatisk tuner og mere kan vælges fra menuen. Den nye dikta-tilstand gør det muligt at springe frem og tilbage i forudvalgte trin, mens du afspiller en fil. Det kan kombineres med hastighedsstyring og en speciel diktat EQ, der gør det nyttigt at transkribere minut-optagelser, som for eksempel den nye ”tape”-stil; Overwrite-tilstand – med et niveau af fortrydelse – giver brugeren mulighed for at vælge en indløbstid og erstatte en del af en eksisterende optagelse.
Bortset fra håndholdt optagelse kan DR-40X også bruges som USB audio-interface med to indgange og udgange, hvilket gør det til et stærkt, men nemt værktøj til voiceover, live streaming, podcasting og songwriting med lyd i studie-kvalitet.
Portable, high-quality handheld recording
Compact size and easy operation
SD/SDHC/SDXC cards can be used as recording media (up to 128 GB)
Supported audio formats: Linear PCM (WAV/BWF format) at 44.1/48/96 kHz and 16/24-bit
Compressed (MP3 format): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
Can be used as a USB audio interface with Mac and Windows computers (two inputs, two outputs)
Recording
Built-in cardioid stereo condenser microphone Accepts high sound pressure level up to 125 dB

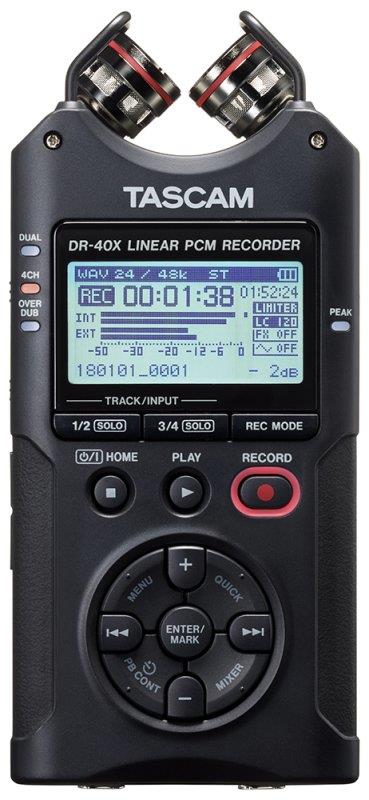

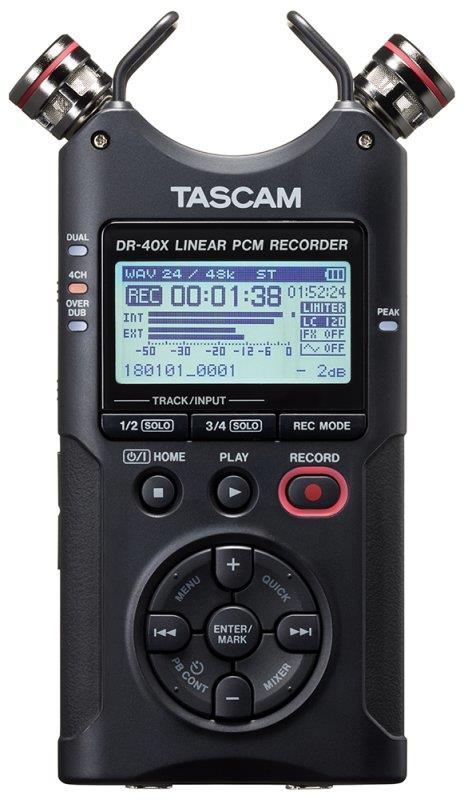

Easy setup (AB and XY configuration supported)
XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
Good directivity and channel separation
Ideal for live music and field recording, news gathering, music training etc.
MS decoder for recordings created with mid/side microphone configuration
Stereo XLR/TRS mic/line input with phantom power (supports +4 dB line level input)
4-track recording Create two stereo recordings from the built-in microphones and the external mic/line input at the same time
Create two stereo recordings with different level settings from the built-in microphones or external mic/line input at the same time
Non-destructive overdub: Record a mix of one or two stereo playback files and a stereo input signal to a new stereo file or record only the input signal while playing back one stereo file
Mixdown feature with level, pan and effect controls for each track (creates a stereo track from a 4-track recording)
Overwrite function for punch-in recording with one level of Undo
Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz, 220 Hz)
Manual or automatic recording level setting
Three Options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
Auto recording start and stop by input level
Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
Create a new file during recording (manually or by file size
Mark function (manual or automatic, up to 99 marks for each file)
Playback
Automatic level align allows to increase the perceived overall sound pressure during playback
Variable speed audition to change the playback tempo without affecting the key (50–150 %)
Repeat function (repeat one track or all tracks)
Loop function (repeat a marked section)
Playlist feature to play files in a certain order
Resume function (start playback from the audio position where the unit was last stopped)
Jump back function to instantly review playback (1–10, 20, 30 seconds)
Equalizer for tone control during playback
MP3 ID3 tag display (up to version 2.4)
Built-in monitor loudspeaker
Headphones/Line output
Other features
Built-in reverb effect (6 presets, can be applied to input or output signal)
Chromatic tuner function to tune your instrument
File divide function to cut unwanted noise or to extract parts from long recordings (WAV format only)
Folder management to organize your files
Hold function to avoid inadvertent operation
QUICK menu button for easy access to various functions
Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Russian, Korean, Japanese, Chinese
Clear, backlit LC display
USB 2.0 port for file transfer to/from computer
Power supply by 3 AA size Alkaline or NiMH batteries (up to 15 hours continuous operation with phantom power off), USB bus power or optional AC adapter (Tascam PS-P520E)
Long-time operation of over 20 hours is possible using just the internal batteries
Rubber feet included for improving the acoustic properties during desktop recordings
Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
Optional footswitch (RC-3F) and wired remote control (RC-10)
Specifications
General
Recording media microSD card (64 MB – 2 GB)
microSDHC card (4–32 GB)
microSDXC card (48–128 GB)
Recording/playback formats BWF: 44.1/48/96 kHz, 16/24 bit
WAV: 44.1/48/96 kHz, 16/24 bit
MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kbit/s
Number of channels 4 channels (2 × stereo)
Audio inputs and outputs
External Mic/Line input XLR/jack combo connectors
(XLR can provide phantom power)
Headphones / Line output 3.5-mm stereo mini jack
Built-in loudspeaker 0.3 W (mono)
Control inputs/outputs
USB port Micro-B connector
Format USB 2.0 High Speed mass storage class
REMOTE connector 2.5-mm TRS jack
Audio performance
Frequency response 20 Hz – 20 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 44.1 kHz, JEITA)
20 Hz – 22 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 48 kHz, JEITA)
20 Hz – 40 kHz +1/−3 dB
(MIC/EXT IN to LINE OUT, Fs 96 kHz, JEITA)
Total harmonic distortion ≤0.05 %
(MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
S/N ratio ≥92 dB
(MIC/EXT IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
Note: JEITA indicates compliance with JEITA CP-2150
Approximate battery operation time (continuous operation)
Alkaline batteries (Evolta)
WAV, 96 kHz, 24 bit 14:30 (two-track recording with built-in mics)
WAV, 44,1 kHz, 16 bit 18:00 (two-track recording with built-in mics)
6:30 (Phantom power, 48 V, 2 × 3 mA)
MP3, 44,1 kHz, 128 kbit/s 16:00 (two-track recording with built-in mics)
WAV, 96 kHz, 24 bit 8:30 (four-track recording with built-in mics and line input)
WAV, 44,1 kHz, 16 bit 9:00 (four-track recording with built-in mics and line input)
MP3, 44,1 kHz, 128 kbit/s 9:00 (four-track recording with built-in mics and line input)
WAV, 96 kHz, 24 bit 14:00 (two-track playback using headphones)
WAV, 44,1 kHz, 16 bit 19:30 (two-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 16:30 (two-track playback using headphones)
WAV, 96 kHz, 24 bit 14:00 (four-track playback using headphones)
WAV, 44,1 kHz, 16 bit 16:00 (four-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 16:30 (four-track playback using headphones)
NiMH rechargeable batteries (Eneloop)
WAV, 96 kHz, 24 bit 11:00 (two-track recording with built-in mics)
WAV, 44,1 kHz, 16 bit 16:00 (two-track recording with built-in mics)
5:30 (Phantom power, 48 V, 2 × 3 mA)
MP3, 44,1 kHz, 128 kbit/s 12:30 (two-track recording with built-in mics)
WAV, 96 kHz, 24 bit 7:30 (four-track recording with built-in mics and line input)
WAV, 44,1 kHz, 16 bit 7:30 (four-track recording with built-in mics and line input)
MP3, 44,1 kHz, 128 kbit/s 8:00 (four-track recording with built-in mics and line input)
WAV, 96 kHz, 24 bit 12:00 (two-track playback using headphones)
WAV, 44,1 kHz, 16 bit 15:30 (two-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 13:00 (two-track playback using headphones)
WAV, 96 kHz, 24 bit 11:30 (four-track playback using headphones)
WAV, 44,1 kHz, 16 bit 12:30 (four-track playback using headphones)
MP3, 44,1 kHz, 128 kbit/s 13:30 (four-track playback using headphones)
Power supply and other specifications
Power requirements 3 AA batteries (alkaline or NiMH)
USB bus power from a computer
AC adapter (Tascam PS-P520E, sold separately)
Power consumption 1.7 W (maximum)
Current draw 0.34 A (maximum)
Dimensions (W × H × D) 70 mm × 155 mm × 35 mm (mics folded in)
90 mm × 155 mm × 35 mm (mics folded out)
Weight 213 g (without batteries)
282 g (with batteries)
Permissible operating temperature range 0–40 °C
