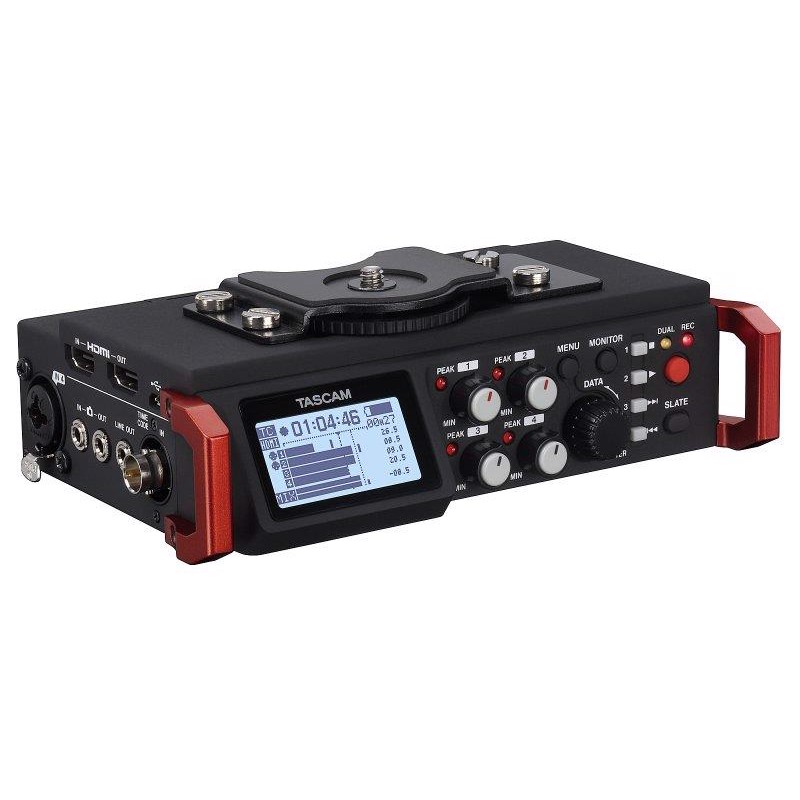

Tascam DR-701D Audio recorder til DSLR

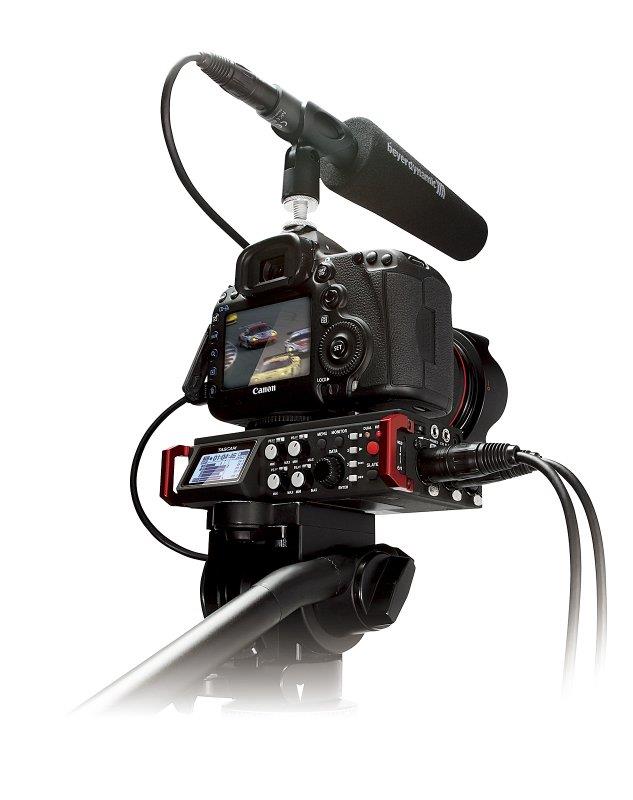

DR-701D inkluderer et timecode-input og en timecode- generator for nem synkronisering med SMPTE-generator, kamera eller smart-slate. HDMI in og out lader et DSLR-kamera optage på begge enheder og video-clock forhindrer afdrift mellem lyd og billede. Fire mikrofonsignaler kan optage individuelt og mixes til en stereo-kanal, seks optagelseskanaler ialt. Den letvægtige chassis er fremstillet fra en magnesiumlegering. Et stativ kan monteres over eller under enheden og gør den monterbar under en et kamera, eller brugbar alene. DR-701D er designet til at imødekomme professionelle filminstruktørers, TV-producenters, Reklamørers og dokumentaristers høje tekniske krav.
Recording media: SD card (64 MB − 2 GB), SDHC card (4–32 GB), SDXC card (48–128 GB)
Recording and playback formats: WAV: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz, 16/24 bit, BWF: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz, 16/24 bit
Number of input channels: 4 maximum (44.1/48/96 kHz), 2 maximum (192 kHz)
Number of recording channels: 6 maximum (44.1/48/96 kHz), 2 maximum (192 kHz)

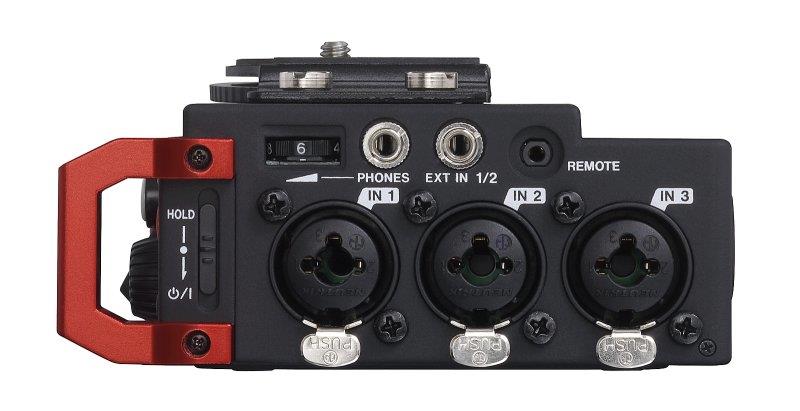

IN 1–4 combo jacks: XLR-3-31 (1: GND, 2: HOT, 3: COLD), (XLR jacks can provide phantom power), 6.3-mm standard TRS jacks, (Tip = HOT, Ring = COLD, Sleeve = GND)
Input gain set to LOW, MID, HI or HI+
Input impedance: 2 kΩ
Phantom Power: 48 V ±4 V (10 mA/channel) or 24 V ±4 V (10 mA/channel)
Maximum input level: +4 dBu
Minimum input level: -72 dBu
Mic input gain (input level knob at maximum): LOW: +20 dB, MID: +40 dB, HI: +52 dB, HI+: +64 dB
Input gain set to LINE
Input impedance: 10 kΩ or higher
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Additional input (EXT IN 1/2): 3.5-mm stereo mini jack (can provide plug-in power)
Input impedance: 10 kΩ
Maximum input level: +10 dBV
Minimum input level: -50 dBV
Mic input gain (input level knob at maximum): LOW: +3 dB, MID: +11 dB, HI: +26 dB, HI+: +38 dB
Camera input: 3.5-mm stereo mini jack
Input impedance: 10 kΩ
Nominal input level: -10 dBV
Maximum input level: +6 dBV
Headphones output (PHONES): 3.5-mm stereo mini jack
Maximum output power: 50 mW + 50 mW
Camera output: 3.5-mm stereo mini jack
Output impedance: 200 Ω
Nominal output level: -44 dBV
Maximum output level: +6 dBV
Notes: The maximum input level is the level that the input knob can be adjusted and a digital full-scale (0 dBFS) signal can be input without distorting. The minimum input level is the level that the input knob can be adjusted and a −20 dBFS signal can be input.
Line output (LINE OUT): 3.5-mm stereo mini jack
Output impedance: 200 Ω
Nominal output level: -14 dBV
Maximum output level: +6 dBV

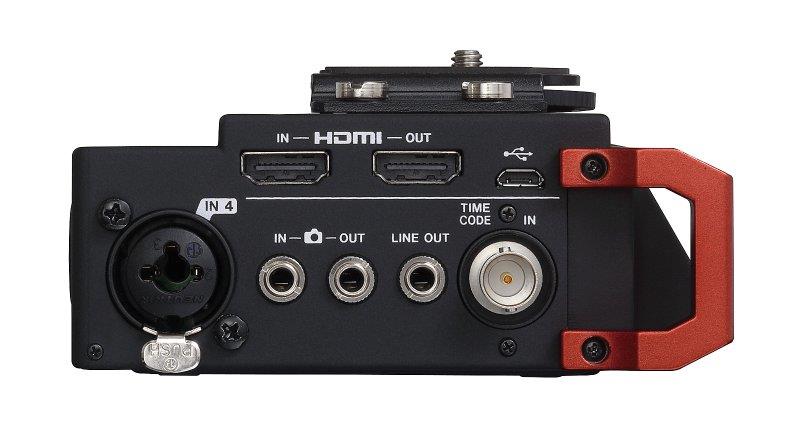

HDMI input/output (HDMI IN/OUT): Type-A receptacle
USB connector: Micro-B connector
Format: USB 2.0 High Speed, mass storage class
Timecode input (TIME CODE IN): BNC
Input signal voltage range: 0.5–5 Vpp
Input impedance: 10 kΩ
Format: SMPTE 12M-1999 compliant
REMOTE connector: 2.5-mm TRS micro jack
Frequency response: 20 Hz – 20 kHz +0.5/−1 dB (LINE IN to LINE OUT, Fs 48 kHz, JEITA), 20 Hz – 40 kHz +0.5/−1 dB (LINE IN to LINE OUT, Fs 96 kHz, JEITA), 20 Hz – 80 kHz +0.5/−5 dB (LINE IN to LINE OUT, Fs 192 kHz, JEITA)
Distortion: 0.007 % or less, (Mic input to LINE OUT, −10 dBu input, Fs 44.1/48/96/192 kHz, JEITA)
S/N ratio: 100 dB or more, (Line or Mic input to LINE OUT, Fs 44.1/48/96/192 kHz, JEITA)
Equivalent input noise (EIN): -124 dBu or less
Power supply: 4 AA batteries (alkaline, NiMH or lithium), AC adapter (Tascam PS-P515U, sold separately) or USB connection, External battery pack (Tascam BP-6AA, sold separately)
Power consumption: 6.5 W (maximum)
Current consumption (USB connection): 1.3 A (maximum)
Dimensions (W x H x D): 169 x 57 x 114 mm (with camera adapter attached)
Weight: 654 g (including batteries), 561 g (excluding batteries)
Permissible operating temperature range: 0–40 °C
