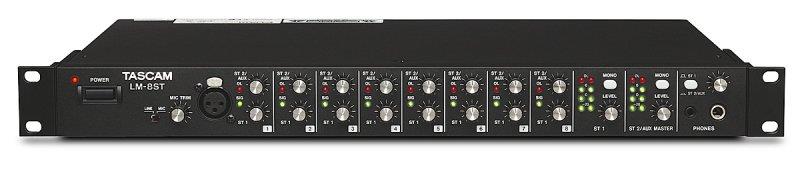

Tascam LM-8ST Line mixer 8 stereo kanaler
LM-8ST er en kompakt line-mixer til installering, studio submixing og til enhver som behøver et mix af line-signaler. Otte stereo input-kilder som f.eks. CD/MP3-afspillere, tunere, instrumenter etc. kan routes uafhængigt til et par stereo-outputs. Ved det andet output kan brugeren kan vælge mellem pre- og post-fader routing. Input og output-niveaukontrol og måling holder signalerne under kontrol. Et mikrofon-input er også tilgængeligt. LM-8ST bor i en robust, rack-monterbar chassis og er udstyret med en indbygget strømforsyning.
Mic input: XLR (balanced)
Input impedance: 2.4 kΩ
Nominal input level: -58 dBu (1 mV) to -12 dBu (195 mV)
Maximum input level: +10 dBu (2.45 V)
Stereo inputs: 6.3 mm TRS (balanced)
Input impedance: 56 kΩ
Nominal input level: +4 dBu (1.23 V)
Maximum input level: +24 dBu (12.3 V)
Master bus input: 6.3 mm TRS (balanced)
Input impedance: 56 kΩ
Nominal input level: +4 dBu (1.23 V)
Maximum input level: +24 dBu (12.3 V)
ST1, ST2/AUX outputs: XLR (balanced)
Output impedance: 94 Ω
Nominal output level: +4 dBu (1.23 V)
Maximum output level: +24 dBu (12.3 V)
ST1, ST2/AUX outputs: RCA (unbalanced)
Output impedance: 200 Ω
Nominal output level: -10 dBV (0.3V)
Maximum output level: +10 dBV (3.16 V)
Bus output: 6.3 mm TRS (balanced)
Output impedance: 94 Ω
Nominal output level: +4 dBu (1.23 V)
Maximum output level: +24 dBu (12.3 V)
Headphones output: 6.3 mm TRS (stereo), 3.5 mm TRS (stereo)
Maximum output power: 250 mW + 250 mW (at 32 Ω)
Frequency response: 20 Hz–50 kHz, ±3 dB (PHONES outputs), 10 Hz–100 kHz, ±3 dB (BUSS output)
S/N ratio: ≥80 dB(A) (PHONES outputs, 20 kHz LPF), ≥80 dB(A) (BUSS output, 20 kHz LPF)
THD: ≤0.07% (PHONES outputs, when outputting 100 mW + 100 mW (32 Ω), 20Hz HPF and 20 kHz LPF), ≤0.03% (BUSS output, 20 Hz HPF and 20 kHz LPF)
Channel separation: ≥50 dB(A) (PHONES outputs, 20 kHz LPF, 1 kHz nominal input and output, 32 Ω termination), ≥70 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 Ω termination)
Crosstalk: ≥65 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 Ω termination)
Voltage requirements: AC 100–240V, 50–60 Hz
Power consumption: 15 W
Dimensions (W x H x D): 482 x 44 x 280 mm
Weight: 3.8 kg
Operating temperature range: 5–35 °C
Included items: Power cord, Rack-mounting screw kit, Warranty card, Owner’s manual
