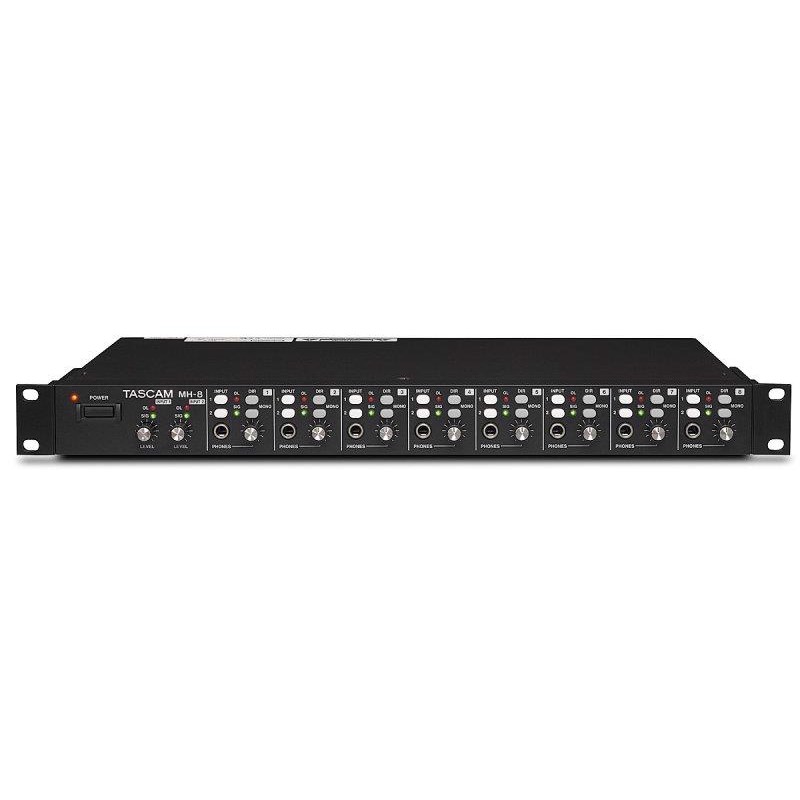

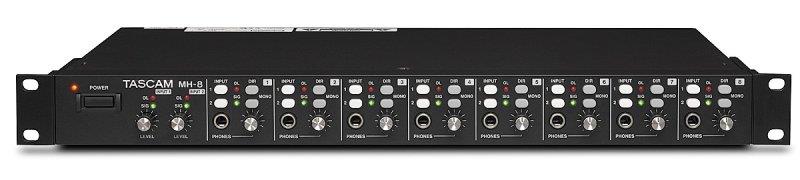

Tascam MH-8 Hovedtelefon forstærker 8 kanaler
MH-8 er den ideelle hovedtelefonsforstærker til studio'et, scenen og installationer. Hver af de otte stereo-outputs leverer 250 mW per side med tre omstillelige kilder. To stereo-inputs kan deles til begge outputs og individuelle stereo direct-inputs er tilgængelige til hver af de otte kanaler. En hovedtelefonskanal kan benytte et hvilket som helst af input'ene, eller mixe dem sammen. MH-8 bor i en robust, rack-monterbar metal-chassis med indbygget strømforsyning, ground-terminal og ground-lift-switch.

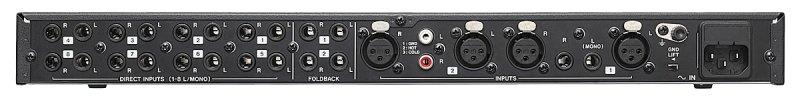

Stereo input 1/2: XLR (balanced) x 2
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Input impedance: 6k Ω
Stereo input 1: 6.3 mm TRS (balanced) x 2
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Input impedance: 56k Ω
Stereo input 2: RCA (unbalanced) x 2
Nominal input level: -10 dBu
Maximum input level: +10 dBu
Input impedance: 22k Ω
Direct inputs 1–8: 6.3 mm TRS (balanced) x 16
Nominal input level: +4 dBu
Maximum input level: +24 dBu
Input impedance: 56k Ω
Foldback outputs: 6.3 mm TRS (balanced) x 4
Nominal output level: +4 dBu
Maximum output level: +24 dBu
Output impedance: 94 Ω
Headphones outputs: 6.3 mm stereo jack x 8
Maximum output power: 250 mW + 250 mW (at 32 Ω)
Frequency response: 20 Hz – 50 kHz, ±3 dB (PHONES outputs, 100 mW, 32 Ω), 10 Hz – 100 kHz, ±3 dB (FOLDBACK outputs)
S/N ratio: ≥85 dB(A) (PHONES outputs, 20-kHz LPF), ≥90 dB(A) (FOLDBACK outputs, 20-kHz LPF)
THD: ≤0.05 % (PHONES outputs, 100 mW + 100 mW (32 Ω), 20-Hz HPF and 20-kHz LPF), ≤0.007 % (FOLDBACK outputs, 20-Hz HPF and 20-kHz LPF)
Channel separation: ≥50 dB(A) (within a channel, PHONES outputs, 20-kHz LPF,1 kHz nominal input, 32 Ω termination), ≥90 dB(A) (FOLDBACK outputs, 20-kHz LPF, 1 kHz nominal input, 600 Ω termination)
Crosstalk: ≥65 dB(A) (PHONES outputs, 20 kHz LPF, 1 kHz nominal input, 32 Ω termination)
Voltage requirements: 100–240 V AC, 50–60 Hz
Power consumption: 36 W
Dimension (W x H x D): 482 x 44 x 280 mm
Weight: 3 kg
Operating temperature range: 5 °C to 35 °C
