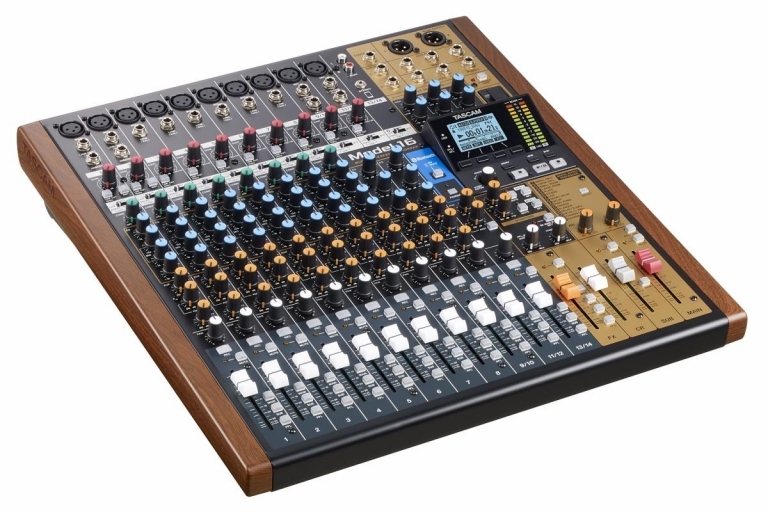

Tascam Model 16 analog mixer med Digital 16 track recorder
En alt-i-én analog mixer, multi-track digital optager og lydmixer
Tascam Model 16 alt-i-en-mixer bringer flagskibet Model 24s kraftige optagelses- og miksefunktioner og funktionalitet til et nyt niveau af kompakthed og overkommelig pris, hvilket skaber en fuldt udstyret kompakt mixer, der kombinerer den varme i analog med en digital arbejdsgang. Model 16 er den perfekte blandingsløsning til liveformat i småformater, optagelses- og produktionsmiljøer, der indeholder en multi-track recorder, USB-lydgrænseflade, effekter, omfattende mixing og routing muligheder og trådløs Bluetooth.
Med modellen 16 har din perfekte blanding opfyldt sin match.
14 Inputs for Complete Flexibility Pristine Audio Quality Professional Channel Strip Control Features Maximum Audio Routing Possibilities and Monitoring Powerful Internal 16-Track Digital Recorder High-Quality Internal Audio Interface Versatile Input Capability 16 Editable Multi-Effects 4-Band Master EQ 14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface
Rackbeslag til 19" montering medfølger ikke, kan tilkøbes som ekstra.
Mixer features
14 analogue inputs 10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels
12 balanced line inputs (8 mono, 2 stereo)
One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14)
Inserts on input channels 1 and 2
Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses
Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))
Three stereo outputs with independent master faders (Main, Sub, Control Room)
One-knob compressor for channels 1–8
Switchable low-cut filter (100 Hz) for eight mono and two stereo channels
Switchable Mute, Stereo/Sub routing and PFL on each input channel
Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels
Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs
Built-in Bluetooth receiver for wireless playback
On-board effects processor 16 effects types
Can be used on all input channels, monitor busses, sub and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
60-mm faders on each channel
12-segment LED output level meters
XLR balanced outputs for main stereo bus
TRS balanced outputs for sub, control room, monitor 1/2 and effects send
Headphones output with level control (80 mW per channel)
Recorder features
Tascam multi-track recording engine
Uses SD cards as recording media (up to 128 GB, Class 10 or higher required)
Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer
Recording format: WAV (BWF), 44.1/48 kHz, 16/24 Bit
Playback format: WAV (BWF)
Overdubbing, punch in/out recording (eight channels maximum)
Multi-track playback for advanced live performance
Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments
Audio interface features
USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
Transfer to computer: 16 channels (all 14 inputs + stereo mix)
Transfer from computer: 14 channels, assignable to each channel input
Audio resolution 44.1/48 kHz, 16/24 bit
Other features
Simple and quick menu operation with multi-jog dial
19-inch rack installation possible (with optional rackmount kit)
Internal power supply with removable power cord
Recorder
Recording media SD (512 MB – 2 GB)
SDHC (4–32 GB)
SDXC (64–128 GB)
Class 10 or higher required
File system FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
Recording file format WAV (BWF, maximum file size: 2 GB)
Playback formats WAV (BWF)
Sampling frequency 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Recordable channels 16 channels max. (14 channels + stereo mix)
Audio inputs and outputs
Microphone inputs (CH 1–8,9,11) XLR-3-31, balanced
(1: GND, 2: HOT, 3: COLD)
Maximum input level +10 dBu
Nominal input level –8 dBu
Minimum input level –58 dBu
Gain adjustable range 0–50 dB
Input impedance 1.8 kΩ
LINE inputs (CH 1–8) 6.3-mm TRS phone jack, balanced
Maximum input level +22 dBu
Nominal input level +4 dBu
Gain adjustable range –10 dB to +40 dB (CH 1–8)
–20 dB to +30 dB (CH 9, 11)
Input impedance 22 kΩ
INSERT (CH 1–2) 6.3-mm TRS phone jack
(Tip: Send, Ring: Return, Sleeve: GND)
Nominal input level 0 dBu
Maximum input level +18 dBu
Input impedance 10 kΩ
Nominal output level 0 dBu
Maximum output level +18 dBu
Output impedance 100 Ω
STEREO inputs (CH 13-14) RCA pin jack, unbalanced
3.5-mm stereo mini jack, unbalanced
Maximum input level +8 dBV
Nominal input level –10 dBV
Input impedance 10 kΩ
MAIN output XLR-3-32, balanced
(1: GND, 2: HOT, 3:COLD)
Maximum output level +4 dBu
Nominal output level +22 dBu
Output impedance 200 Ω
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT 6.3-mm TRS, balanced
(Tip: HOT, Ring: COLD, Sleeve: GND)
Nominal output level –2 dBu
Maximum output level +16 dBu
Output impedance 200 Ω
PHONES OUT 6.3-mm stereo phone jack
Maximum output power 80 mW + 80 mW (at 32 Ω)
Channel EQ
Low cut 100 Hz, –18 dB/Oct.
High (shelving) 12 kHz, ±15 dB
Mid (peaking) variable 100 Hz to 8 kHz, ±15 dB (Mono)
fixed 600 Hz, ±15 dB (Stereo)
Q = 0.55
Low (shelving) 80 Hz, ±15 dB
Master EQ
High (shelving) 10 kHz, ±15 dB
Mid (wide) variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 0.5
Mid (narrow) variable 100 Hz to 8 kHz, ±15 dB (Mono), Q = 5
Footswitch connector 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)
Audio performance
Residual output noise –100 dBu
(MAIN OUT, MAIN fader at min.)
Equivalent input noise (EIN) –128 dBu
(Mono input channel at 150 Ω, GAIN at max.)
Total harmonic distortion (THD+N) MAIN OUT, 1 kHz, GAIN at min., +10 dBu)
MAIN OUT, 1 kHz, GAIN at min., +4 dBu)
Frequency response Analogue: 20 Hz to 30 kHz, +0.5/–1.0 dB
Digital: 20 Hz to 20 kHz, +0.5/–1.0 dB
Channel crosstalk –80 dB
(1 kHz, PAN fully counter-clockwise / fully clockwise)
Maximum gain 74 dB (MIC to MAIN OUT)
54 dB (MIC to INSERT OUT)
74 dB (MIC to SUB OUT)
79 dB (MIC to CR OUT)
75 dB (MIC to MONITOR OUT)
75 dB (MIC to FX OUT)
24 dB (USB/SD to MAIN OUT)
(all EQs flat, PAN fully counter-clockwise / fully clockwise, GAIN knobs at max.)
Phantom Power DC 48 V
Computer system requirements
Windows
Compatible computers Windows-compatible computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Drivers USB Audio Class 2.0, ASIO 2.0, WDM (MME)
Screen resolution 1280 px × 800 px or more
Macintosh
Compatible computers Apple Mac computer with a USB 2.0 (or higher) port
CPU type/speed Dual core, 2 GHz or faster
Memory 2 GB or more
Driver Core Audio
Screen resolution 1280 px × 800 px or more
USB audio specifications
Sampling rate 44.1 kHz, 48 kHz
Bit depth 16 bit, 24 bit
Maximum number of audio channels 16 inputs, 14 outputs
Bluetooth® Version 5.0
Output class Class 2
(approximate transmission distance: 10 m)
* The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances.
Supported profile A2DP, AVRCP 1.0
Supported A2DP codecs SBC, AAC
A2DP content protection SCMS-T
Power supply and other specifications
Power AC 100–240 V, 50/60 Hz
Power consumption 40 W
Dimensions (W × D × H, overall) 430 mm × 463 mm × 113 mm
Weight 7 kg
Permissible operating temperature range 5–35 °C
Included items AC power cord, Owner’s manual incl. warranty
