Tascam MX-8A Digital matrix mixer

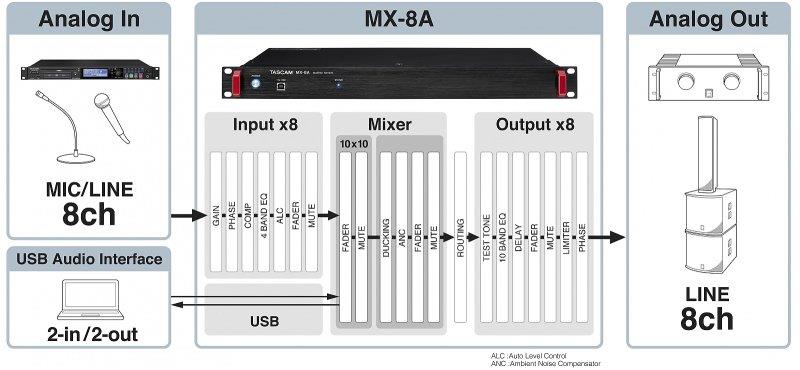

MX-8A er en 10 × 10 matrix mixer med otte mic / line indgange, otte linie udgange og stereo USB I / O kompatibel med software- eller cloud-baserede konferencer platforme.

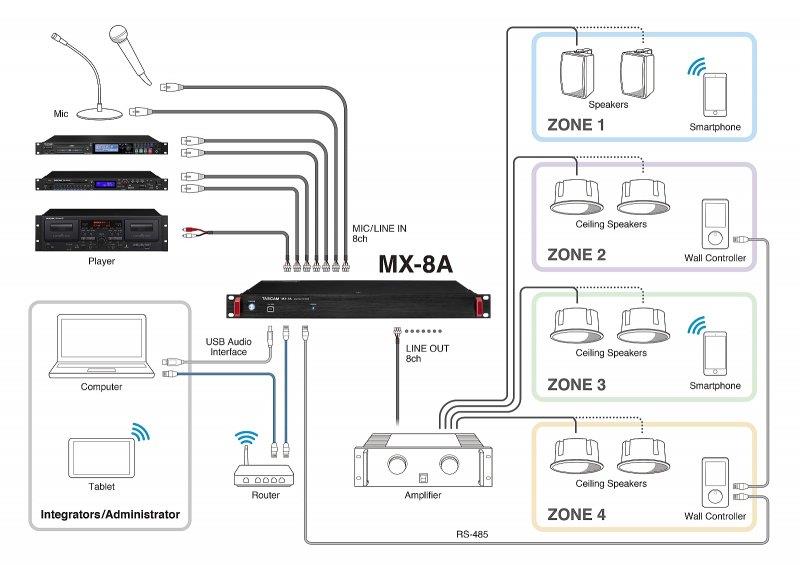

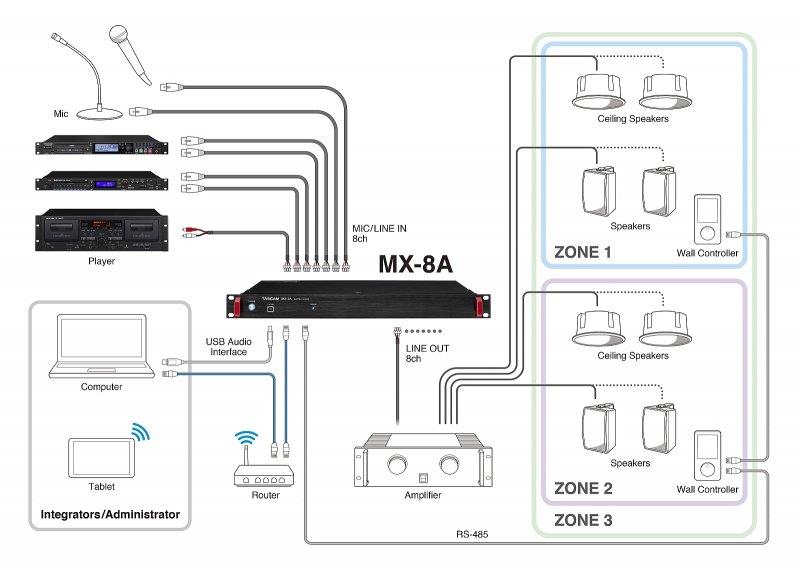

Intern kraftig DSP-mixer og routing plus flere lydbehandlingsfunktioner og er ideel til mange anvendelser, herunder mødelokaler, opholdsrum, retsværelser, restauranter, butikker osv.
DSP funktioner inkluderer en kompressor, fire-bånds parametrisk EQ og automatisk niveau kontrol for hver indgang. Udgangssektionen indeholder en 10-bånds EQ med høj / lavpasfilter, forsinkelse og en begrænserfunktion pr. Udgang, som alle kan justeres og gemmes i en af de 50 sceneminner sammen med mixer- / routingsindstillingerne. For at gøre lyden til meddelelser klarere, er der også mulighed for automatisk ducking og en omgivende støjkompensator.
MX-8A har naturligt lydende, højkvalitets Tascam mic-forstærkere, der gør brug af vores viden og erfaring fra mange års fremstilling af pro-lydudstyr. Indgangsniveauområdet er -77,5 dBu til +26 dBu, med tilsvarende indgangsstøj, der opnår mindre end -126 dB, og et signal-til-støjforhold på over 108 dB.
MX-8A kan styres via to forskellige softwareprogrammer til Mac, Windows, IOS og Android-enheder: Tascam Tascam MX Connect til konfiguration og Tascam Tascam EZ Connect til slutbrugere, som begge er nemme at bruge og inkluderet i enheden . Ved hjælp af Tascam MX Connect-installatører kan du hurtigt og nemt konfigurere MX-8A og derefter tildele passende enkle kontroller for adgang for brugere via Tascam EZ Connect.
Den valgfri RC-W vægmonterbare controller (under forberedelse) tilbyder et grafisk display og en push / turn multi-kontrol knap.
Hardware features

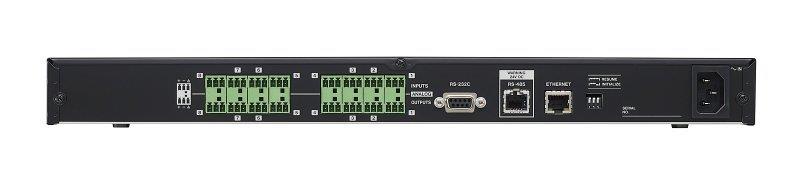

Eight balanced mic/line inputs and eight balanced line outputs
Euroblock connectors – ideal for permanent installation
USB audio interface mode allows to record audio or play background music with a computer
Controllable via an Ethernet network (using the Tascam MX Connect computer application or the Tascam Mixer Protocol)
RS-485 (using a dedicated remote controller, planned)
RS-232C

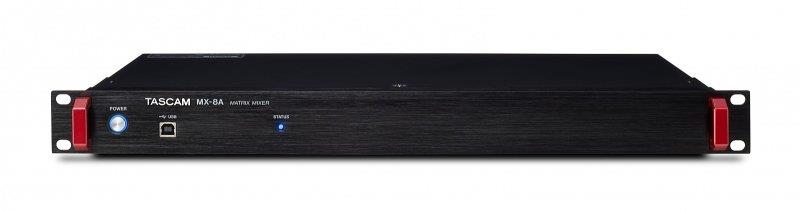

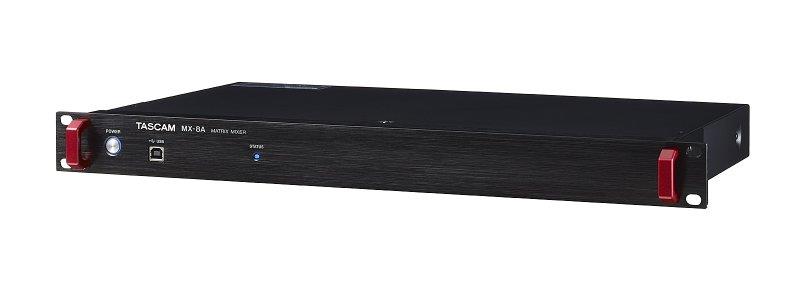

Status indicator on front panel
USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)
High-quality internal power supply (no AC adapter)
19 inch rackmount size (1U)
Software features
Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)
Powerful DSP mixer (controllable via software) Input features: phantom power on/off, phase, sensitivity, trim, automatic level control, 4-band equalizer, mute, fader
Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
Outputs features: 10-band equalizer, limiter, delay, mute, fader, phase
Up to 50 scene presets can be saved
Timer event function allows presets to be switched at specific times (planned for a future update)
Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings
USB audio interface features
Two audio inputs and two audio outputs when connected to a Windows/Mac computer or iOS/Android device
Allows audio to be recorded / played back via Windows Media Player, iTunes or DAW applications
Specifications
General
Audio formats 44.1/48 kHz, 16/24 bit
Inputs and outputs
USB port 4-pin USB B-type
Transfer rate USB 2.0 High Speed (480 Mbit/s)
Analogue inputs (ANALOG IN) Balanced Euroblock connectors, 3.81 mm pitch
Minimum input level –70 dBu
Maximum input level +26 dBu
Input impedance ≥2.2 kΩ
Analogue outputs (ANALOG OUT) Balanced Euroblock connectors, 3.81 mm pitch
Nominal output level +4 dBu (Ref(D) ≠ –9 dBFS)
+6 dBu (Ref(D) = −9 dBFS)
Maximum output level (selectable) +15 dBu (Ref(D): –9 dBFS)
+18 dBu (Ref(D): –14 dBFS)
+20 dBu (Ref(D): –16 dBFS)
+22 dBu (Ref(D): –18 dBFS)
+24 dBu (Ref(D): –20 dBFS)
Output impedance ≤200 Ω
RS-232C connector D-sub 9-pin (female, inch-standard)
RS-485 connector RJ-45 connector
Recommended cable STP cable, Cat 5e or faster
Network connector (ETHERNET) RJ-45 connector
Transmission protocol TCP/IP
Ethernet standard 100BASE-TX
Recommended cable STP cable, Cat 5e or faster
Audio performance
Mic amp EIN (equivalent input noise) ≤−126 dBu
(Mic in to Line out, input impedance: 150 Ω, 22 kHz LPF, A-weighted, JEITA)
Frequency response 20 Hz – 20 kHz, ±0.5 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Distortion (THD+N) (+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
S/N ratio ≥106 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Crosstalk ≥107 dB
(+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
Dynamic range ≥105 dB
(Line in to Line out, GAIN at min., JEITA)
Note: JEITA indicates compliance with JEITA CP-2150
Power supply and other specifications
Voltage requirements AC 100–240 V, 50/60 Hz
Power consumption 21 W
Dimensions 483 mm × 45 mm × 304 mm
(W × H × D, including protrusions)
Weight 3 kg
Permissible operating temperature range 0–40 °C
