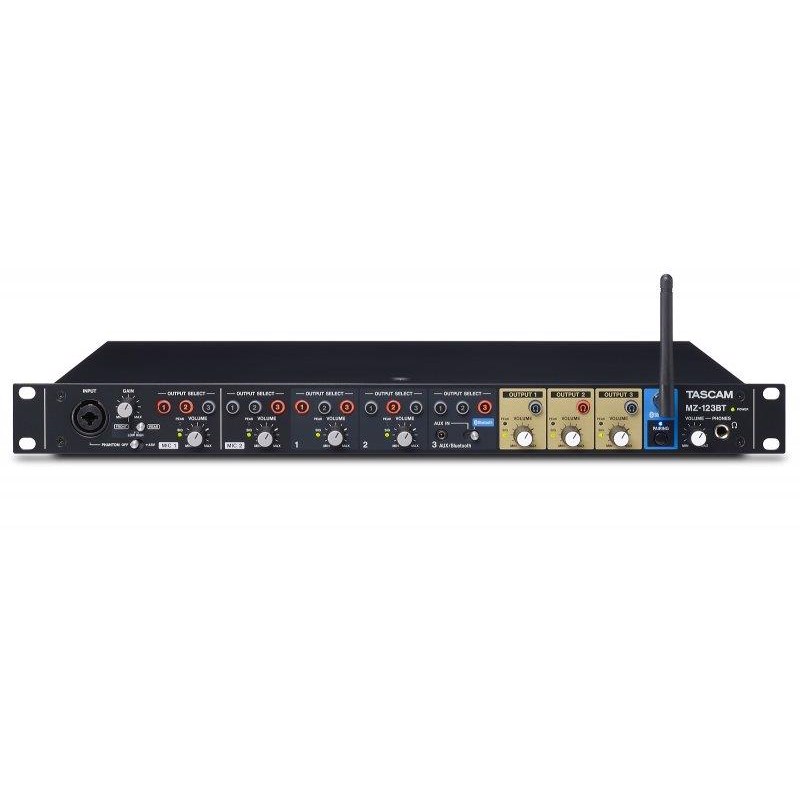

Tascam MZ-123BT Installationsmixer med Bluetooth
En kompakt analog mixer til baggrundsmusik og tale i op til tre zoner
Tascam MZ-123BT er en kompakt 1U flerkanals multi-zone lydmikser til professionel installation. Det giver alsidig routing, mixing og distribution af op til tre kanaler med musik og annoncer til en lang række kommercielle applikationer, herunder detailhandel, restauranter, barer, caféer, hoteller eller ethvert miljø, der kræver uafhængig lydrutning og annonceringsfunktioner. Den Bluetooth-aktiverede MZ-123BT er udstyret med et enkelt, intuitivt layout for let betjening, udstyret med to alsidige mikrofonindgange og automatisk dæmpning af baggrundsmusik for overlegen forståelse under meddelelser eller personsøgning.
Audio Control and Routing for Separate Zones
Three discrete zone outputs with volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment.
Three Outputs with Euroblock Connectors

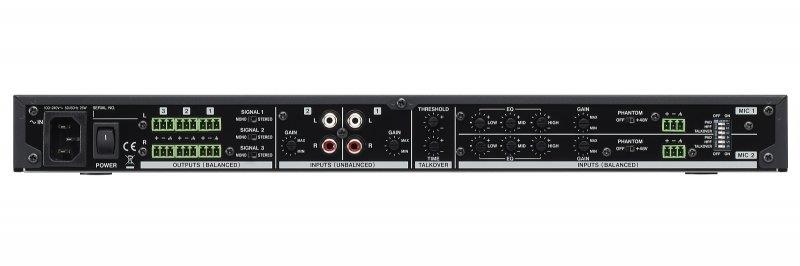

Three pairs of balanced stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. Each output can be set to output audio in mono or stereo.
Three Stereo Input Channels for Playback Sources
Two stereo line inputs (RCA, unbalanced) allow connection of AV equipment such as Tascam CD / Solid State Players or similar playback devices. Channel 3 has an Aux/Bluetooth input that allows an additional audio source to be connected via Bluetooth or 3.5-mm mini plug. Each input features a volume control knob as well as three zone routing buttons for audio distribution to desired areas or rooms.
External Bluetooth Antenna for Stable Wireless Connectivity

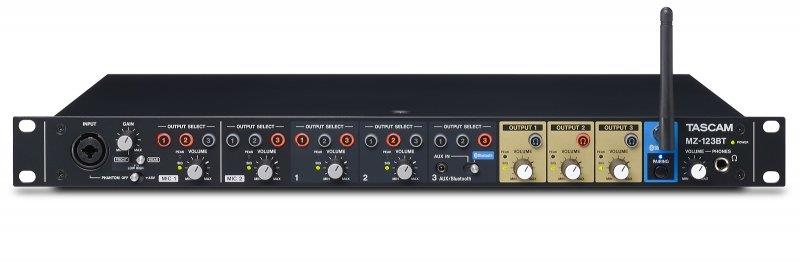

The MZ-123BT has a dedicated Bluetooth antenna on its front-panel which helps ensure consistent stability of the wireless signal and reliability when streaming source material from a Bluetooth enabled device – even in the most signal-challenged environments.
Dual Mic Inputs with Euroblock Connectors
For announcements or moderations, the MZ-123BT offers two microphone inputs, each with switchable +48V phantom power for condenser mics, talkover functionality and zone selection by front-panel push buttons.
Two mics can be connected via rear-panel Euroblock connectors while an additional XLR/TRS combo connector on the front panel allows an alternative microphone to be hooked up quickly and selected via a front-panel switch.
Three-Band Equalizer, Gain Control and Switchable High-Pass Filter
The back panel provides gain control knobs and three-band EQ (Low, Mid, High) along with a high-pass filter switch for each input for setting optimal input level, tonal quality and voicing character for each microphone.
Talkover Function for Clear Announcements
The Talkover function automatically detects microphone signal input during audio playback and attenuates background music levels in the selected zones for optimal intelligibility during announcements. Threshold level and timing (release time) can be adjusted with controls on the rear panel to allow precise activation of level reduction and smooth restoration of background music to pre-set levels.

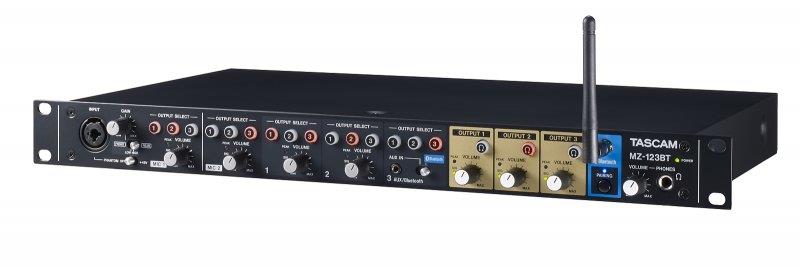

Compact 1U Rack Mount Size
With a 1U rackmount size, the MZ-123BT is designed to fit seamlessly in an installed AV rack, with an optimised depth that allows greater connection space for other AV equipment such as Tascam CD / Solid State players.
Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
Bluetooth antenna installed on the front panel ensures a stable wireless connection within the specified range
Three stereo line inputs Two RCA unbalanced line inputs on rear panel
Bluetooth/Aux input on front panel
Gain controls on rear panel
Two mic inputs for announcements or moderation Connection via Euroblock connectors on the rear panel
Mic 1 can also be connected via the front-panel XLR/TRS combo connector (input level switchable HIGH/LOW)
Talkover function automatically lowers background music volume according to mic volume (with rear-panel controls for threshold, time and on/off)
PAD, high-pass filter and 48-volt phantom power on each mic input (switchable on/off on the rear panel)
Rear-panel controls for gain and three-band EQ
Level controls and zone selection buttons on each mic and stereo line input
Signal and peak indicators on each mic and stereo line input
Three zone outputs with level controls, signal and peak indicators and monitor selection buttons
Headphones output with level control for monitoring the zone outputs
Compact 1U rackmount size
Analogue audio inputs
Microphone inputs 1–2 (balanced)
Connector, front panel XLR/TRS combo connector
XLR-3-31 (1: GND, 2: HOT, 3: COLD)
6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Connector, rear panel 2 × Euroblock
Input impedance 2.4 kΩ
Nominal input level –26 dBu (front connector set to HIGH or rear connector PAD OFF)
–2 dBu (front connector set to LOW or rear connector PAD ON)
Maximum input level –10 dBu (front connector set to HIGH or rear connector PAD OFF)
+14 dBu (front connector set to LOW or rear connector PAD ON)
Minimum input level –65 dBu (front connector set to HIGH or rear connector PAD OFF)
–41 dBu (front connector set to LOW or rear connector PAD ON)
Line inputs (unbalanced) RCA pin jacks
Nominal input level –10 dBV
Maximum input level +6 dBV
Input impedance ≥10 kΩ
Aux inputs (unbalanced) 3.5-mm stereo mini jack
Nominal input level –20 dBV
Maximum input level –4 dBV
Input impedance ≥10 kΩ
Analogue audio outputs
Outputs 1–3 (balanced) 3 × Euroblock
Nominal output level +4 dBu (volume knob set to 0 dB)
Maximum output level +24 dBu
Output impedance 200 Ω
Headphones output 6.3-mm stereo jack
Maximum output power 80 mW + 80 mW (THD+N ≤0.1 %, 32 Ω load)
Audio performance
Equivalent input noise (EIN) ≤–125 dB(A)
(mic input to line output, 150 Ω, 20-kHz LPF)
Frequency response
Mic input to line output 20 Hz – 20 kHz, +0.5 dB / –1 dB
(GAIN at min., VOLUME at 0 dB, JEITA)
Line input to line output 20 Hz – 20 kHz, ±0.5 dB
(GAIN at min., VOLUME at 0 dB, JEITA)
Distortion
Mic input (front) to line output ≤0.02 %
Mic input (rear) to line output ≤0.01 %
Line input to line output ≤0.01 %
S/N ratio ≥90 dB
Crosstalk attenuation ≥80 dB
Bluetooth
Bluetooth version 4.2
Output class Class 2
Supported profile A2DP
Supported A2DP codecs SBC, AAC, aptX™
A2DP content protection SCMS-T
Antenna RP-SMA (female)
Power supply and other specifications
Power supply AC 100–240 V, 50/60 Hz
Power consumption 25 W
Overall dimensions (width × height × depth) 483 mm × 47 mm × 275 mm
Weight 3.0 kg
Permissible operating temperature 0–40 °C
Included items Power cord, 8 Euroblock plugs with cable band kit, rackmount screw kit, Owner’s Manual, Bluetooth antenna
