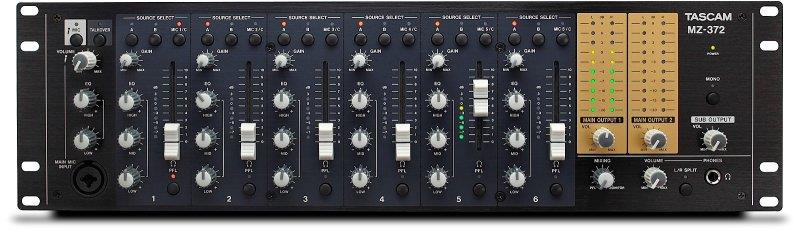

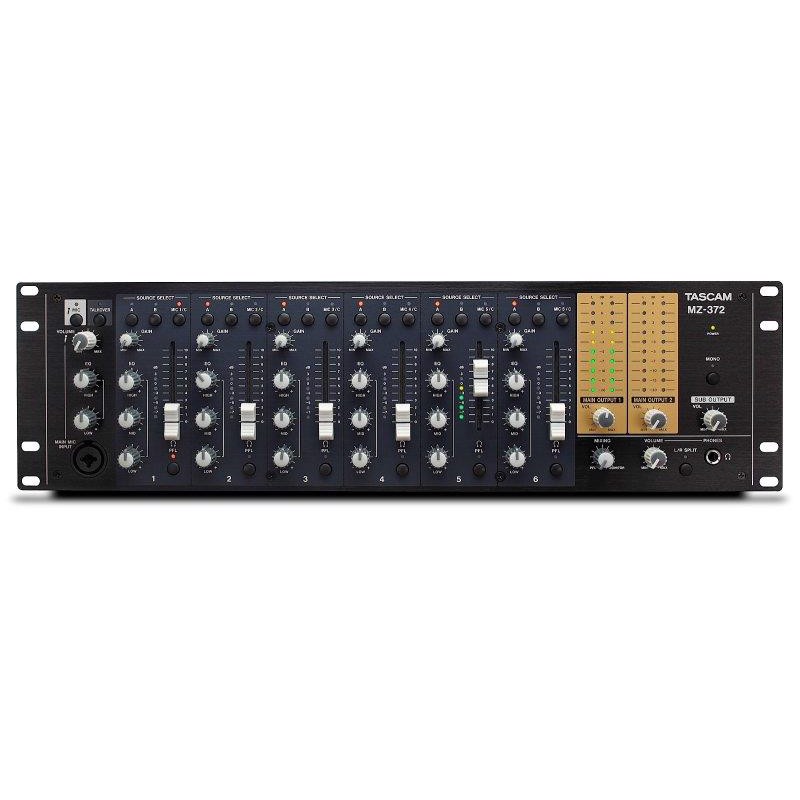

Tascam MZ-372 Installationsmixer
MZ-372 er en 3 unit rackmonteret mixer designet til faste installationer på hoteller, konferencecentre, offentlige faciliteter, forlystelsesparker eller barer.
7 input og 2 stereo output samt 1 sub output
6 input kan bruges til mikrofoner eller line signaler fra analoge afspilningskilder som medieafspillere, tunere mv.
De er hver udstyret med volumen regulatorer, LED-niveaumålere, trebånds equalizer og 100 mm faders.
Op til 3 af disse kanaler kan skiftes til phono for at forbinde record-afspillere (pladespillere).
1 ekstra mikrofonindgang med niveaukontrol og tobånds equalizer på forsiden kan bruges til speak eller talevarsling.
I dette tilfælde kan den indbyggede Talkover-funktion bruges til automatisk at sænke volumenet af baggrundsmusik i forhold til mikro volumen.
Hver af de 2 sæt hoved output har sin egen niveau kontrol og stereo LED niveau meter.
1 uafhængig sub-udgang med niveau kontrol og mono / stereo valg kan bruges til at drive en ekstern master recorder eller et ekstra rum.
Der er en hovedtelefonudgang med niveaukontrol til pre-fader monitoring af udvalgte indgangskanaler og hovedudgangssignalet.
Rackmount mixer with seven input channels and two pairs of main outputs
Six mic/line input channels are equipped with gain controls, LED level meters, three-band equalizers and faders
Each channel can be set to use one of two RCA unbalanced input pairs or an XLR balanced input
XLR inputs are switchable between mic and line level
Three channels can be switched to phono for record players
Independent front mic input with level control and two-band equalizer
Talkover function automatically lowers background music volume according to mic volume
Two main outputs with level control and stereo LED level meters
Sub output with level control and mono/stereo selection
Headphones output with level control can be used for pre-fader monitoring of selected input channels and the main output
3U rackmount size

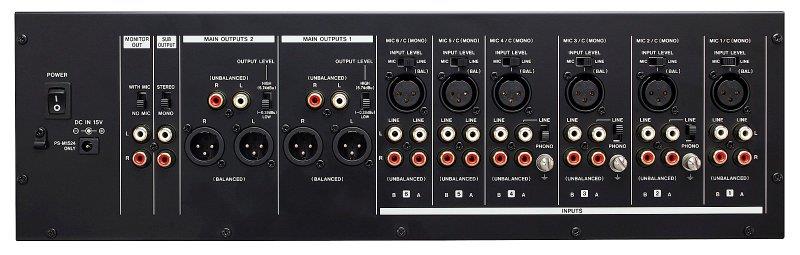

Audio inputs
Main microphone input Balanced: XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Unbalanced: 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance 33 kΩ
Nominal input level –65 dBu (VOLUME knob at MAX)
–30 dBu (VOLUME knob at MIN)
Mic/Line inputs (balanced) XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Set to Mic
Maximum input level –30 dBu
Minimum input level –65 dBu
Input impedance 33 kΩ
Set to Line
Nominal input level –1 dBu
Maximum input level 20 dBu
Input impedance 22 kΩ
Line inputs (unbalanced) RCA pin jacks
Nominal input level –10 dBV
Maximum input level 10 dBV
Input impedance 22 kΩ
Audio outputs
Main outputs (unbalanced) RCA pin jacks
Nominal output level –10 dBV
Maximum output level 6 dBV
Output impedance 200 Ω
Main outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level 4 dBu
Maximum output level 24 dBu
Output impedance 200 Ω
Sub outputs RCA pin jacks
Nominal output level –16 dBV
Maximum output level 0 dBV
Output impedance 200 Ω
Monitor outputs RCA pin jacks
Nominal output level –16 dBV
Maximum output level 0 dBV
Output impedance 200 Ω
Headphones output 6.3-mm stereo jack
Maximum output power 50 mW + 50 mW (into 32 Ω load)
Audio performance
Frequency response 20 Hz – 20 kHz
Distortion ≤0.03%
Crosstalk 65 dB
Power supply and other specifications
Power supply Dedicated AC adapter (PS-M1524)
Input voltage AC 100–240 V, 50/60 Hz
Output voltage DC 15 V
Output current 2.4 A
Power consumption 35 W
Overall dimensions (width × height × depth) 482 mm × 132 mm × 93 mm
Weight 3.2 kg
Permissible operating temperature 5–35 °C
