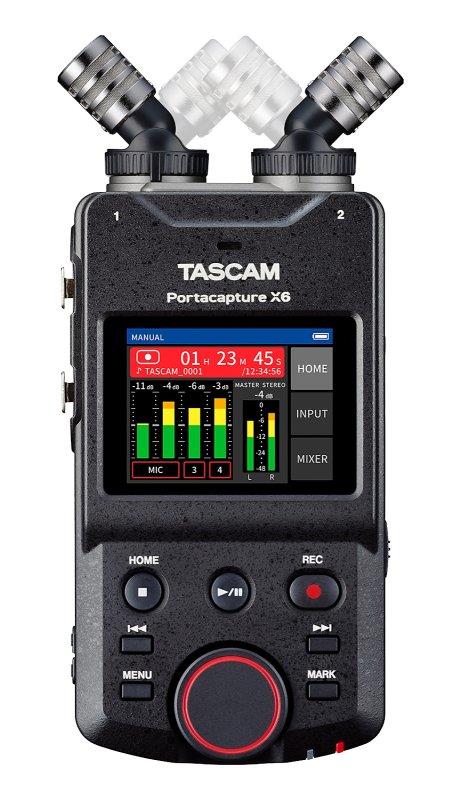

Tascam Portacapture X6 Linear PCM recorder
Avanceret optageteknologi, men alligevel nem at bruge!
Det er nemt at optage lyd i høj opløsning med Portacapture X6.
Den intuitive app-lignende betjening på dens store farveberøringsskærm gør det nemt at optage eller forsøde din lyd i efterbehandling.
Optag ved hjælp af de to indbyggede mikrofoner eller tilslut dine egne mikrofoner til de to XLR-indgange.
Optagekvaliteten på Portacapture X6 vil være din hemmelige fordel.
Dens 96-kHz/32-bit flydende optagelsesteknologi betyder, at du kan optage lyd blødere eller højere end ideelt, hvilket sikrer, at du aldrig vil gå glip af det øjeblik.
6 forskellige recording apps at vælge:
MANUAL This is the main app for multi-track recording of up to six audio sources and a stereo mix (2-mix).
VOICE This recording app is ideal for capturing interviews, dictation and meetings.
PODCAST Use this for podcast creation with up to four people.
MUSIC Choose this app for capturing instrumental and vocal performances.
FIELD Ideal for recording nature sounds outdoors.
ASMR The screen visual effect changes in response to the input sound.

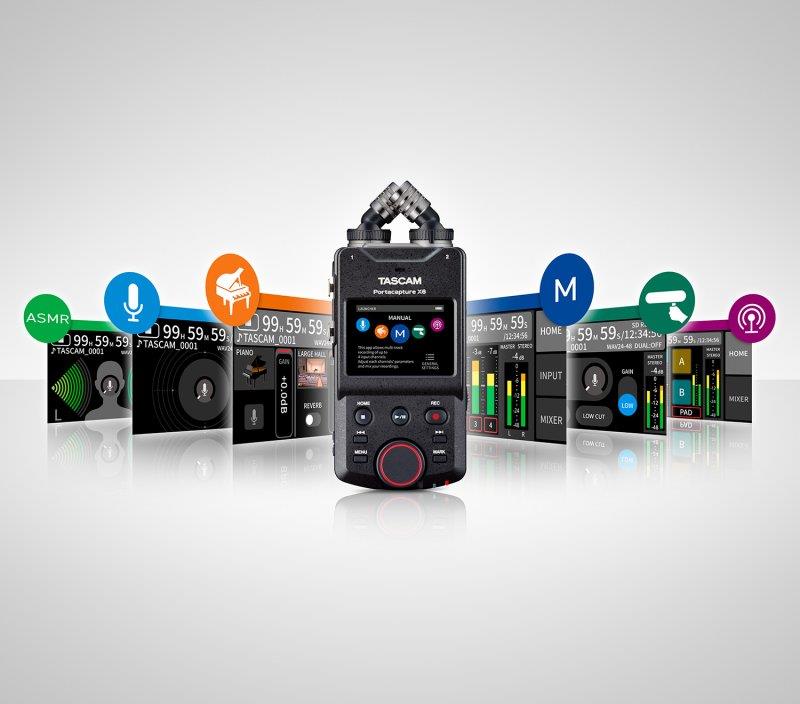

App-like operation
Quickly access your settings and adjustments on the Portacapture X6’s large (2.4-inch) colour touchscreen. With the easy-to-navigate interface and helpful tools, you are just a few taps from the perfect setting for your needs. Use the Launcher to select from podcast, music, interviews, field recording and real 6-track recording. Start fast, start right and get exactly what you need.
Audio for video production
When shooting a video, you want to be able to focus on your video production and not worry about your audio. The Portacapture X6 was built with video production in mind. The workflow, presets and user settings save you countless steps. The X6 has your back with its 96 kHz/32-bit float recording technology. Not only does this mean you will have the highest quality audio, but you will have a dynamic range that allows you to overcome those less-than-ideal realities that can often occur on a shoot.
The X6 even gives you a timecode sync option* via Bluetooth (with optional AK-BT1) allowing you to align your audio with your video, even when you have no audio on your camera. Upgrade your audio and reduce your worries with your own Portacapture X6.
Record your way
The Portacapture X6 is ready to record with a few quick taps. The internal high-quality stereo microphones can instantly be rotated from A-B to a true X-Y mic pattern to allow for dialogue or spatial music recording. Have your own mics? Use those thanks to the two included XLR inputs which can also handle line level sources.
The mic preamplifiers are Tascam HDDA (High Definition Discrete Architecture) – providing ultra-low noise and clean transparent audio based on more than 50 years of Tascam know-how.
Record six tracks (four individual track plus stereo mix) simultaneously and even use the X6 as your 6-in/2-out USB audio interface to connect to your computer.
Capture every bit
It would be great if every time you need to capture audio, everything is perfect. Not too loud, not too soft. Of course that is not the reality for most of us. Sometimes a voice or sound will be really soft and in other cases it is blasting. Even in these extremes, you are expected to capture the sound and deliver well-finished audio.
The 32-bit floating point recording technology in the Portacapture X6 gives you a much lower floor and higher ceiling for sound material. The result is that your recording can capture everything from the quietest rustle to the loudest spectacle.
Control the recorder from your phone (with optional Bluetooth adapter)
In those cases where you want to put your audio recorder in one place and operate it from another, the X6 has you covered. With the AK‑BT1 Bluetooth adapter (sold separately) and the free Portacapture Control app, it’s easy to remote control your X6 wirelessly from your smartphone or tablet.
Ready-to-publish audio anywhere
With the Portacapture X6, your audio is ready to share. Built-in signal processing, including a compressor, limiter, high-pass filter, EQ and reverb, adds that studio polish.
Whether you need to tame the wind when recording outside or want to add the ambiance of reverb to your vocals, the X6 has you covered. From smoothing out your input to preventing extreme peaks or eliminating plosives in dialogue, you can count on the Portacapture X6.
New-generation high-resolution PCM audio recorder

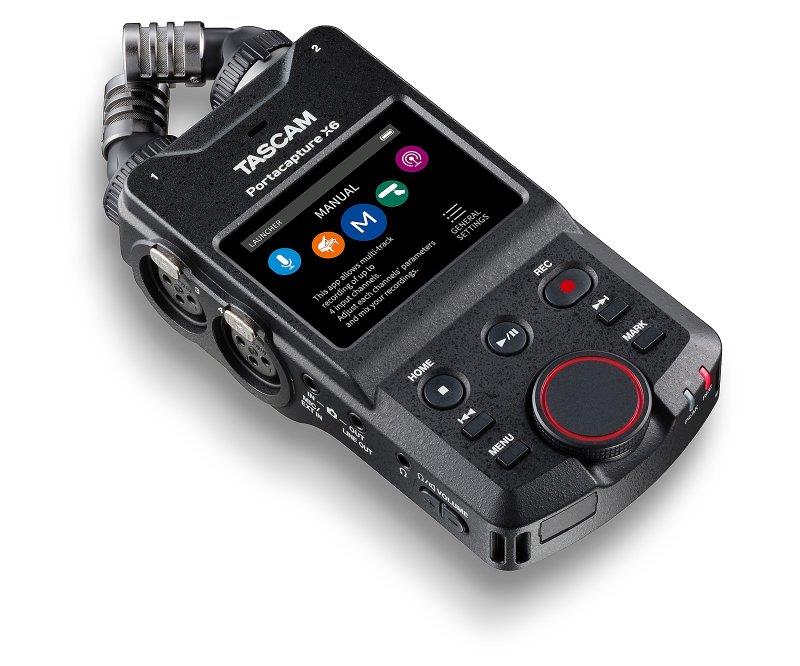

2.4-inch colour touchscreen for easy operation and perfect readability
Uncompromised audio quality with sampling rates up to 96 kHz and 32-bit floating point resolution – ideal for later lossless post-editing with DAW software
Intuitive launcher system with pre-set configurations for a variety of recording scenes such as basic multi-track recording, podcasts, music, voice (interviews, vlogs), field recordings, ASMR or manual settings
Two adjustable condenser microphones (can be set for A-B or X-Y configuration)
Built-in USB audio interface with six inputs and two outputs
Included microphones can be used as USB audio source
Input signals received via USB can be recorded to SD card
USB mix-minus on PODCAST app (planned for a future update)
USB audio transmission in 32-bit float resolution (planned for a future update)

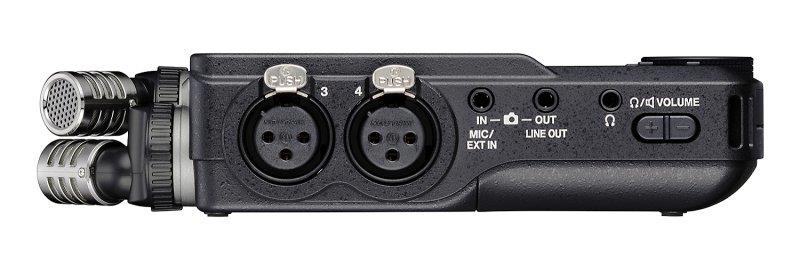

Two mic/line inputs via XLR locking connectors
Phantom power (24 V / 48 V) can be set for each microphone input individually
Additional mic/line input to monitor and record audio sent from a wireless microphone, camera or other device (3.5-mm stereo jack, supports plug-in power)
Multi-track recording of up to six tracks (four tracks + stereo mix)
Recording in either WAV (BWF) or MP3 format
MS decoder, reverb effect (six rooms, can be used with sampling rates of 44.1/48 kHz)
Pre-recording feature allows a recording to start before the record key is pressed
Auto-recording function to automatically start recording based on input level
Dual recording allows to record each track in a different file format
Slate tones can be added automatically or manually to simplify synchronisation of video files when editing
Marks can be set automatically (peak, level, time)
XRI function allows information on recording settings to be stored with a BWF file
Built-in mixer with audio processing including EQ, low-cut filter, compressor, limiter, auto gain control, noise gate and more
Input settings can be saved in up to three presets and shared by all recording apps (planned for a future update)
Unit settings and recording app settings can be saved in up to three presets and recalled with a single tap from the LAUNCHER (planned for a future update)
Camera/line output with selectable attenuation to send audio to a camera or other external devices
Audio monitoring through headphones output or the built-in loudspeaker
Wireless remote control from a smartphone/tablet using an optional Bluetooth dongle (Tascam AK-BT1) and the dedicated Portacapture Control app (free download)
Wireless timecode synchronisation with Atomos devices and UltraSync Blue (planned for a future update)
Micro SD cards up to 512 GB can be used as recording media
Power supply by four AA batteries (Alkaline, Ni-MH, Lithium), USB bus power or optional AC adapter (Tascam PS-P520U)
Automatic power select to continue on batteries, for example, during a power outage
Imagine the possibilities!
Recorder specifications
Recording media
microSD card (64 MB – 2 GB)
microSDHC card (4–32 GB)
microSDXC card (48–512 GB)
Recording/playback formats
WAV (BWF): 44.1/48/96 kHz, 16/24 bit or 32 bit float
MP3: 44.1/48kHz, 128/192/256/320 kbit/s
Input channels 4 (maximum)
Recording tracks 6 (4 tracks + stereo mix)
Analogue audio inputs Mic inputs 3–4 (balanced)
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
(phantom power over XLR only)
Input impedance ≥2.2 kΩ
Maximum input level +2 dBu
Minimum input level −75 dBu
Line inputs 3–4
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance ≥9 kΩ
Maximum input level +24 dBu
Minimum input level −53 dBu
MIC/EXT IN (unbalanced)
3.5-mm mini jack (supports plug-in power)
Input impedance
10 kΩ (plug-in power off)
1.8 kΩ (plug-in power on)
Maximum input level 0 dBV
Minimum input level −67 dBV
Analogue audio outputs
Line output (LINE OUT, unbalanced)
3.5-mm stereo mini jack
Output impedance 200 Ω
Nominal output level −14 dBV
Maximum output level +6 dBV
Headphones output
3.5-mm stereo mini jack
Maximum output 45 mW + 45 mW (THD+N: ≤0.1%, 32 Ω load)
Built-in speaker 0.4 W (mono)
Control inputs/outputs
USB port
USB Type-C connector
Format
USB 2.0 High Speed mass storage class
Bluetooth device connector
For Bluetooth adapter (AK-BT1) only
Audio performance
Equivalent input noise (EIN, mic inputs 3–4)
≤−125 dBu
Frequency response (inputs 3–4 to PCM data)
Fs 48 kHz: 20 Hz – 20 kHz, +0/−0.3 dB (JEITA)
Fs 96 kHz: 20 Hz – 40 kHz, +0/−0.7 dB (JEITA)
Dynamic range (20 kHz SPCL LPF, A-weighted, Field app)
Inputs 3–4 to PCM data ≥112 dB (48/96 kHz)
S/N ratio (20 kHz SPCL LPF, A-weighted)
Inputs 3–4 112 dB (48/96 kHz)
MIC/EXT IN
103 dB (48 kHz)
105 dB (96 kHz)
Total harmonic distortion ratio (THD+N, 1 kHz sine wave, –5 dBFS at input, GAIN at minimum, 20 kHz SPCL LPF)
Inputs 3–4 (LINE IN) to PCM data 0.008 %
Inputs 3–4 (MIC IN) to PCM data 0.006 %
Note: JEITA indicates conformance to JEITA CP-2150
Power supply and other specifications
Power supply
4 AA batteries (alkaline, Ni-MH or lithium-ion)
USB bus power from a computer
AC adapter (TASCAM PS-P520U, sold separately)
Power consumption 7.5 W (maximum)
Display 2.4-inch full-colour LCD touchscreen
Dimensions (W × H × D) 75 mm × 174 mm × 37 mm (excluding protrusions)
Weight
365 g (with batteries)
265 g (without batteries)
Operating temperature range 0–40 °C
Approximate battery operation time (continuous operation in hours:minutes)
Using alkaline batteries (Evolta)
Included mics, phantom power off, stereo WAV recording at 44.1 kHz / 24-bit 13:30
Included mics plus inputs 3-4, phantom power on, stereo WAV recording at 44.1 kHz / 24-bit 5:30
Using NiMH batteries (eneloop)
Included mics, phantom power off, stereo WAV recording at 44.1 kHz / 24-bit 11:00
Included mics plus inputs 3-4, phantom power on, stereo WAV recording at 44.1 kHz / 24-bit 5:30
Using lithium-ion batteries (Energizer Ultimate Lithium)
Included mics, phantom power off, stereo WAV recording at 44.1 kHz / 24-bit 22:00
Included mics plus inputs 3-4, phantom power on, stereo WAV recording at 44.1 kHz / 24-bit 11:30
Note: When using phantom power, the operation time depends on the mics being used.
