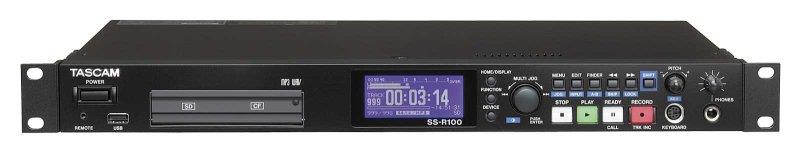

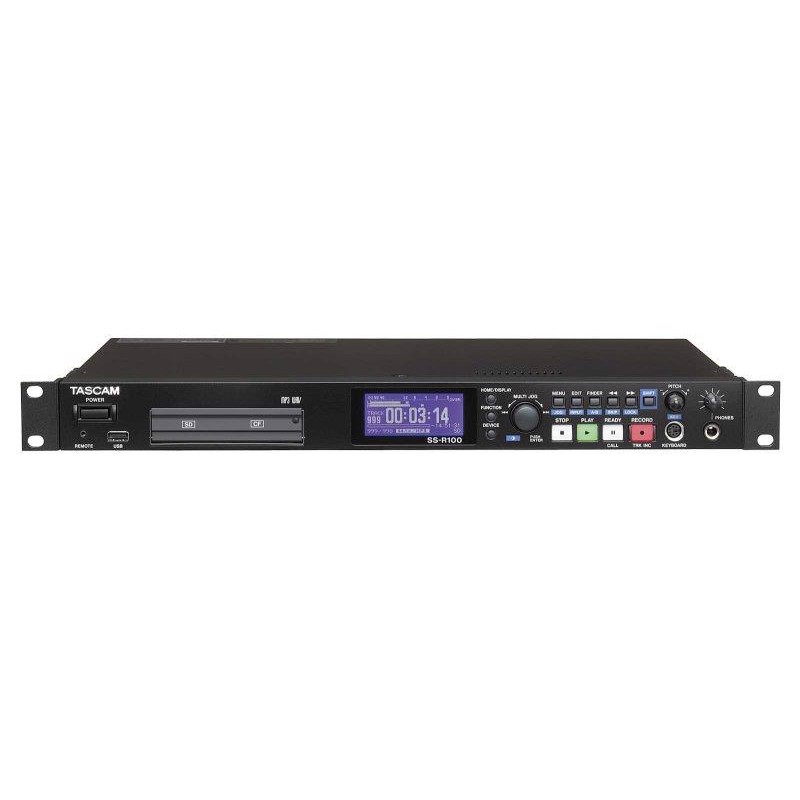

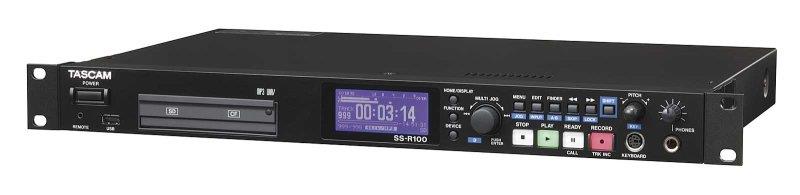

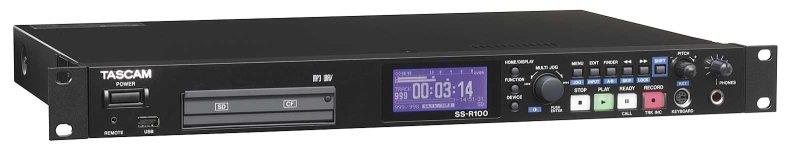

Tascam SS-R100 Harddisk Audio recorder WAW / MP3
SS-R100 er en single-rackspace recorder designet til applikationer som benytter kassette, CD eller MiniDisc-recorder. Enheden optager til SD, CF eller USB-memory i WAV eller MP3-format. SS-R100 er udstyret med balancerede og ubalancerede inputs og outputs, SPDIF koaksial digital in og out med sample-rate converter, en kablet fjernbetjening og et computerkeyboard-input til folder/file-navne. Den tilbyder også traditionelle egenskaber som pitch-kontrol, key-kontrol, auto-cue og meget mere.
Recording media: USB memory (512 MB – 64 GB), SD card (512 MB – 2 GB), SDHC card (4–32 GB), CF card (512MB – 64GB, Type I only)
Recording and playback file formats: MP3: 44.1/48 kHz, 64/128/192/256/320 kbps, WAV: 44.1/48 kHz, 16-bit, 24-bit (playback only)
Number of channels: 2 channels (stereo), 1-channel (mono)
Unbalanced analogue input: RCA pin jack
Input impedance: 22 kΩ
Nominal input level: -10 dBV (0.316 Vrms)
Maximum input level: +6 dBV (2.0 Vrms)
Minimum input level: -20 dBV (0.1 Vrms) or more (minimum input level adjustable to nominal level)
Unbalanced analogue output: RCA pin jack
Output impedance: 200 Ω
Nominal output level: -10 dBV (0.316 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
Headphones output: 6.3-mm stereo jack
Maximum output power: 2 x 45 mW (THD 0.1% at 32 Ω)
Digital audio input: RCA pin jack
Formats: IEC60958-3 (SPDIF) and AES3-2003/IEC60958-4 (AES/EBU), detected automatically
Supported input sampling frequencies: 32–48 kHz
Digital audio output: RCA pin jack
Formats: IEC60958-3 (SPDIF) and AES3-2003/IEC60958-4 (AES/EBU), switchable
Remote connector (REMOTE, for RC-3F and RC-20): 2.5-mm TRS jack
USB port: USB A-type 4-pin
Protocol: USB 2.0 HIGH SPEED (480 Mbps)
Computer keyboard connector: Mini-DIN connector (PS/2)
Remote connector (REMOTE IN, for RC-SS2): 3.5-mm TRS jack
Frequency response: 20 Hz – 20 kHz, ±0.5 dB
Distortion: 0.005% or less
S/N ratio: 95 dB or more
Dynamic range: 95 dB
Channel crosstalk: 95 dB
Note: All ratings are for performance when recording according to JEITA CP-2150 standards
Power supply: AC 100–240 V, 50–60 Hz
Power consumption: 20 W
Dimensions (W x H x D): 483 x 45 x 301 mm
Weight: 3.4 kg
Operating temperature range: 5–35 °C
