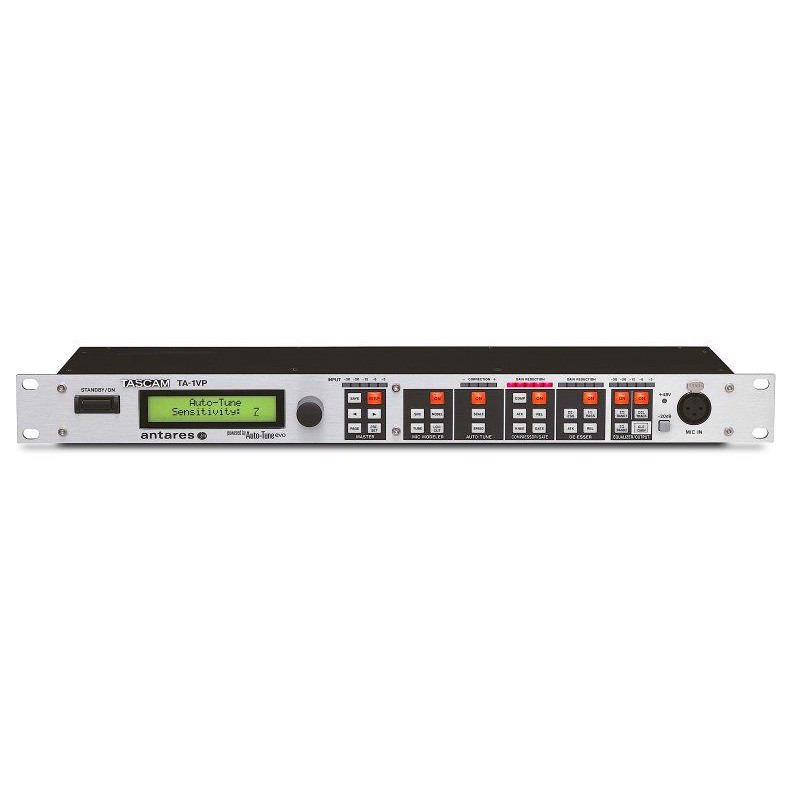

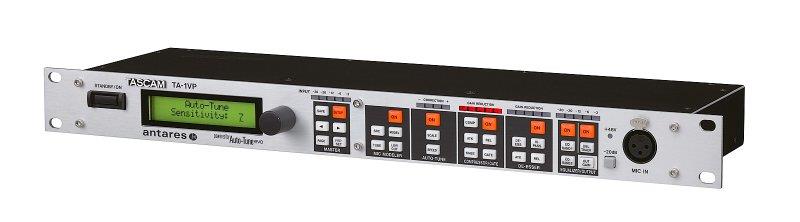

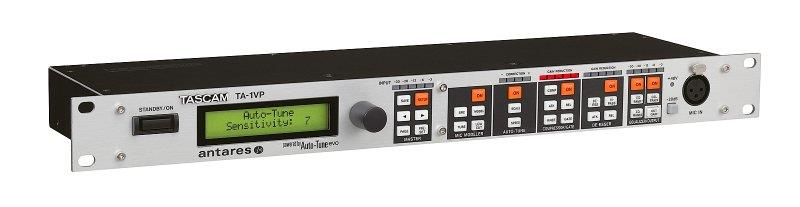

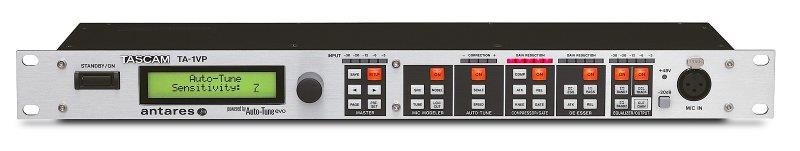

Tascam TA-1VP Auto-tune realtime pitch compressor
Tascam TA-1VP kombinerer den verdenskendte Auto-tune Pitch Correction og TEC-mikofonmodelbygningsteknologi med sublime vokalprocesseringsmoduler og tilbyder alt hvad der behøves for at skabe betagende musik i enhver genre. Enheden kan bruges både live og i studiet og giver adgang til et kæmpe bibliotek af lyde. De inkluderede fabriksindstillinger understøtter fra starten et væld af forskellige vokalstile og dens interface gør det nemt at skabe din egen lyd. TA-1VP tilbyder også indstillinger til instrumentale og percussion-spor.
AUTO-TUNE: Chromatic and 24 diatonic scales, all user customizable, Retune speed, Pitch detection sensitivity
MIC MODELER
Source Mics, specific models: Shure SM58, Shure SM57, Shure Beta 58a, Shure KSM 32, Audio Technica 3035, Audio Technica ATM31, Audio Technica ATM41a, Audio Technica 4050, Rode NT1, Rode NT2, Rode NT3, CAD M177, CAD E200, CAD E350
Source Mics, generic models: Handheld Dynamic, Studio Dynamic, Wireless, Small Diaphragm Condenser, Large Diaphragm Condenser
Model Mics: Handheld dynamic, Studio dynamic, Small diaphragm condenser 1, Small diaphragm condenser 2, Large diaphragm condenser 1, Large diaphragm condenser 2, Large diaphragm condenser 3, Drum mic (kick), Drum mic (snare), Drum mic (cymbal), Telephone
Tube saturation drive: 0–12 dB
COMPRESSOR
Threshold: -36 dB to 0 dB
Ratio: 1:1 to 99:1
Attack: 1–200 ms
Release: 1–200 ms
Knee: Continuously variable
GATE
Threshold: -96 dB to 0 dB
Ratio: 1:1 to 1:99
DE-ESSER
Threshold: -60 dB to 0 dB
Ratio: 1:1 to 99:1
Attack: 1–200 ms
Release: 20–2550 ms
Highpass frequency: 2971 Hz to 20 kHz
PARAMETRIC EQ (2 independent bands): 6 dB Lowpass, 6 dB Highpass, 12 dB Lowpass, 12 dB Highpass, Bandpass, Notch, Low shelf (variable slope), High shelf (variable slope), Peaking, Double Tracking, Stereo or variable mono mix

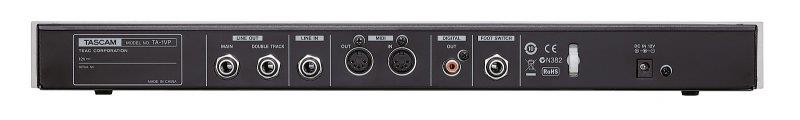

Mic input (Balanced): XLR-3-31 (1: GND 2: HOT 3: COLD)
Input impedance: 2.2 kΩ
Nominal input level (with PAD): -48.3 dBu (0.003 Vrms) to -16.8 dBu (0.112 Vrms)
Nominal input level: -23.3 dBu (0.053 Vrms) to +8.2 dBu (1.992 Vrms)
Maximum input level: +8.2 dBu (1.992 Vrms)
Line input (Balanced): 6.3 mm TRS phone jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: 10 kΩ
Nominal input level: 7.5 dBu (0.327 Vrms) to 24 dBu (12.283 Vrms)
Maximum input level: 24 dBu (12.283 Vrms)
Line output, Main (Balanced): 6.3 mm TRS phone jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance: 100 Ω
Nominal output level: +4 dBu (1.228 Vrms)
Maximum output level: +20 dBu (7.75 Vrms)
Line output, Double Track (Balanced): 6.3 mm TRS phone jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance: 100 Ω
Nominal output level: +4 dBu (1.228 Vrms)
Maximum output level: +20 dBu (7.75 Vrms)
Digital output (coaxial): RCA pin jack
Format: IEC 60958-3 (SPDIF)
Output impedance: 75 Ω
Output level: 0.5 Vpp
MIDI input: 5-pin DIN connector
Format: MIDI standard
MIDI output: 5-pin DIN connector
Format: MIDI standard
Footswitch: 6.3 mm TS phone jack
Input Analog Trim: 0 dB to +30 dB
Frequency response: 20 Hz – 20 kHz ±0.5 dB (Mic in to Line out), 20 Hz – 20 kHz ±0.2 dB (Line in to Line out)
S/N ratio (Mic input): ≥98 dB (Mic or Line in to Line out)
Total harmonic distortion: ≤0.01% (Mic in to Line out), ≤0.008% (Line in to Line out)
Dynamic range: ≥120 dB (Line out)
Power supply: TASCAM PS-1225L AC adaptor (included)
Power consumption: 4 W
External dimensions (W x H x D): 483 x 44 x 128 mm
Weight: 2 kg
Operating temperature range: 5–35 °C
Display: 2 x 20 character LCD
Indicators: INPUT Level (LED x 5), Output Level (LED x 5), Tuning Correction (LED x 4), Compression Gain Reduction (LED x 5), De-esser Gain Reduction (LED x 5)
General
Recording media
SD cards (512 MB 2 GB)
SDHC cards (432 GB)
SDXC cards (64128 GB)
USB flash drives (512 MB 64 GB)
Recording and playback file formats
MP3: 44.1/48 kHz, 64/128/192/256/320 Kbit/s
WAV: 44.1/48/96 kHz, 16/24 bits
Number of channels
2 channels (stereo)
1 channel (mono)
Analogue audio inputs and outputs
Analogue input (unbalanced)
RCA pin jacks
Rated input level
10 dBV (0.316 Vrms)
Maximum input level
+6 dBV (2.0 Vrms)
Input impedance
10 k or higher
Analogue input (balanced)
XLR-3-31 (1: GND, 2: HOT, 3: COLD)
When used as line input
Nominal input level
+4 dBu (1.23 Vrms, when Ref.Level set to other than 9 dBFS)
+6 dBu (1.55 Vrms, when Ref. Level set to 9 dBFS)
Maximum input level (switchable)
+15 dBu (4.36 Vrms, Ref. Level: 9 dBFS)
+18 dBu (6.16 Vrms, Ref. Level: 14 dBFS)
+20 dBu (7.75 Vrms, Ref. Level: 16 dBFS)
+22 dBu (9.76 Vrms, Ref. Level: 18 dBFS)
+24 dBu (12.28 Vrms, Ref. Level: 20 dBFS)
Input impedance
10 k or higher
When used as mic input (phantom power supported)
Maximum input level
+4 dBu (1.23 Vrms)
Minimum input level
70 dBu (245 Vrms) or higher
Input impedance
2.2 k or higher
Analogue output (unbalanced)
RCA pin jacks
Rated output level
10 dBV (0.316 Vrms)
Maximum output level
+6 dBV (2.0 Vrms)
Output impedance
200
Analogue output (balanced)
XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level
+4 dBu (1.23 Vrms, when Ref.Level set to other than 9 dBFS)
+6 dBu (1.55 Vrms, when Ref. Level set to 9 dBFS)
Maximum output level (switchable)
+15 dBu (4.36 Vrms, Ref.Level: 9 dBFS)
+18 dBu (6.16 Vrms, Ref.Level: 14 dBFS)
+20 dBu (7.75 Vrms, Ref.Level: 16 dBFS)
+22 dBu (9.76 Vrms, Ref. Level: 18 dBFS)
+24 dBu (12.28 Vrms, Ref.Level: 20 dBFS)
Output impedance
200
Phones output
6.3-mm standard stereo jack
Maximum output power
45 mW + 45 mW or higher (THD+N 0.1% or less, into 32 load)
Digital audio inputs and outputs
Digital input (AES/EBU)
XLR-3-31
Input impedance
110
Format
AES3-2003 / IEC60958-4 (AES/EBU)
Supported sampling frequencies
44.1 kHz, 48 kHz, 96 kHz
When SRC ON, 32192 kHz can be received
Digital input (SPDIF)
RCA pin jack
Format
IEC60958-3
Supported sampling frequencies
44.1 kHz, 48 kHz, 96 kHz
When SRC ON, 32192 kHz can be received
Digital output (AES/EBU)
XLR-3-32
Output impedance
110
Format
AES3-2003 / IEC60958-4 (AES/EBU)
Supported sampling frequencies
44.1 kHz, 48 kHz, 96 kHz
Digital output (SPDIF)
RCA pin jack
Format
IEC60958-3 (SPDIF)
Other inputs and outputs
Remote jack
2.5-mm TRS jack (for Tascam RC-3F or RC-20, sold separately)
USB port
4-pin USB, A-type
Protocol
USB 2.0 High Speed (480 Mbit/s)
Serial port (RS-232C)
D-sub 9-pin
Parallel port
D-sub 25-pin
Maximum input voltage
+5.5 V
High-level minimum input voltage
+2.31 V
Low-level maximum input voltage
+0.99 V
Output format
Open collector (10 output impedance, 20 V withstand voltage, 35 mA maximum)
Low-level maximum output voltage
0.5 V
5 V power supply maximum supplied current
100 mA
Network connector (Ethernet)
RJ45
Compatible standard
100BASE-TX
Audio performance
Frequency response (LINE IN or MIC IN to LINE OUT)
20 Hz 20 kHz, ±0.5 dB (Fs = 44.1/48 kHz, JEITA)
20 Hz 40 kHz, +0.5/-3 dB (Fs = 96 kHz, JEITA)
Distortion
0.002 % or less (LINE IN to LINE OUT, Ref. Level: 16 dBFS, Fs = 44.1/48/96 kHz, JEITA)
S/N ratio
106 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Dynamic range
106 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Crosstalk
100 dB or more (LINE IN to LINE OUT, Fs = 44.1/48/96 kHz, JEITA)
Equivalent input noise (EIN)
125 dBu or less (150 , 20 kHz LPF, A-weighted)
Power supply and other specifications
Mains power
AC 100240 V, 50-60 Hz
Power consumption
20 W
Dimensions (W × H × D)
483 mm × 45 mm × 301 mm
Weight
2.9 kg
Permissible operating temperature range
535 °C
