Tascam TM-Drums tromme mikrofon sæt

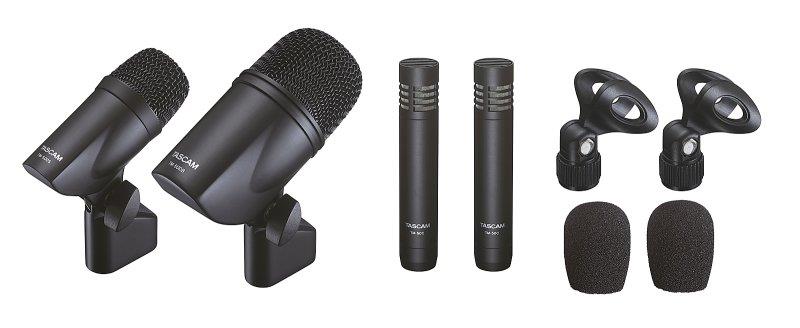

TM-Drums er et sæt bestående af fire mikrofoner specifikt designet til at opfange trommelyde, med en Tascam multi-track recorder eller en lyd-interface med DAW-software. Sættet er specielt designet til nybegyndere som ikke har råd til separate mikrofoner til hver del af trommesættet. Disse mikrofoner opfylder minimumskravene til multi-mikrofonoptagelse. TM-Drums består af en dynamisk mikrofon designet til en storetromme, en dynamisk mikrofon til en lilletromme og to kondensatormikrofoner som bruges til hi-hat, bækkener og tam-tammer.
TM-50DB Specifications
Bass drum microphone
Working principle: dynamic
Directivity pattern: unidirectional (cardioid)
Frequency response: 50 Hz – 15 kHz
Output impedance: 400 Ω, ±30 % (1 kHz)
Load impedance: Sensitivity: -55 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
Connector: 3-pin XLR, male
External dimensions (H x W x D): 118 x 59 x 115 mm
Weight: 460 g (mic body only)
Included accessory: 5/8-inch to 3/8-inch screw adapter
TM-50DS Specifications
Snare drum microphone
Working principle: Dynamic
Directivity pattern: unidirectional (cardioid)
Frequency response: 50 Hz – 14 kHz
Output impedance: 350 Ω, ±30 % (1 kHz)
Load impedance: Sensitivity: -56 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
Connector: 3-pin XLR, male
External dimensions (H x W x D): 105 x 43 x 98 mm
Weight: 330 g (mic body only)
Included accessory: 5/8-inch to 3/8-inch screw adapter
TM-50C Specifications
Overhead/cymbals microphone
Working principle: condenser (16-mm diaphragm)
Phantom power required: DC 48 V
Directivity pattern: unidirectional (cardioid)
Frequency response: 30 Hz – 18 kHz
Output impedance: 100 Ω, ±30 % (1 kHz)
Load impedance: Sensitivity: -38 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
Connector: 3-pin XLR, male
External dimensions (Ø x L): 21 x 117 mm
Weight: 85 g (mic body only)
Included accessory: 5/8-inch to 3/8-inch screw adapter
