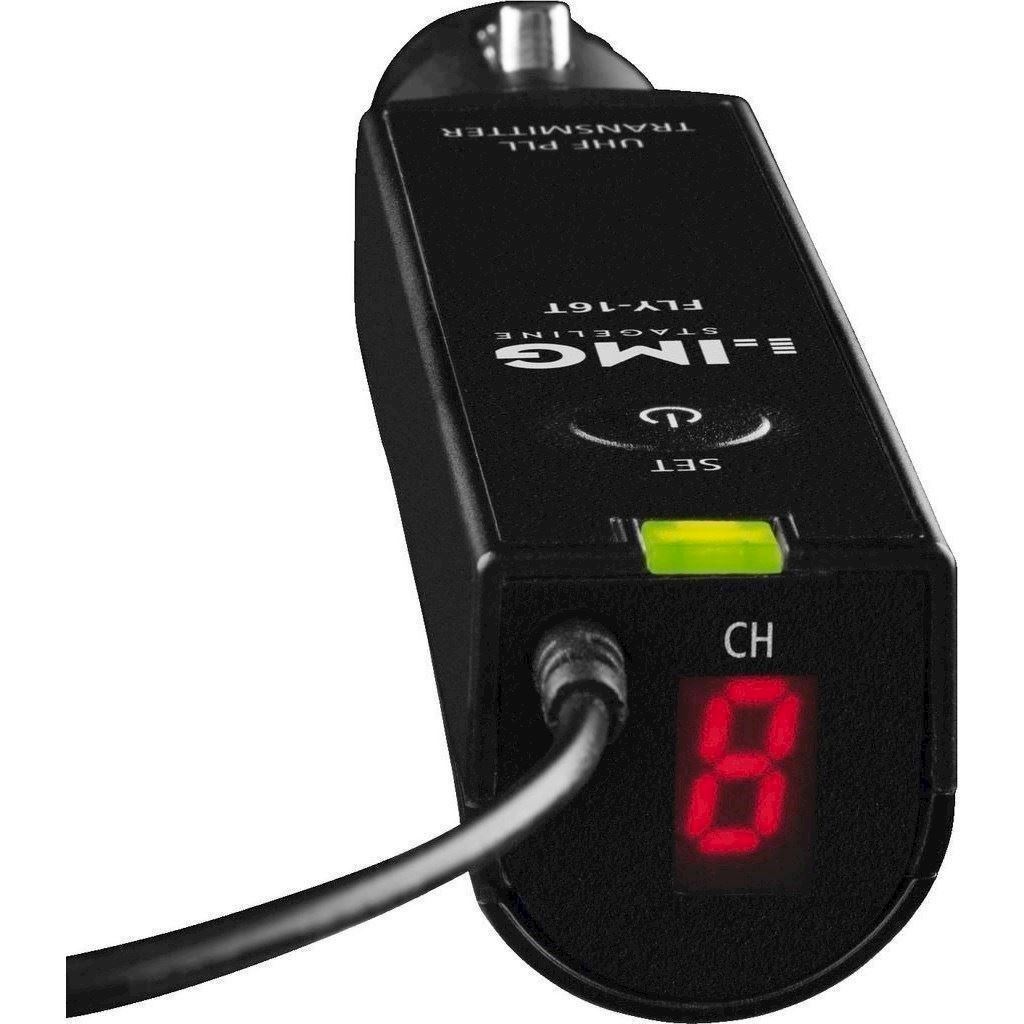

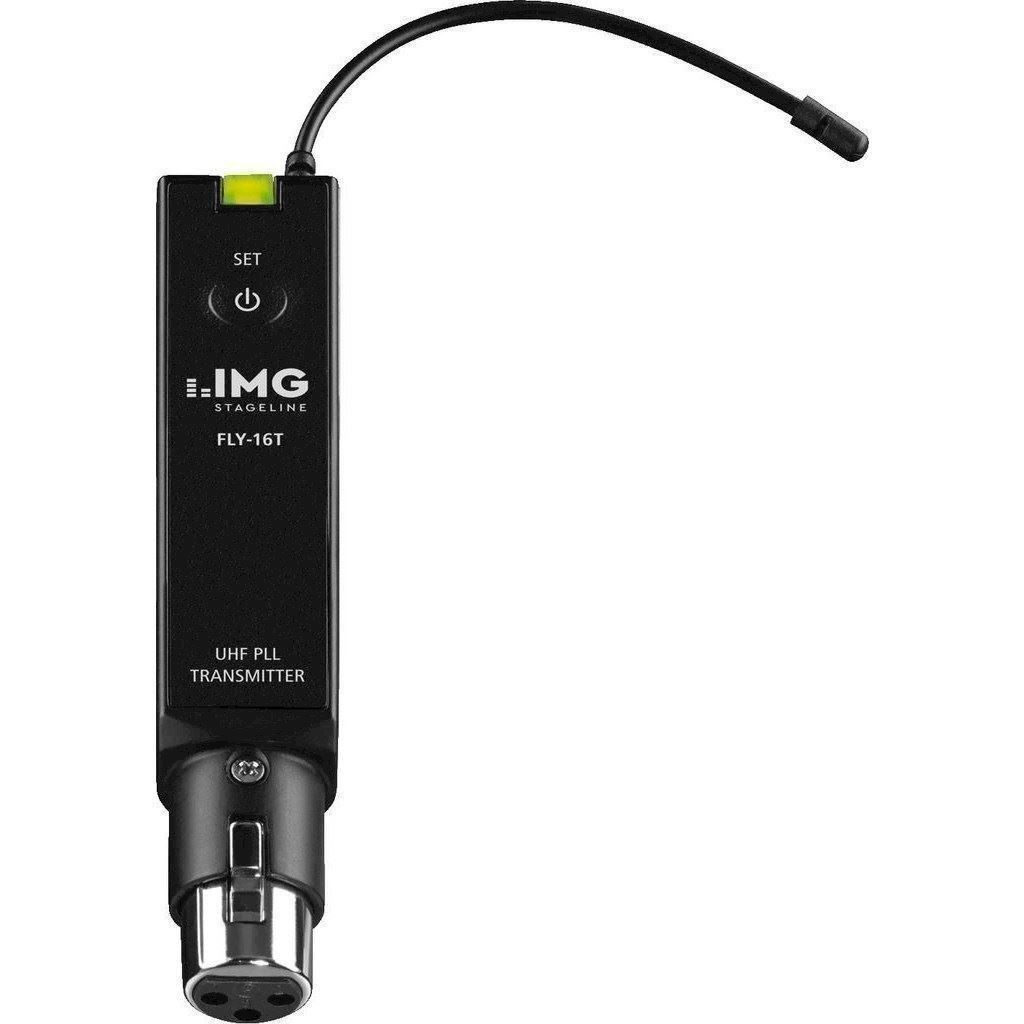

Trådløs transmitter - FLY-16T

16-channel wireless PA audio transmitter,

with UHF PLL technology.

For wireless transmission of audio signals in PA systems
Frequency range: 823-832 MHz
16 pre-programmed channels, selectable (10 intermodulation-free channels)
Audio transmission range: 30-17,000 Hz
Low-latency transmission
Indication for channel and battery status
3-pole XLR jack
Power supply via 1 x 1.5 V battery AA size (not supplied) or micro USB jack (5 V/150 mA)
Supplied with USB cable
Dimensions: 22 x 23 x 114 mm

Licence-free in the EU.

General information
Description	16-channel wireless PA audio transmitter
Carrier frequency range	823-832 MHz
Audio frequency range	30-17,000 Hz
Channels	16
THD	0.3%
Dynamic range	-
RF S/N ratio	-
Operating time	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	-
Total weight	-
Connections	-
Specifications transmitter
Transmitting power	10 mW
Operating range	approx. 90 m
Power supply transmitter	1 x 1.5 V batt. AA size, DC 5 V/150 mA via micro USB jack
Width transmitter	22 m
Height transmitter	23 mm
Depth transmitter	114 mm
Weight transmitter	31 g
Connections transmitter	3-pole XLR jack
Specifications receiver	-
Audio signal receiver	-
Power supply receiver	-
Width receiver	-
Height receiver	-
Depth receiver	-
Weight receiver	-
Connections receiver	-

Varenr.: 259580
