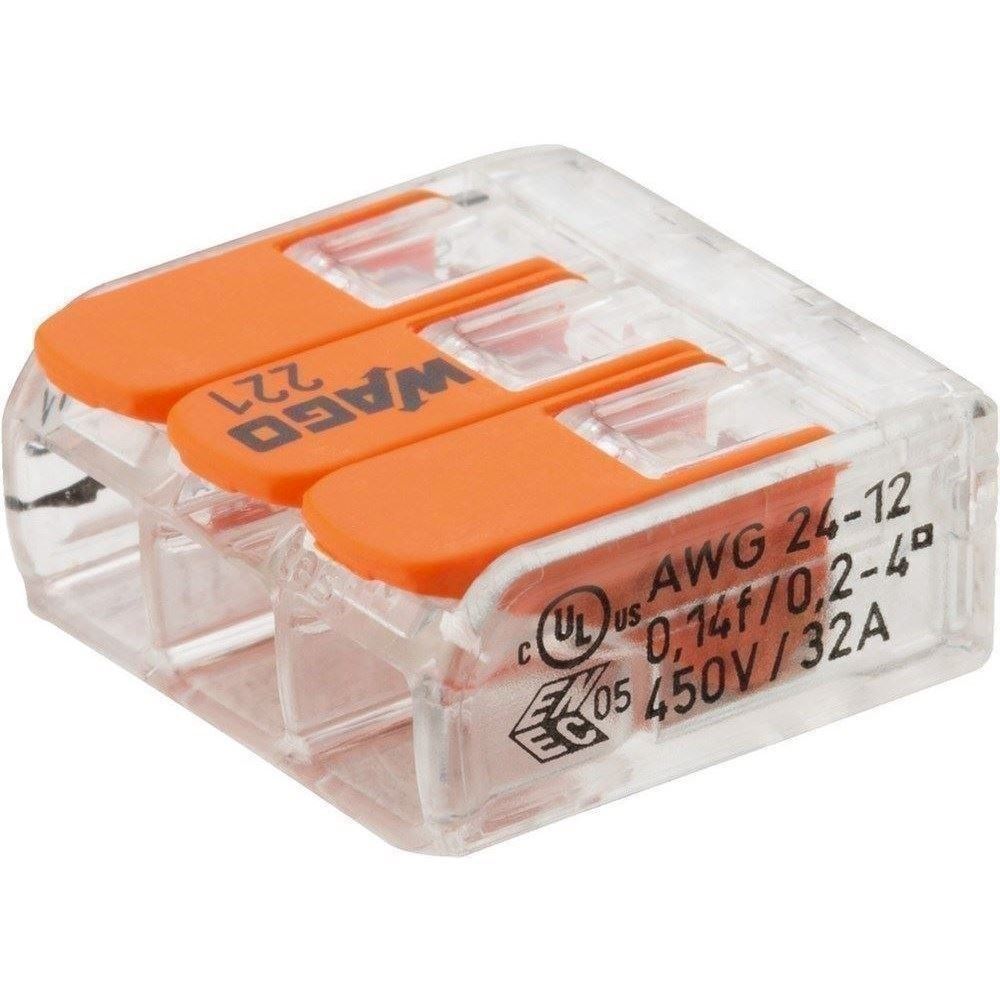

WAGO-stik - CC-143

Connecting terminal from WAGO

3-conductor terminal with operating levers
Different types of wires and cross sections from 0.14 to 4 mm² can be combined as required
Power rating: 450 V/32 A
Continuous operating temperature: up to 85 °C
Correct position of the conductor and stripping length can be visually checked due to transparent housing
Two test slots for any standard test prod
Of very compact size, thus, ideally suited for the application in confined spaces

Type	connecting terminal
Type	WAGO
Quantity	1
Features	operating levers
Colour/colour coding	transparent
Power rating	450 V/32 A
Insulating resistance	-
Dielectric strength	4 kV
Certification	UL, ABS, LR
Pole number	3
Cable inlet	AWG 24-12
Suitable cable cross section	flexible conductors: 0.14-4 mm² solid conductors: up to 0.2-4 mm²
Connection	3-conductor terminal with operating levers
Strain relief	-
Cable bending protection	-
Stereo	-
Mono	-
Switches	-
Material	-
Central fixing	-
Contact type	-
No. of contacts	-
Contact width	-
Contact distance	-
Admiss. ambient temp.	85 °C
Dimensions	18.7 x 8.3 x 18.6 mm
Diameter	-
Length	-
Weight	2.5 g
Other features	-

Varenr.: 342360
