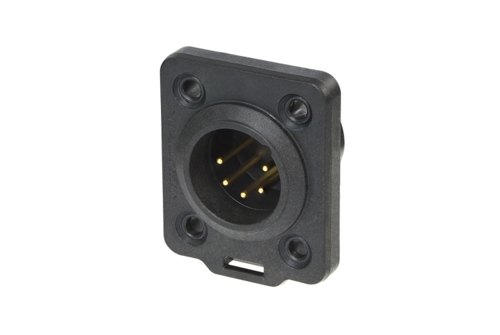

NC5MDX-TOP XLR chassis fatning han med guldkontakter, IP65 rated. Heavy duty chassis fatning han til udendørs brug. IP65 opnås ved forbindelse til TOP-kabelstik Forberedt for SCMDX-TOP gummihætte til fastmontering, når stikket ikke er i brug. NC3MDX er vandtæt uanset gummihætte og der kan ikke trænge vand igennem huset.
NC5MDX-TOP XLR chassis stik han, True Outdoor Performance
Capacitance between contacts: = 4 pF
Contact resistance: = 5 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GO (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Insertion force: = 20 N
Withdrawal force: = 20 N
Lifetime: > 5000 mating cycles
Wiring: Solder contacts
Locking device: Latch lock
Mounting direction: Front mounting
Chassis shape: D
Contact plating: 0.2 µm Au over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Stainless steel
Gasket: TPE
Shell: Polyamide (PA 6.6 30 % GR)
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 65
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
