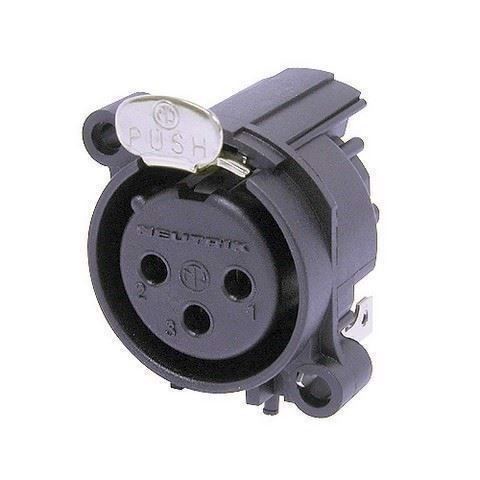

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount.
Teknisk specifikationer Capacitance between contacts≤ 4 pF Contact resistance≤ 6 mΩ (inner) Dielectric strength1,5 kVdc Insulation resistance> 2 GΩ (initial )Rated current per contact6 A Rated voltage50 V Grounding Options Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 Insertion force≤ 20 N Withdrawal force≤ 20 N Lifetime> 1000 mating cycles Wiring Horizontal PCB mount Locking device Latch lock Mounting directionrear Chassis shapeA MountingA-Screw Contact plating0.2 µm AuCo over 2 µm NiP15 (Tribor®) Contacts Bronze (CuSn6) InsertPolyamide (PA 6.6 30 % GR) Locking element Steel Ck67 FlangeBlack Plastic FlammabilityUL 94 HB Standard complianceIEC 61076-2-103 Protection classIP 40 Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80 °C
