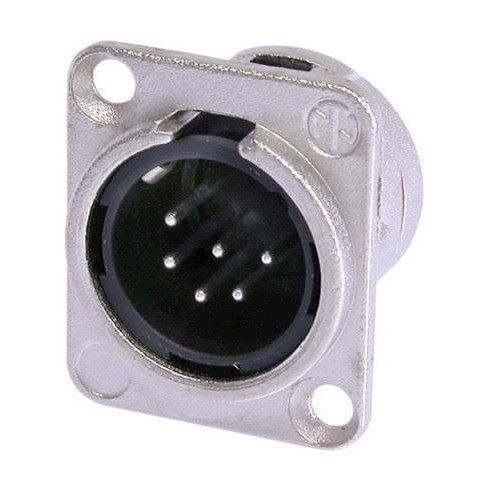

6 pole male receptacle, solder cups, Nickel housing, silver contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Teknisk specifikationer Capacitance between contacts≤ 7 pF Contact resistance≤ 5 mΩ (inner) Dielectric strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current per contact7,5 A Rated voltage50 V Insertion force≤ 20 N Withdrawal force≤ 20 N Lifetime> 1000 mating cycles Wiresize max. 1.0 mm² Wiresize max. 18 AWG Wiring Solder contacts Locking device Latch lock Mounting direction front & rear Chassis shape D Contact plating2 µm Ag over 2 µm Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking element Steel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel ApprovalsUL FlammabilityUL 94 HB Standard complianceIEC 61076-2-103 Protection classIP 40 Solderability Complies with IEC 68-2-20 Temperature range-30 °C to +80 °C
