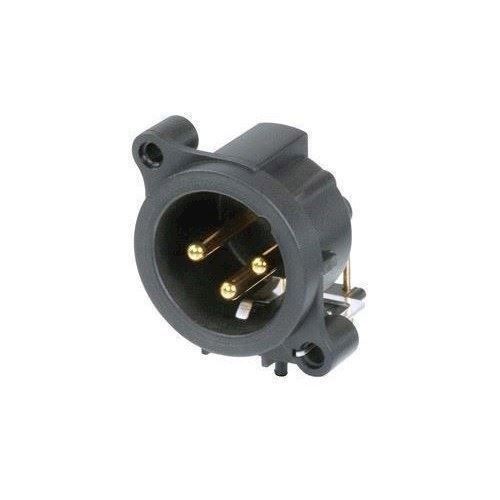

3 pole male XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. Tulip
Teknisk specifikationer
Title
NC3MAAH-1
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 6 mΩ (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 GΩ (initial)
Rated current per contact
6 A
Rated voltage
50 V
Grounding Options
Pin 1 connected direct to front panel and connector shell,
no separate ground contact
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Horizontal PCB mount
Locking device
Latch lock
Mounting direction
rear
Chassis shape
A
Mounting
A-Screw
Material
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Flange
Black Plastic
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
