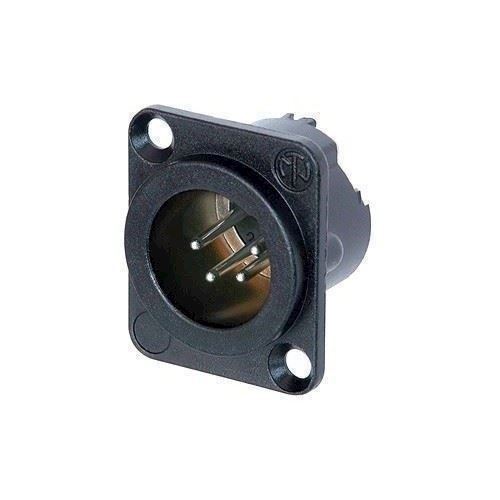

4 pole male receptacle, solder cups, black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for ma
Teknisk specifikationer
Title
NC4MD-LX-BAG
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 5 mΩ (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 GΩ (initial)
Rated current per contact
10 A
Rated voltage
50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.5 mm²
Wiresize
max. 16 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Stahl Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
