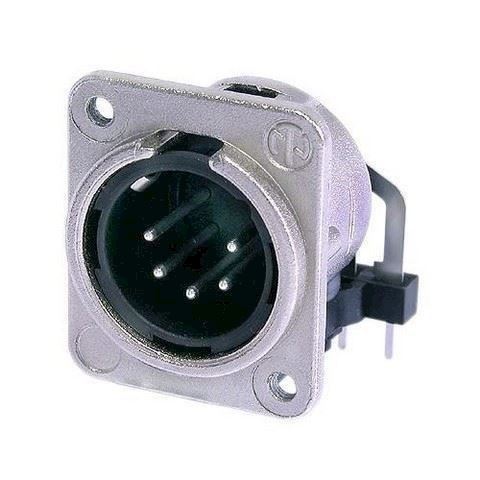

5 pole male receptacle, horizontal PCB mount, Nickel housing, silver contacts, M3 mounting holes.Universal D-size metal body XLR panel mount series. UL recognized component.
Teknisk specifikationer Capacitance
between contacts≤ 7 pF Contact resistance≤ 5 mΩ (inner) Dielectric
strength1,5 kVdc Insulation resistance> 2 GΩ (initial) Rated current
per contact7,5 ARated voltage50 V Insertion force≤ 20 N Withdrawal force≤
20 N Lifetime> 1000 mating cycles Wiresize max. 1.0 mm² Wiresize
max. 18 AWG Wiring Solder contacts Locking device Latch lock Mounting
direction front & rearChassis shape D Contact plating2 µm Ag over 2 µm
Ni Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Locking
elementSteel Ck67 Shell Zinc diecast (ZnAl4Cu1) Shell plating Black
chromium ApprovalsUL FlammabilityUL 94 HB Standard compliance IEC
61076-2-103 Protection class IP 40 Solderability Complies with IEC
68-2-20 Temperature range-30 °C to +80 °C
