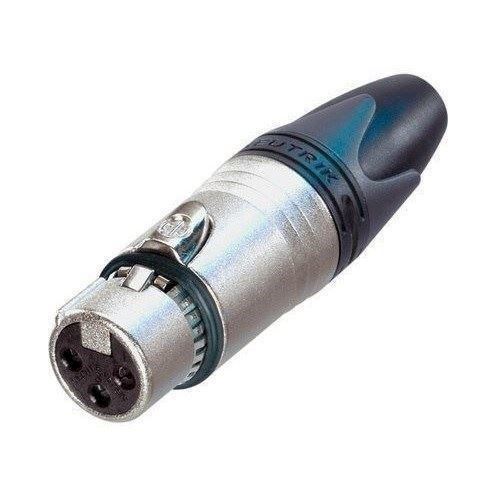

NC3FXX-EMC XLR kabel fatning hun med ekstra RF afskærmning
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 5 A
Rated voltage: < 50 V
Cable O.D.: 3.5 - 8.0 mm
Insertion force: < 50 N
Withdrawal force: < 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 0.75 mm²
Wiresize: max. 20 AWG
Wiring: Solder contacts
Locking device: Latch lock
Boot: Polyurethan
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Circumferential ground spring: Bronze (CuSn6), Ni plated
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
