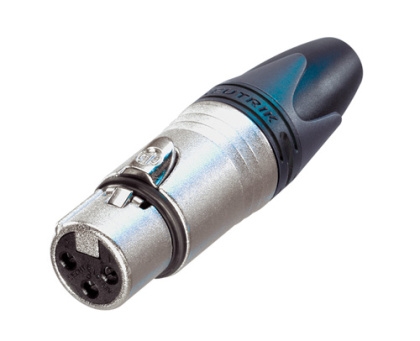

NC3FXX-HA XLR kabel fatning hun med crimp terminaler
Title NC3FXX-HA
Connection Type XLR
Gender female
Capacitance between contacts = 4 pF
Contact resistance = 3 mO
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GO (initial)
Rated current per contact 1 A
Rated voltage < 50 V
Cable O.D. 3.5 - 8.0 mm
Insertion force = 20 N
Withdrawal force = 20 N
Lifetime > 1000 mating cycles
Wiresize 0.22 - 0.34 mm²
Wiresize 24 - 22 AWG
Wiring Crimp contacts
Locking device Latch lock
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
